AR01.30-P-5800-07SX Tightening Specifications For Cylinder Head Bolts

AR01.30-P-5800-07SX Tightening Specifications For Cylinder Head Bolts

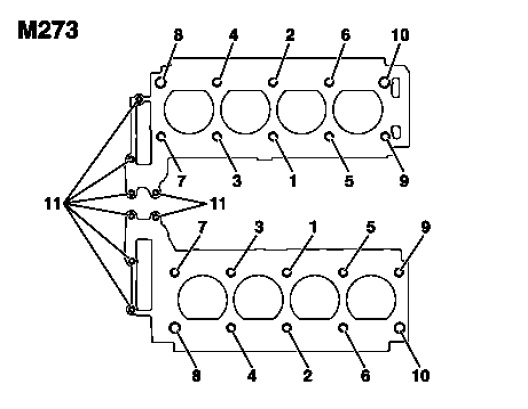

The cylinder head bolts must be tightened according to the numerical sequence shown in the diagram. Loosening of bolts takes place in reverse order.

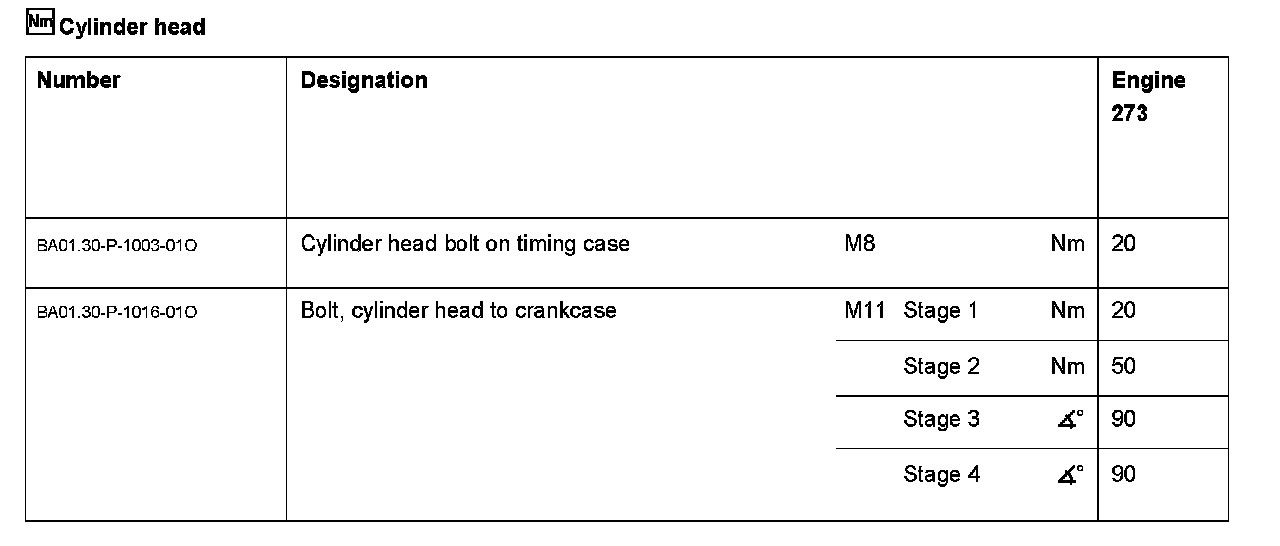

1 Tighten cylinder head bolts (1 to 10) to stage 1.
2 Tighten cylinder head bolts (1 to 10) to stage 2.
3 Tighten cylinder head bolts (1 to 10) to stage 3.
4 Tighten cylinder head bolts (1 to 10) to stage 4.
5 Tighten bolts (11).
