AR54.18-P-1261-02P Connecting Cables to Control Units and Fuse and Relay Boxes

AR54.18-P-1261-02P Connecting Cables To Control Units And Fuse And Relay Boxes

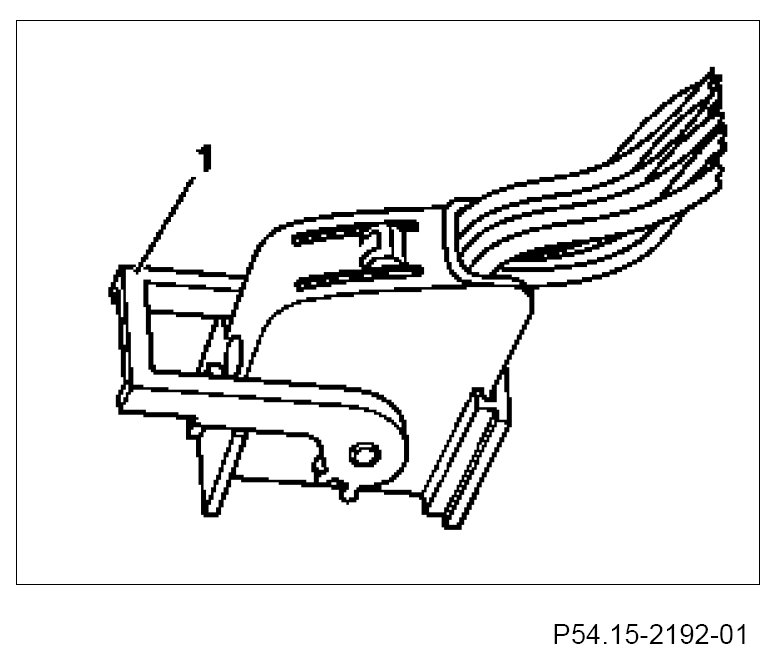

Coupling with release clip in disengaged position.
1.1 Mount coupling with release clip latched into disengaged position (1) to control unit or fuse and relay box.

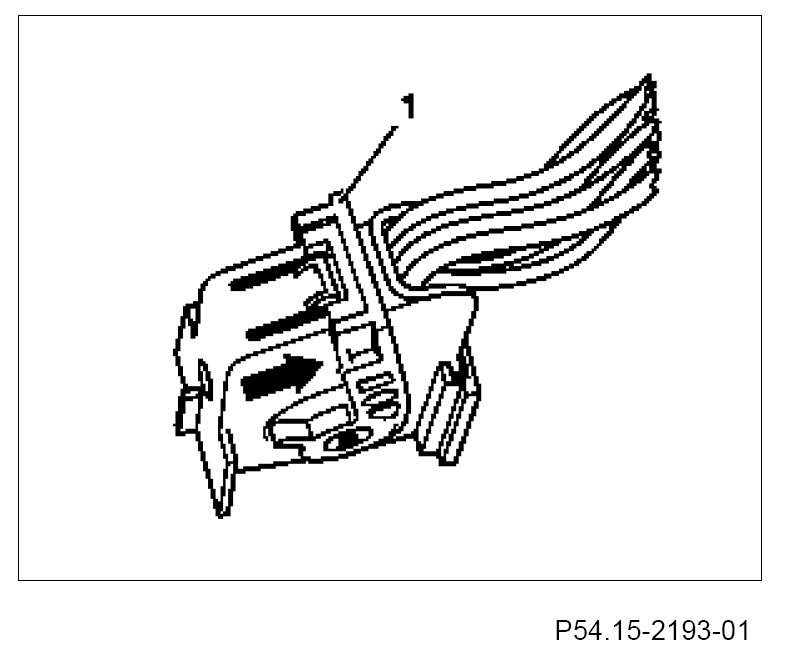

Coupling with release clip in end position.
2.1 Release unlocking catch (1) and move into end position (direction of arrow).
While doing so, press the coupling gently into the control unit or fuse and relay box.
3.1 Clip unlocking catch into end position.
Ensure that the coupling is properly seated and correctly coded.

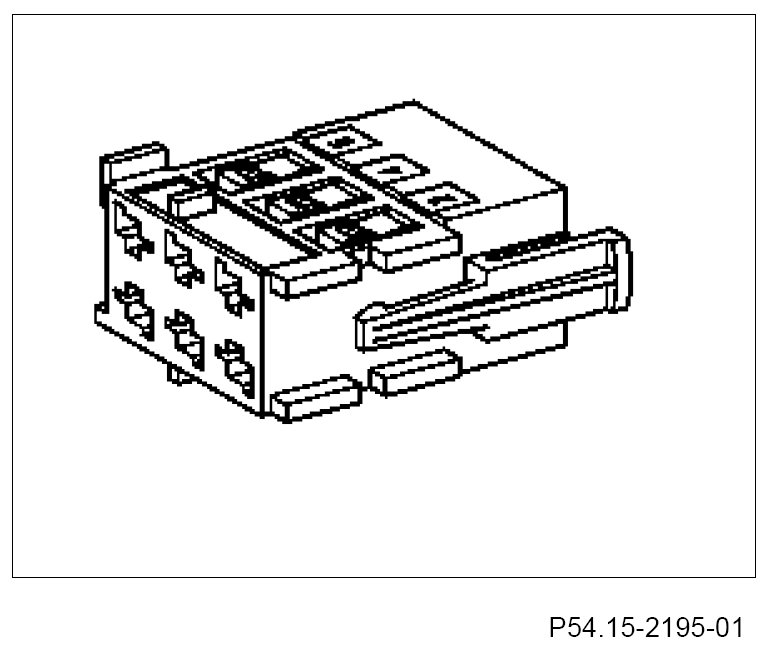

Coupling with two locks
1.2 Insert coupling into control unit or fuse and relay box.
2.2 Lock coupling in control unit or fuse and relay box.
Ensure that the coupling is properly seated and correctly coded.

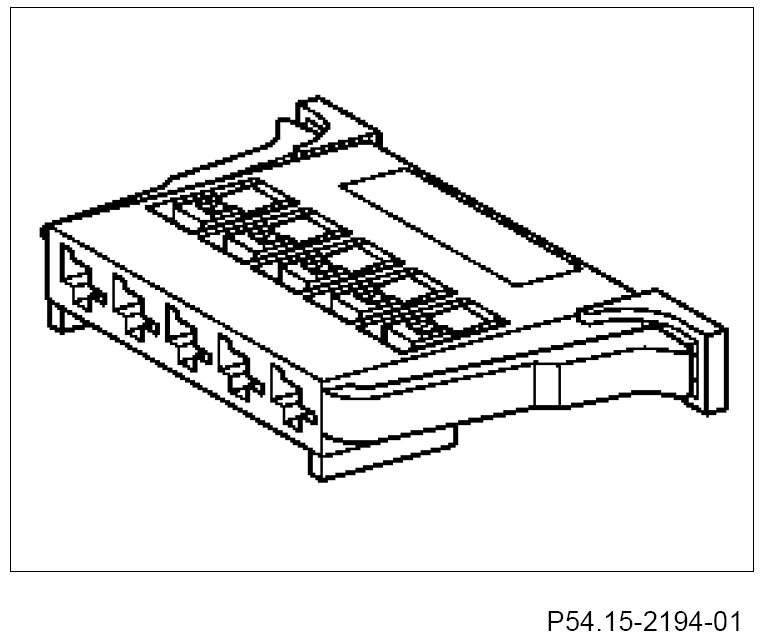

Coupling with one lock.
1.3 Insert coupling into control unit or fuse and relay box.
2.3 Lock coupling in control unit or fuse and relay box.
Ensure that the coupling is properly seated and correctly coded.

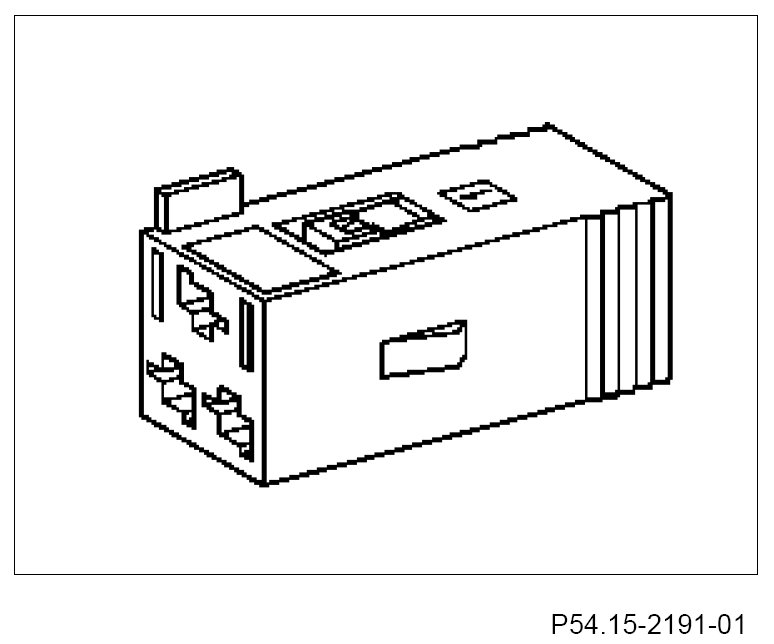

Coupling without lock.
1.4 Insert coupling into control unit or fuse and relay box.
2.4 Lock coupling in control unit or fuse and relay box.
Ensure that the coupling is properly seated and correctly coded.
