AR41.10-P-0085-01PA Measure Absolute Angle at Transmission

AR41.10-P-0085-01PA Measure absolute angle at transmission
- with Transmission 722

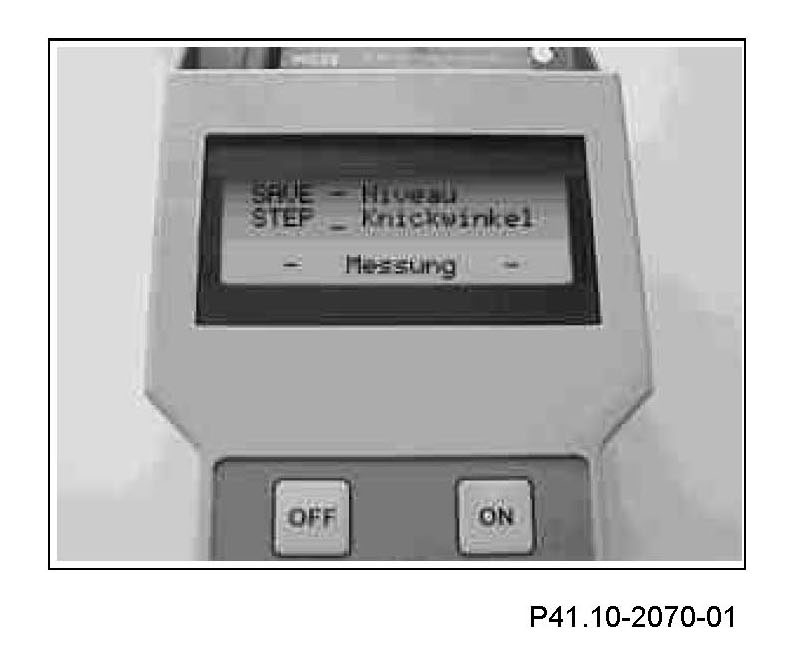

Selection Menu Screen:

Electronic drive line inclinometer
1 Press the STEP button.

"Articulation angle" "Measurement" is selected.

Selection menu screen

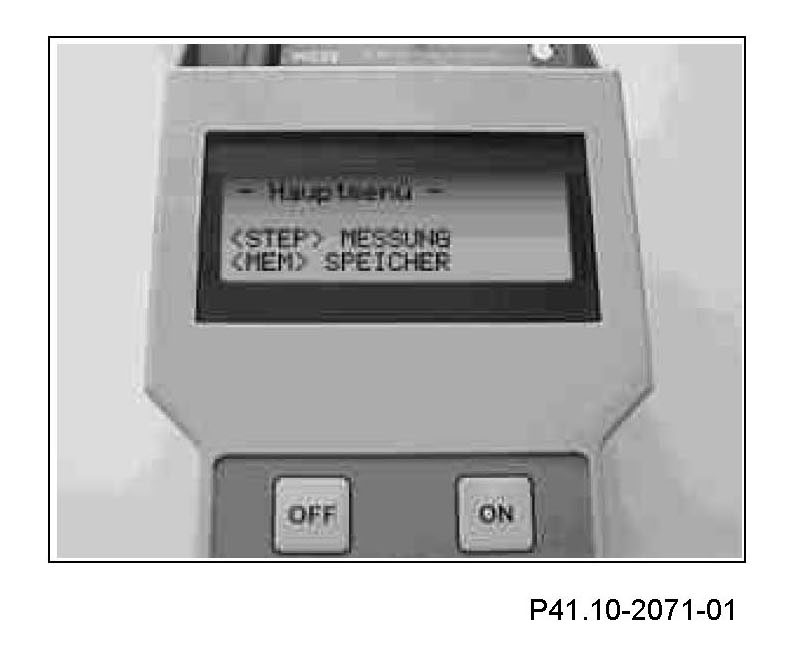

Main Menu Screen:

Measurement - Angle 1
2 Press STEP button while main menu is displayed.

"Measurement" is selected.

Main menu screen

Component Identification:

The vehicle must be on its wheels for the measurement.

Start measurement of inclination angle at transmission end.

All four angles should be measured in succession without interruption.

An angle that has already been measured can be measured a second time if required. To do this, with the Measurement menu displayed, press the STEP button repeatedly until the display indicates Ready to measure the relevant angle.

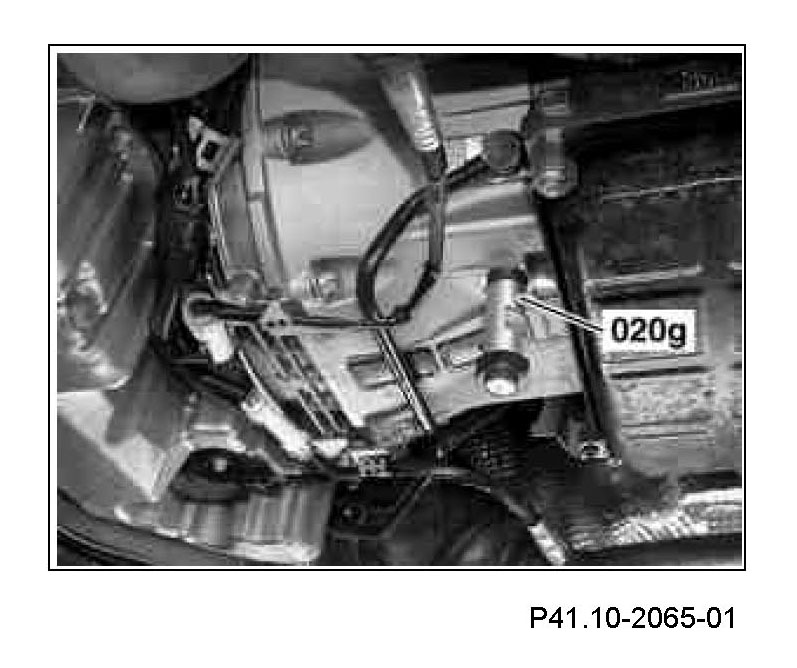

3 Clean transmission bore and surroundings (arrow) if necessary.
4 Select suitable adapter for transmission bore.

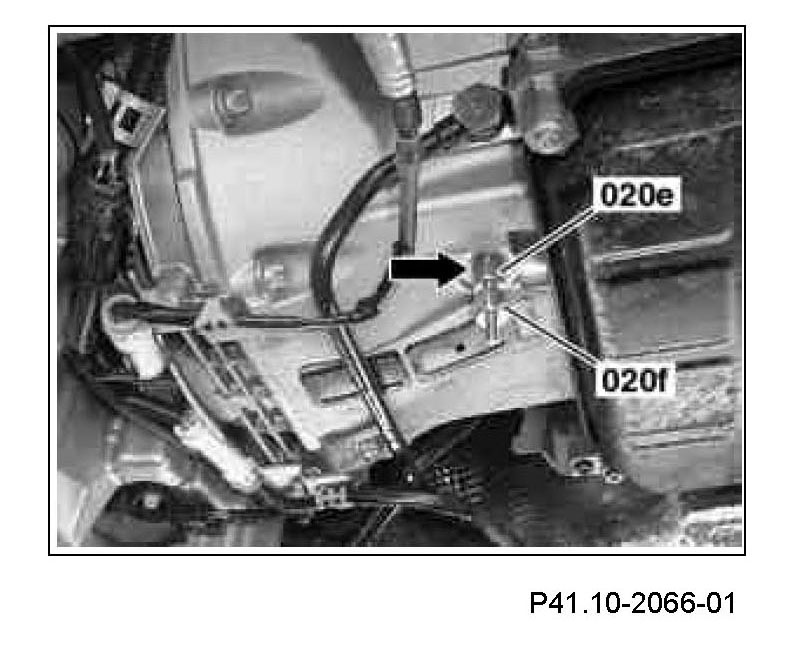

5 Remove measuring sleeve socket (020e) from adapter, insert in transmission bore and fix. Do so by turning lower threaded stud (020g) to left and tightening.

Shown on model 203, 209

Component Identification:

6 Screw measuring sleeve adapter (020g) on to measuring sleeve socket (020e) and tighten all the way to transmission by hand.

Ensure that the measuring sleeve adapter (020g) contacts the surface of the transmission exactly.

Shown on model 203, 209

Component Identification:

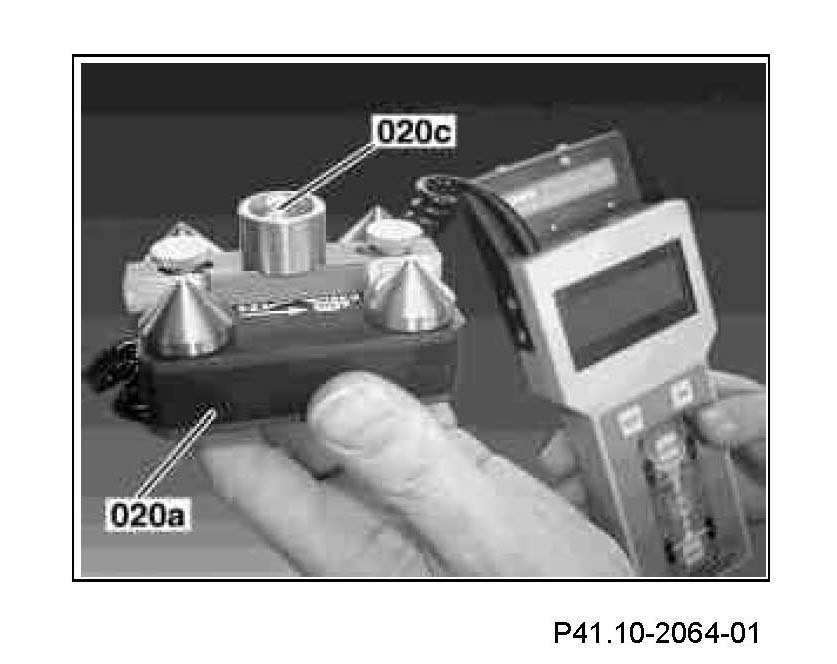

7 Mount sensor mount (020c) with the two knurled bolts centrally on the sensor (020a).

Component Identification:

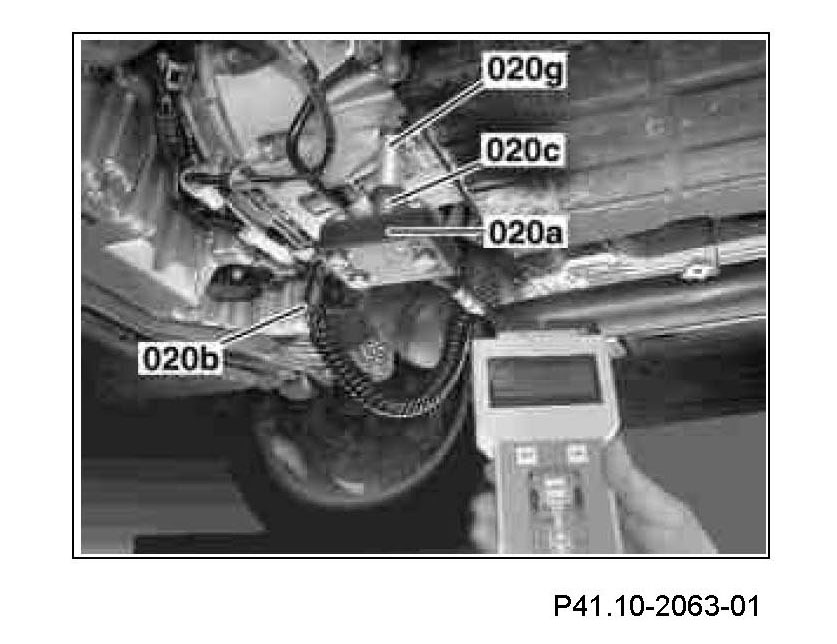

8 Fit sensor mount (020c) with sensor (020a) to measuring sleeve adapter (020g) by turning slightly to left/right (magnetic).

The spiral cable (020b) of the sensor (020a) must point in the direction of travel for each measurement, otherwise the measurement will be incorrect.

Shown on model 203, 209

Component Identification:

Show on model 230

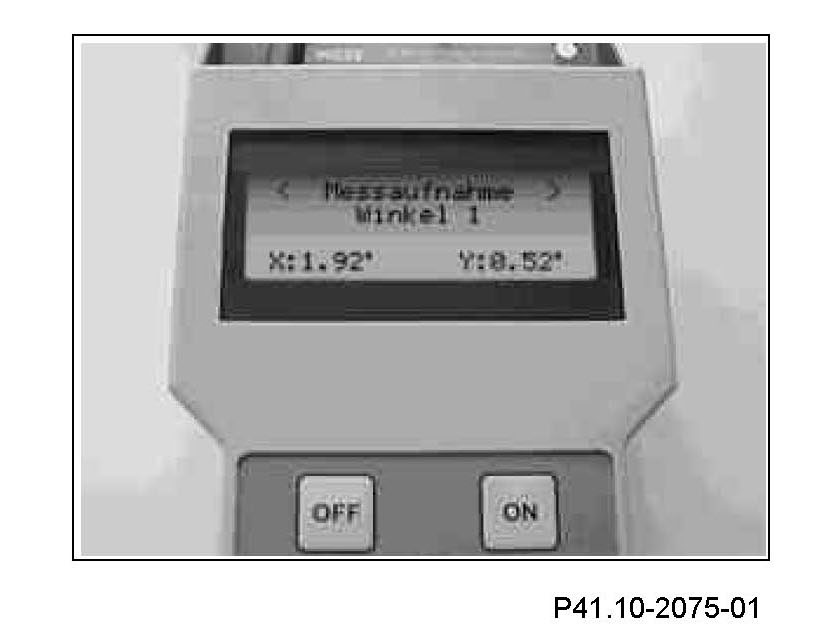

Measured Values Screen For Angle 1: Display E.G. 1.92 Degrees:

The meter is ready to take a measurement. The value measured is shown on the display.

9 Press SAVE button.

The values are saved.

Measured values screen for angle 1: display e.g. 1.92 degrees

Confirmation Screen:

A confirmation message appears briefly.

Confirmation screen

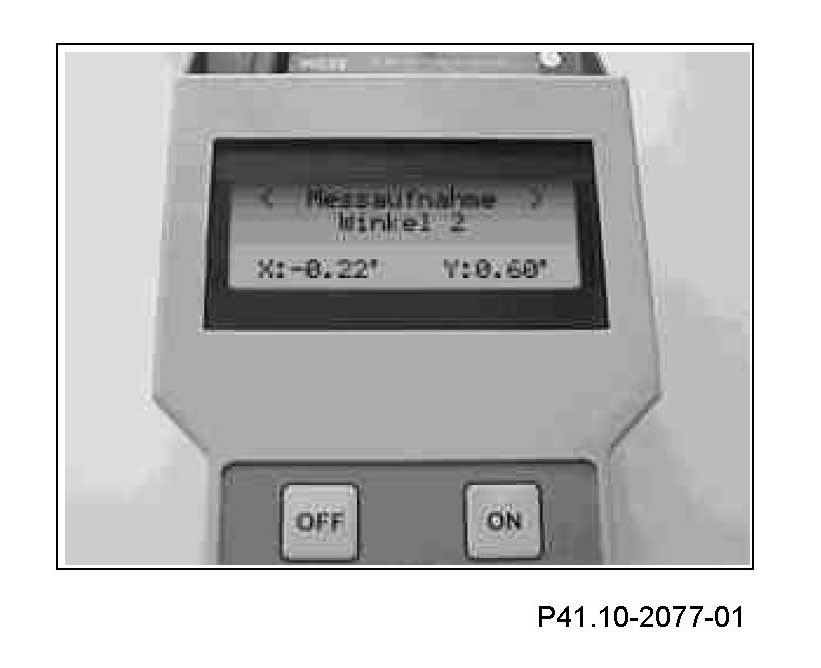

Ready Screen For Angle 2:

The display then indicates that the device is ready for the next measurement (angle 2).

10 Remove sensor (020a) from transmission.
11 Detach sensor mount (020c) from sensor (020a).
12 Unscrew measuring sleeve adapter (020g) from measuring sleeve socket (020e).
13 Unscrew measuring sleeve socket (020e) from transmission bore.

Ready screen for angle 2
