Electronic Selector Module PE27.19-U-2102BA

Electronic Selector Module Control Module PE27.19-U-2102BA
- with CODE (423) Automatic 5-speed transmission (NAG)
- with CODE (427) 7-speed automatic transmission
- control module N15/5

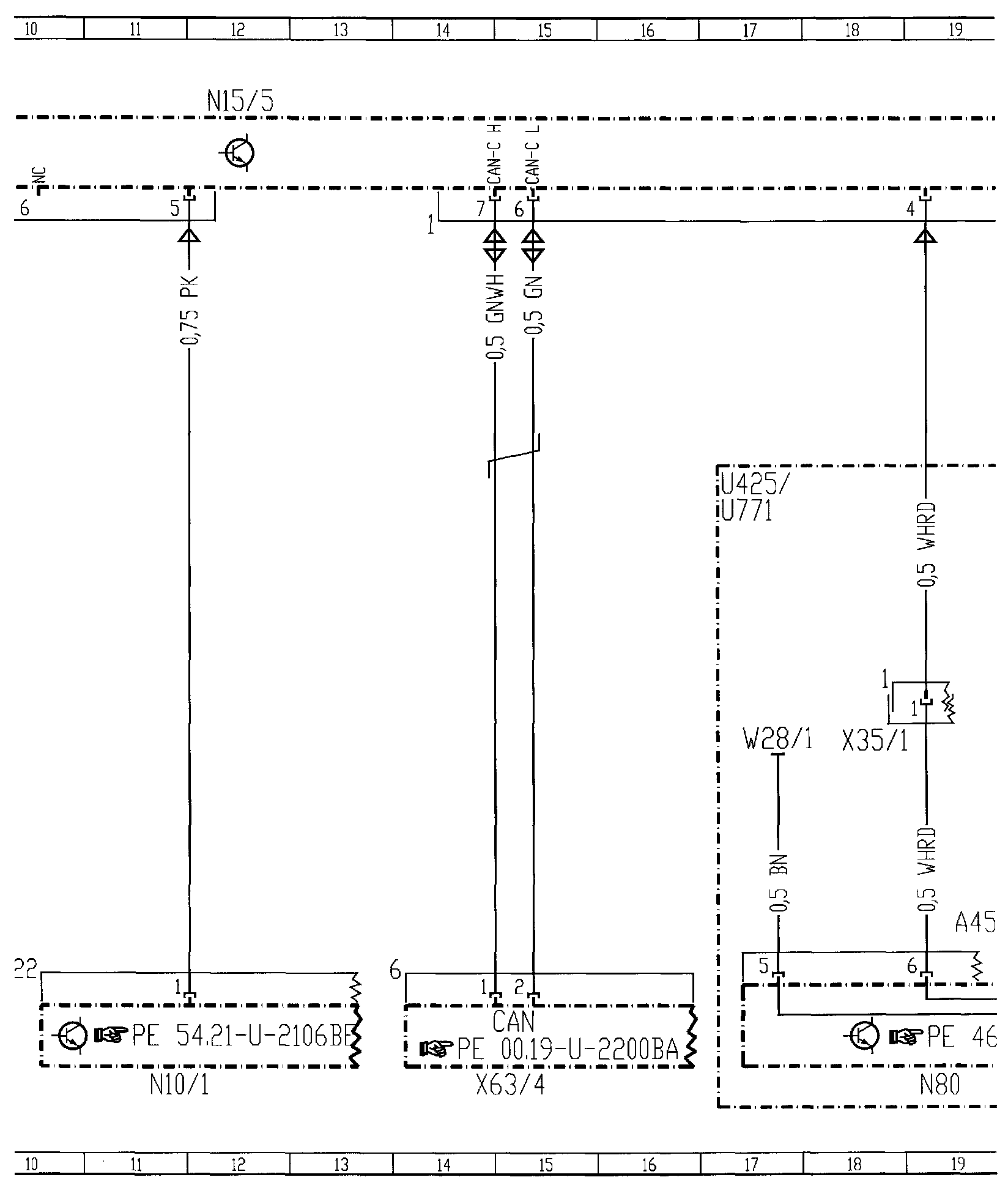

Diagram, Part 1:

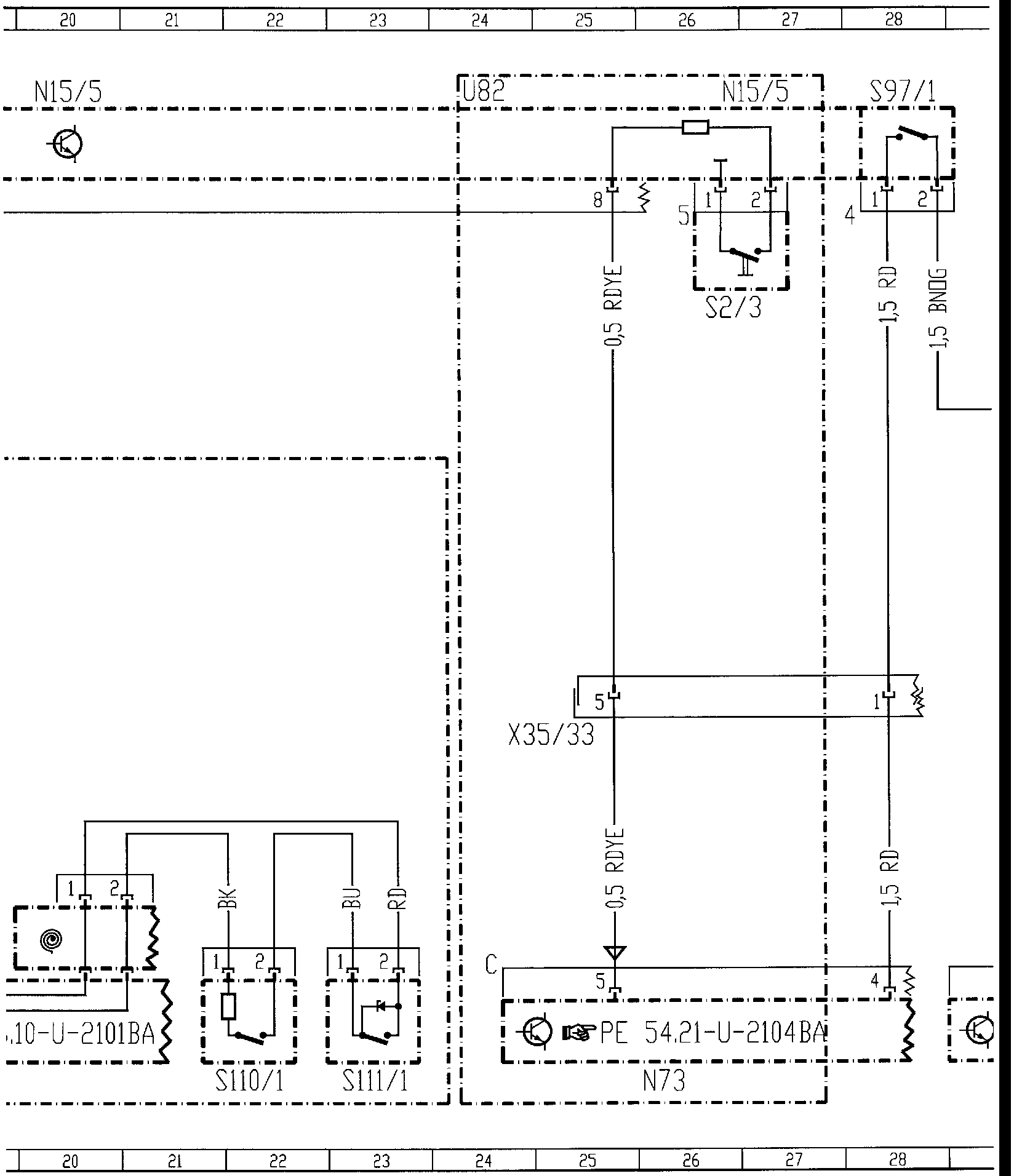

Diagram, Part 2:

Diagram, Part 3:

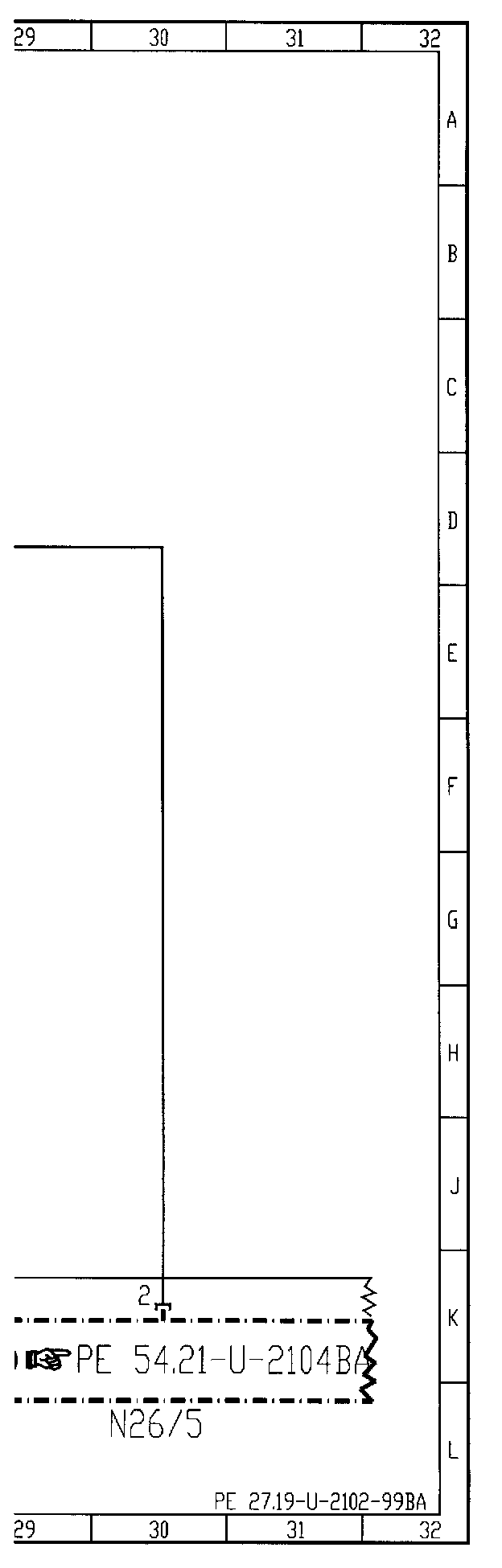

Diagram, Part 4:

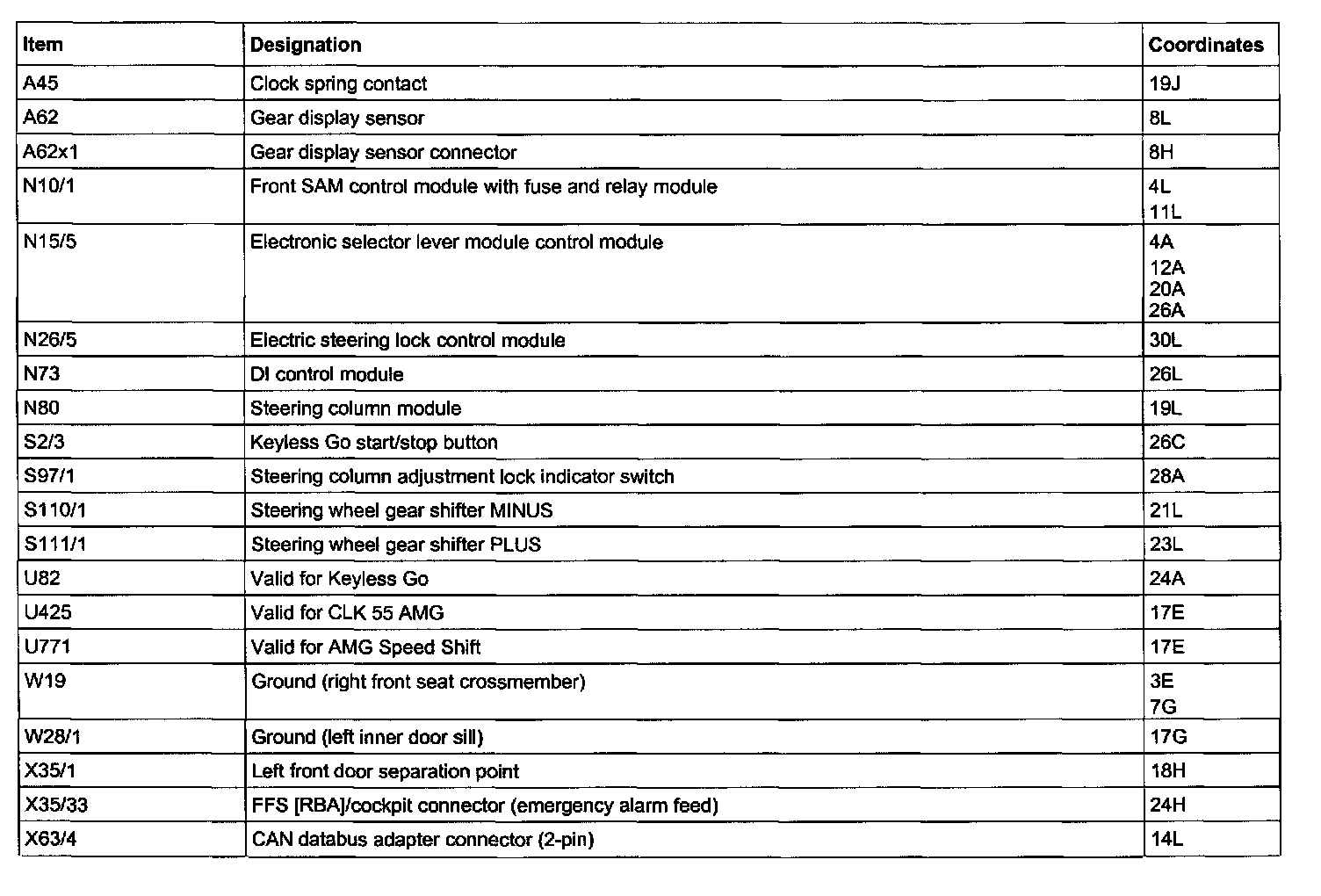

Component Description/Coordinates, A45 - X63/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
