AR67.10-P-1000-02P Replace Window Rubber Spacers

AR67.10-P-1000-02P Replace Window Rubber Spacers

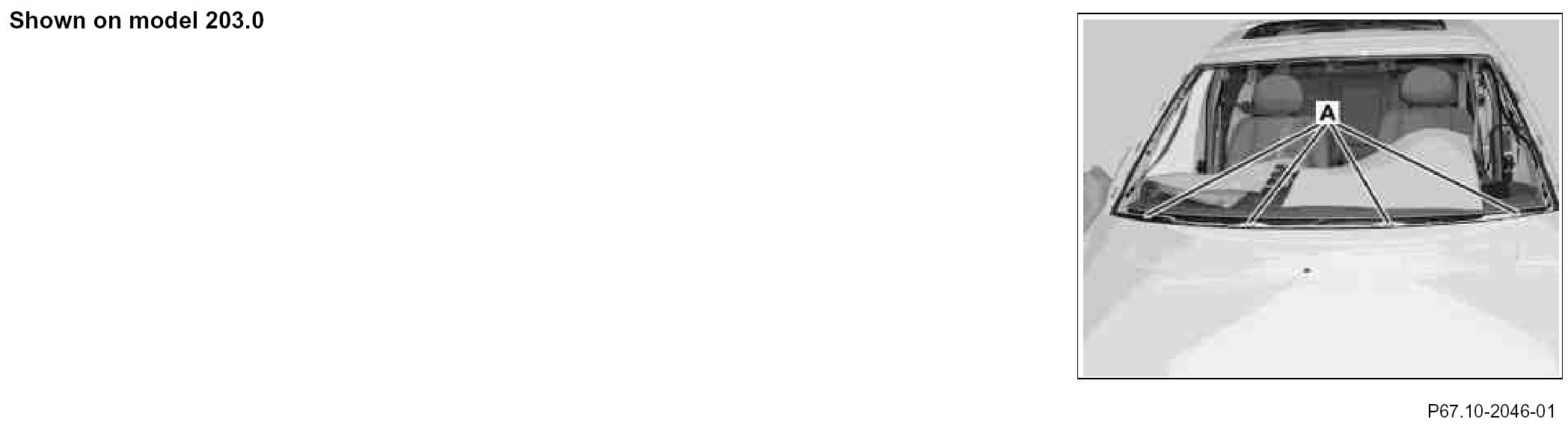

1. Glue windshield rubber spacers "A" onto elevations

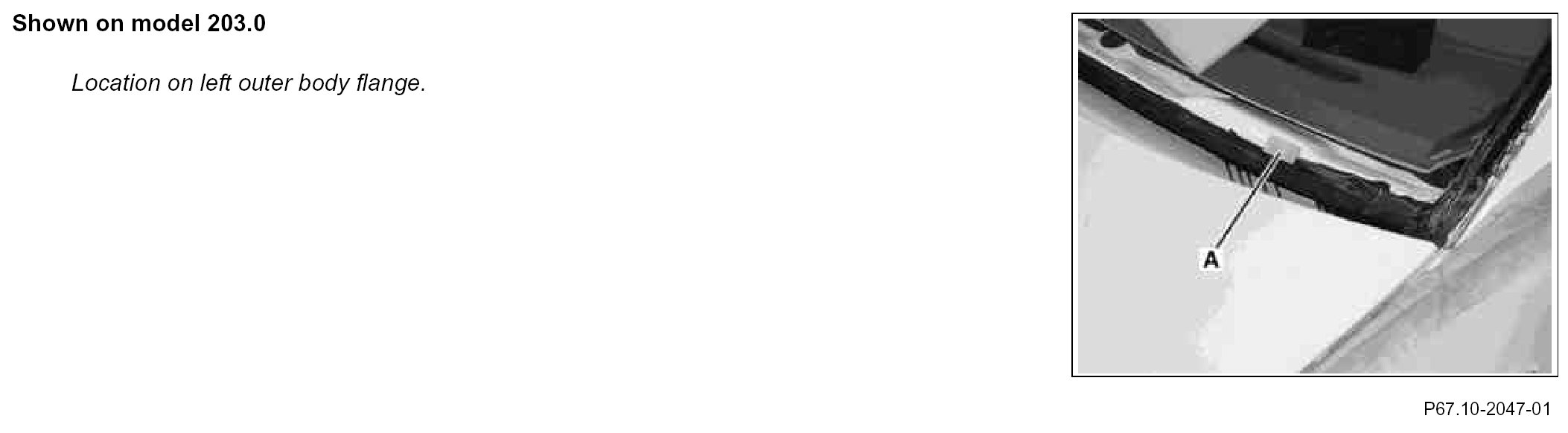

The rubber windshield spacers should be flush with the outer edge of the elevation on the outside left, glue remaining rubber windshield spacers to the center of the high spots.
