AR67.10-P-1000-04G Align Windshield In Body Opening

AR67.10-P-1000-04G Align Windshield In Body Opening

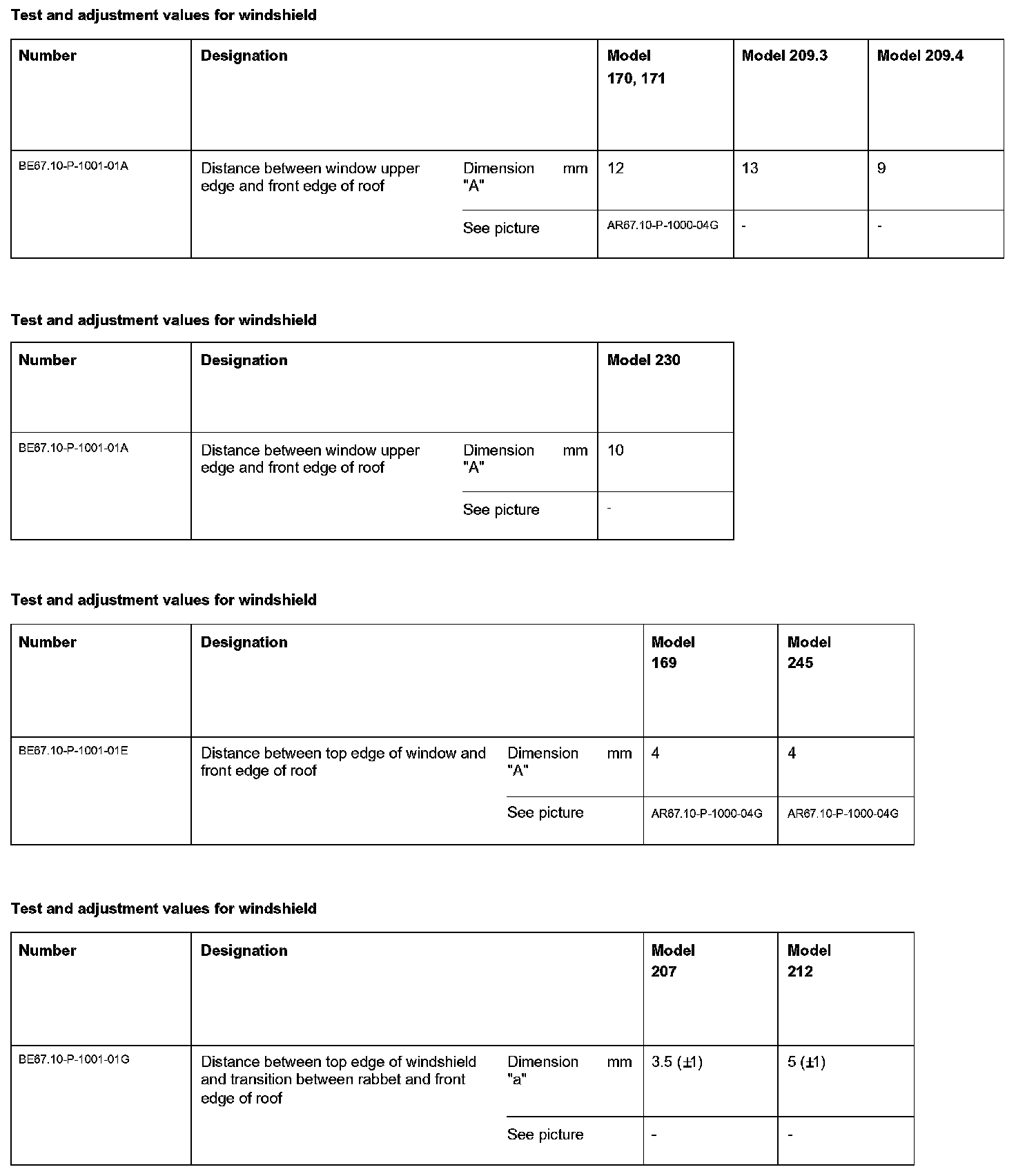

Test And Adjustment Values For Windshield:

Special Tools:

Component Identification:

Before applying glue bead (2), place windshield (1) on rubber window spacers and align in body opening.

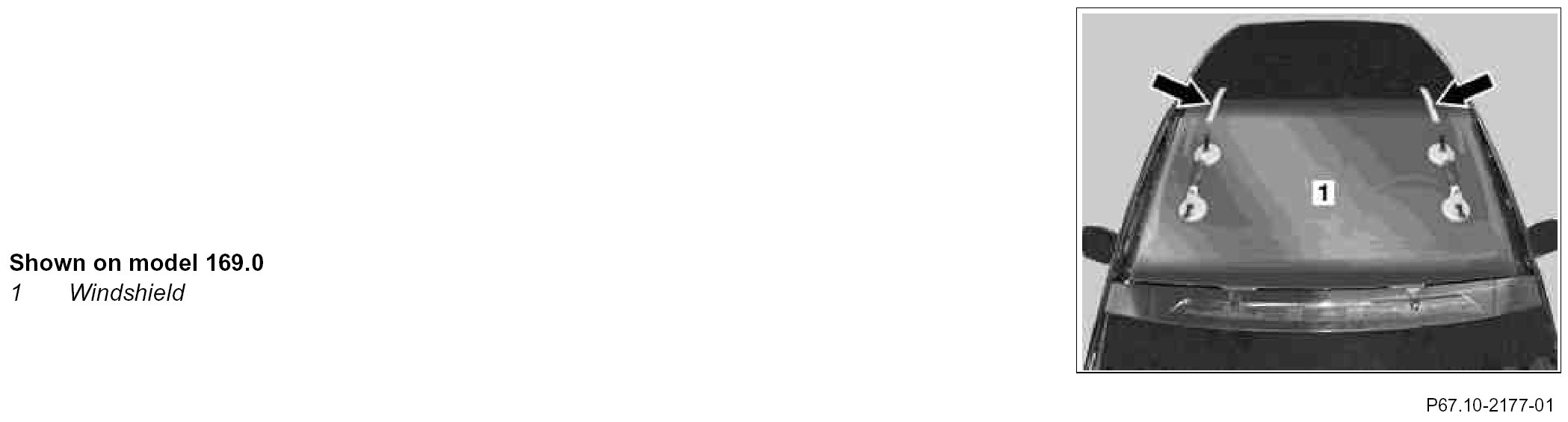

1. Install cup suction tool on windshield (1).
Suction lifting device

2. Place windshield (1) on body flange with aid of helper.
3. Align windshield (1) in body opening.

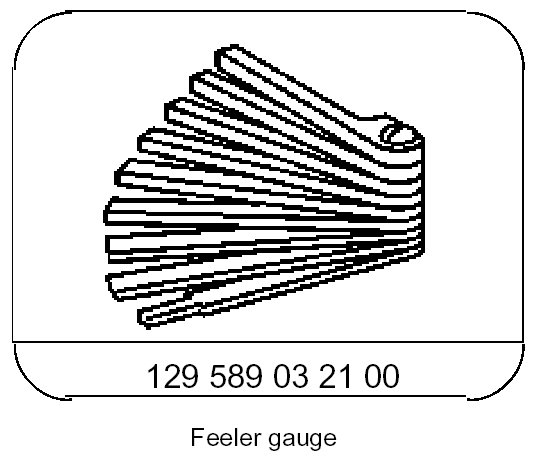

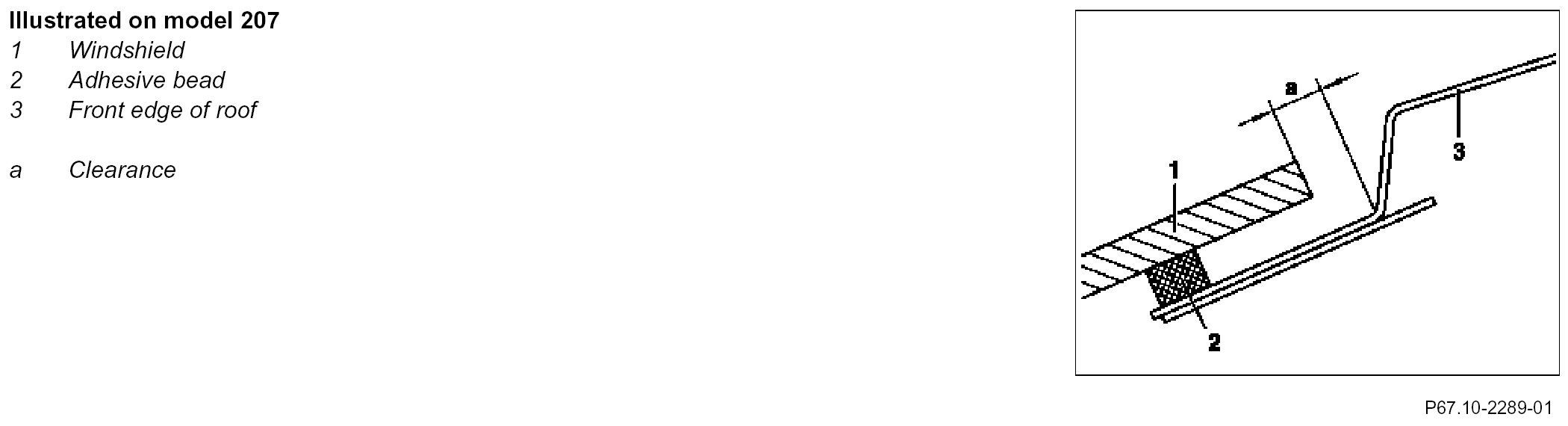

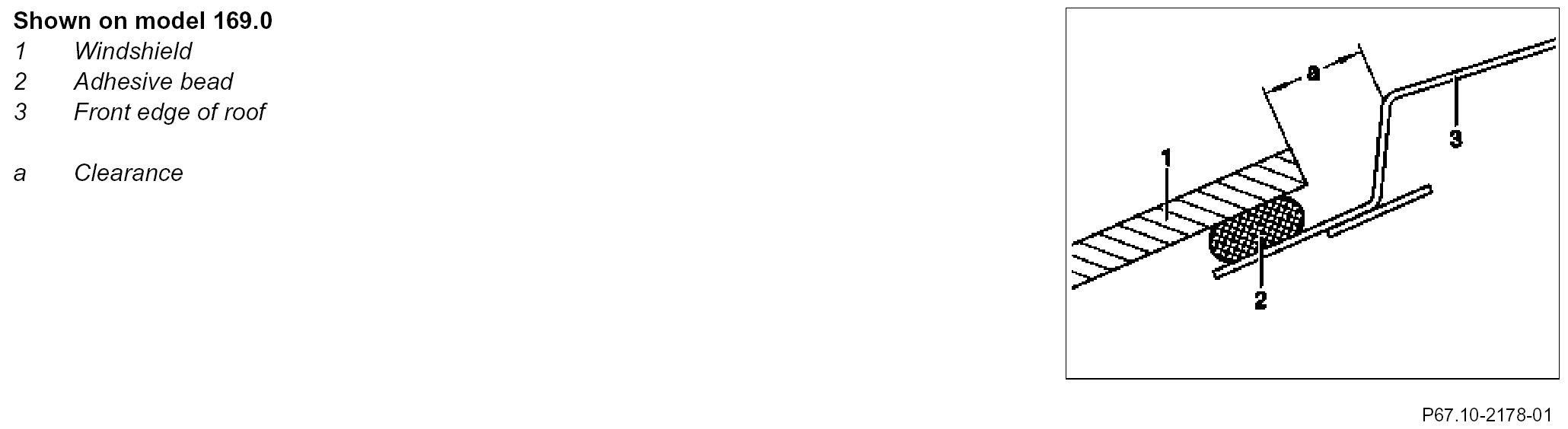

Adjust distance (a) with feeler gauge.

Component Identification:

4. Glue on strips of adhesive tape (arrows).
5. Cut through the strips of tape (arrows) at the top of the windshield (1)
Do not remove strips of adhesive tape (arrows).

6. Remove windshield (1) from vehicle.
