GF82.62-P-3005GZJ VICS Antenna Splitter, Component Description

GF82.62-P-3005GZJ VICS Antenna Splitter, Component Description
- with CODE (498) Japan version

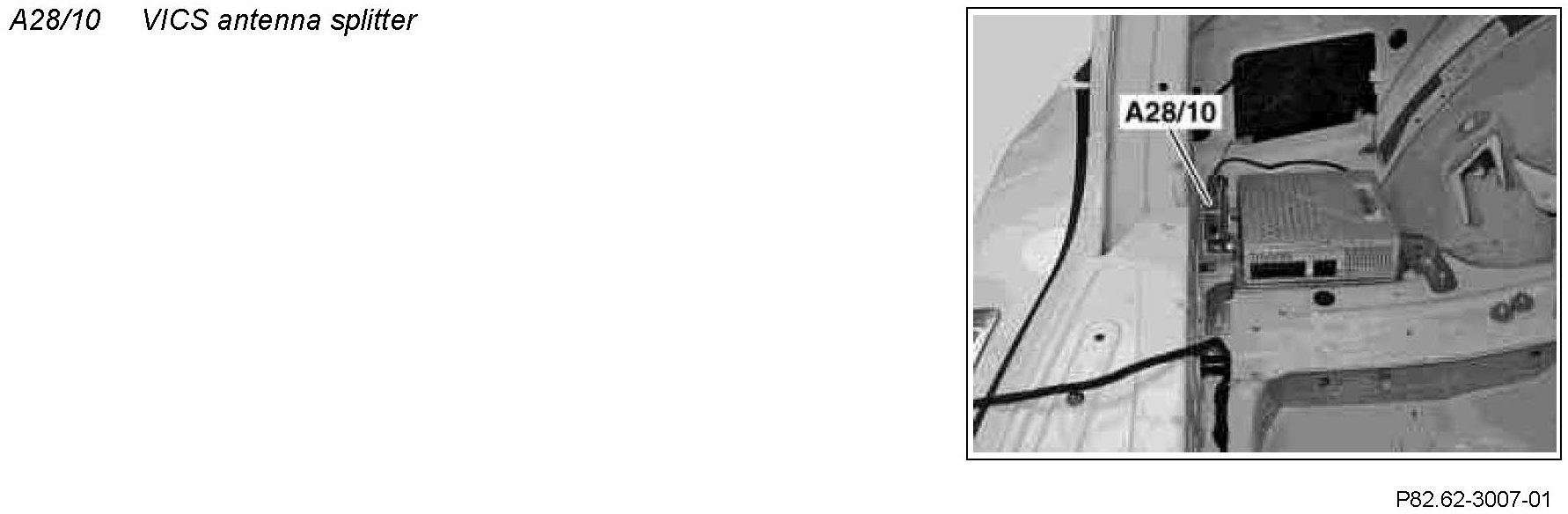

Component Identification:

Location
The VICS antenna splitter is fastened in the left rear to the bracket of the audio gateway control unit (N93/1).

Task/function
The VICS antenna splitter splits up the antenna signal (radio) coming from the roof antenna module (A2/93). The antenna signal is split up into the following parts:

^ Radio signals to the audio gateway control unit
^ VICS (Vehicle Information and Communication System) information to the COMAND operating, display and control unit (A40/3)
