Oil Pan, Engine

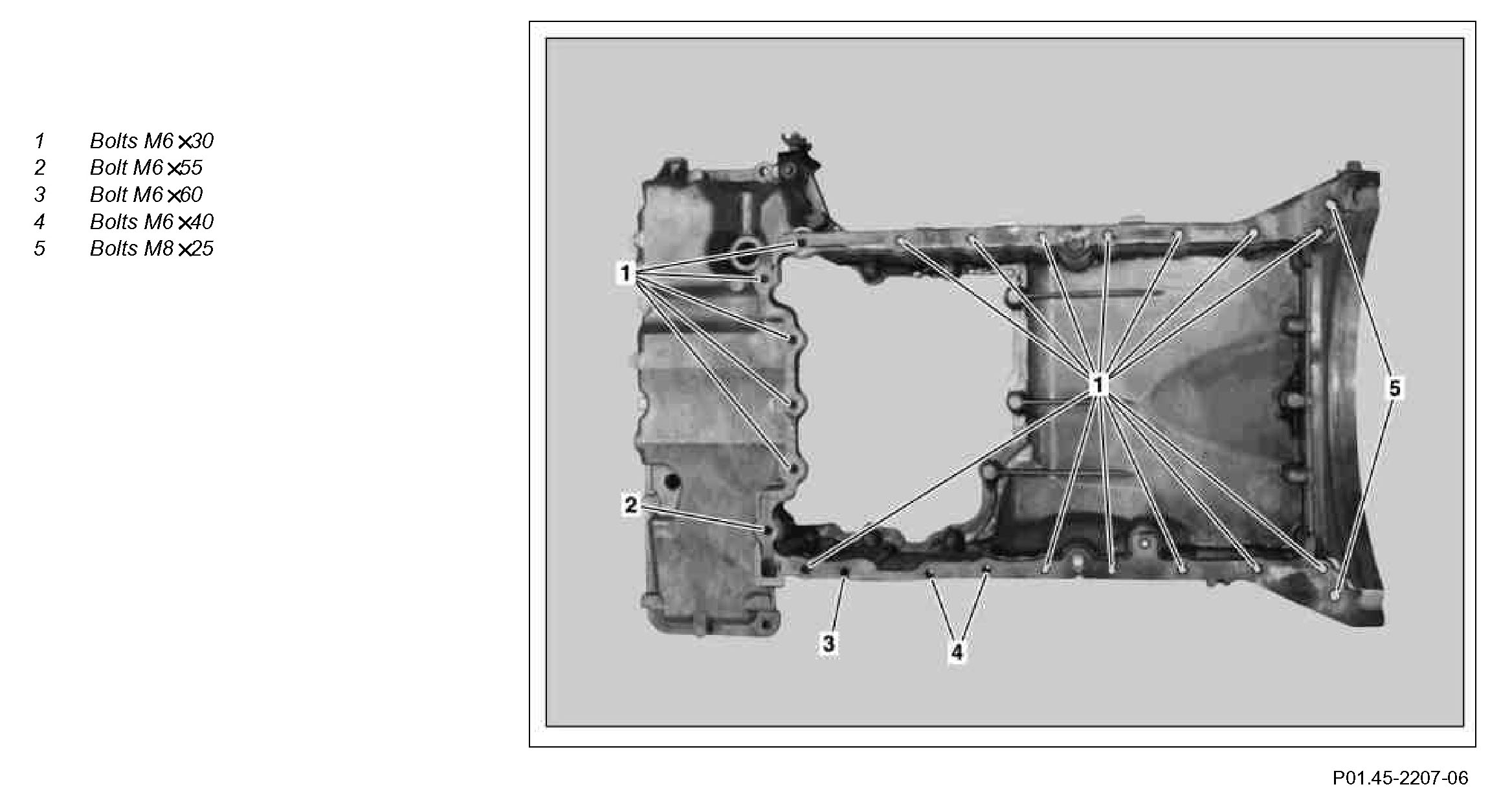

AR01.45-P-750006GZB Bolt plan for oil pan

Oil pan:




Component Identification:





Observe different bolt lengths and bolt diameters.
