GF82.70-P-0007-03RI Mobile Phone System, Registering

GF82.70-P-0007-03RI Mobile Phone System, Registering
- with CODE (528) COMAND with DVD changer
- with CODE (512) COMAND APS with DVD changer

Component Identification:

Function requirements
^ Status "Circuit 30 ON" or "Circuit 15R ON"
^ One mobile phone network is available in sufficient strength and quality
^ Mobile phone system operating error-free
^ Mobile phone and COMAND operating, display and controller unit (A40/3) switched on
^ Compatible mobile phone inserted into UPCI [UHI] cell phone holder (Universal Portable Cell Phone Interface) (A34/15), which is connected to Bluetooth module (A34/7) (comfort telephony) or Bluetooth-capable mobile phone in vehicle and authorized at the COMAND operating, display and controller unit (basic telephony)
^ Enabled Subscriber Identification Module (SIM) card inserted in mobile phone

In order to be able to operate a mobile phone in the vehicle that has Bluetooth capability and is authorized at the COMAND operating, display and controller unit, the mobile phone must support Hands Free Profile (HFP) 1.0 or 1.5. More information is available under:
- www.mercedes-benz-mobile.com

General

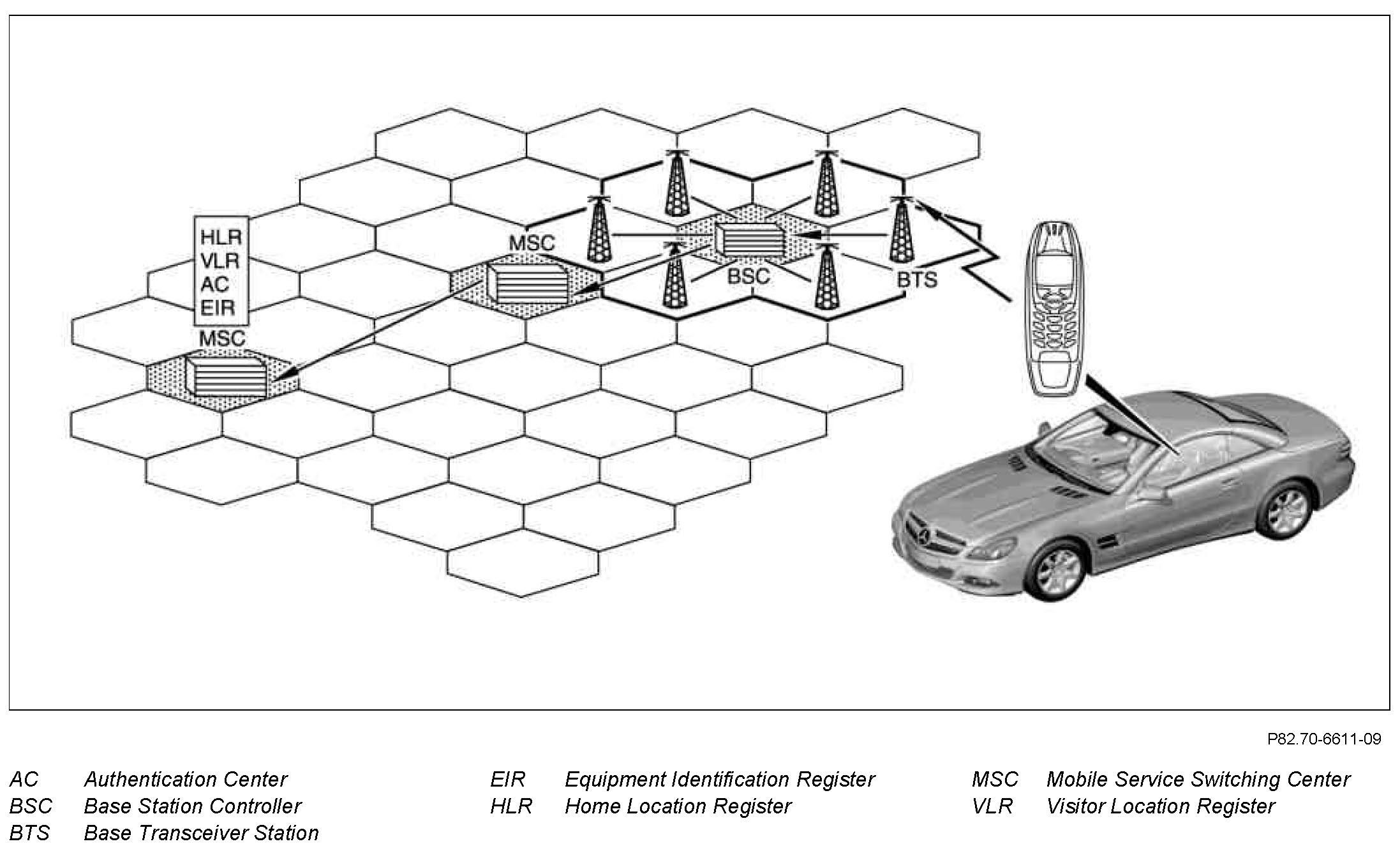

If set on the mobile phone, enter the Personal Identification Number (PIN). The mobile phone system then sets up a link to the nearest base station controller and relays the data to the mobile service switching center via the base station controller. Access authorization for the mobile telephone network is granted by the authentication center after the necessary data has been checked in the mobile service switching center.

After registering in the mobile telephone network, the name of the mobile telephone network is shown on the display of the mobile phone in vehicles except code (494) USA version or code (389) Mobile phone preinstallation with universal interface, USA/Canada. If the nearest mobile service switching center is not the one in which the user was entered in the home location register when the user's cellular mobile telephone was logged in, the user is registered there in the visitor location register. The mobile service switching center then establishes contact with the mobile service switching center, in which the user is registered as a mobile service user in the home location register, checks the necessary data, and grants access authorization to the mobile telephone network. The mobile service switching center therefore automatically receives information about the location of the subscriber and can route the incoming telephone calls to the user for as long as he/ she is logged into the mobile telephone network. A location change is updated in the mobile service switching center.
