Initial Inspection and Diagnostic Overview

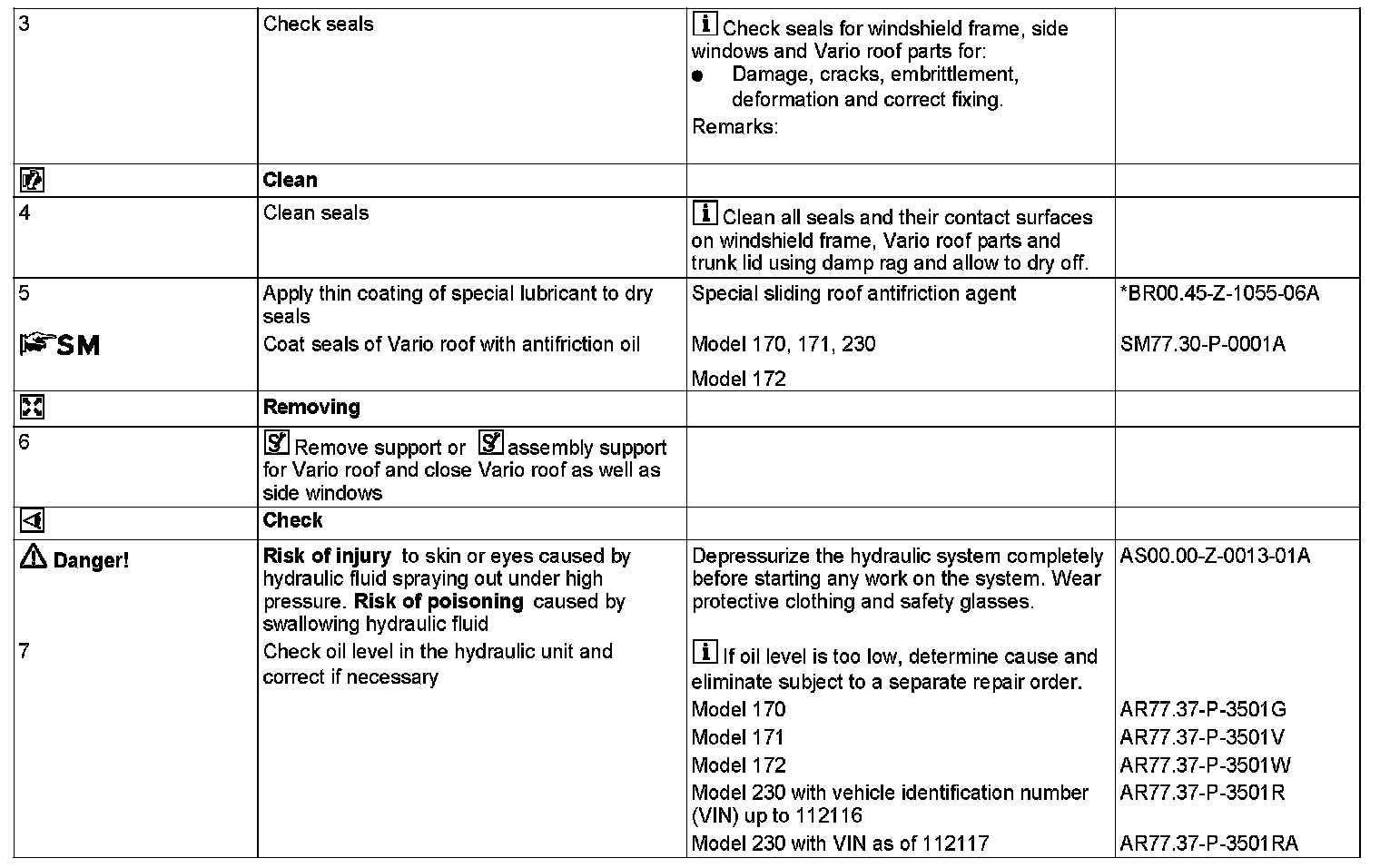

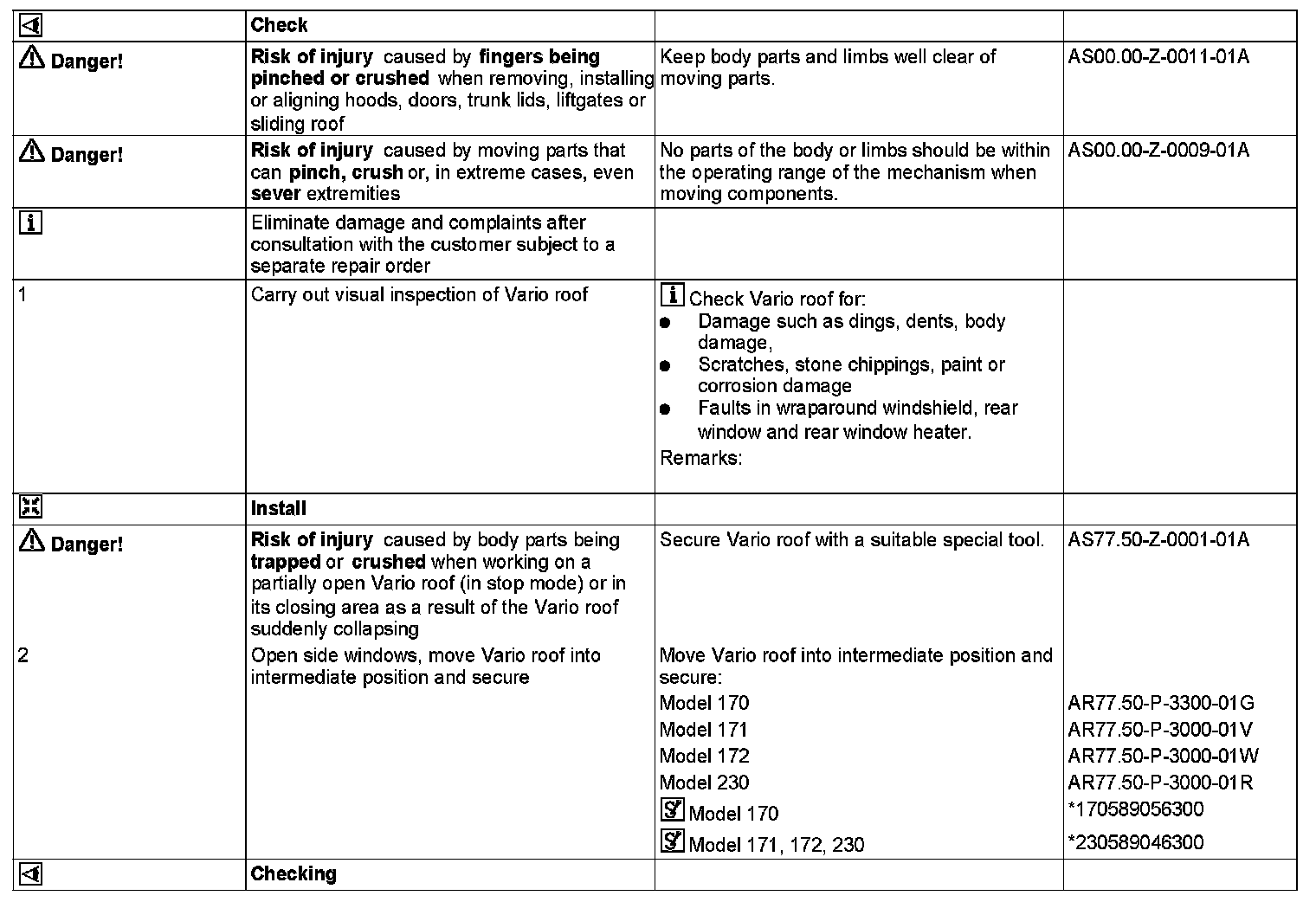

AP00.70-P-1002B Carry Out Convertible Check, Roadster Check
- MODEL 170, 171, 172
- MODEL 230
- except CODE (P99) "AMG Black Series" special model

Show on model 230

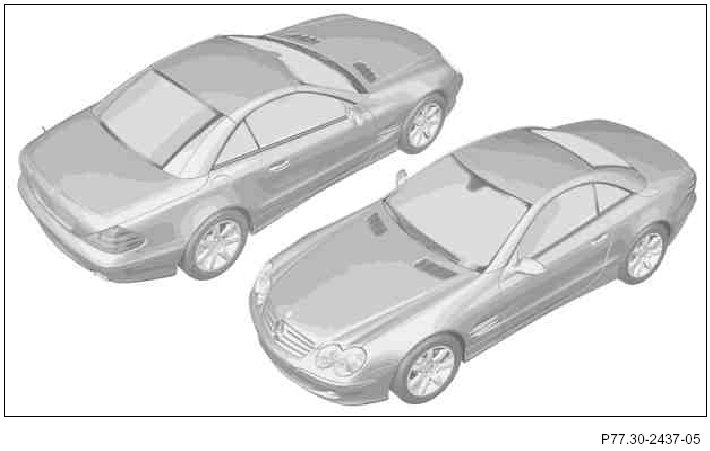

Mark damage with the following letters at the corresponding point in the picture.







O Scratches, stone chip, paint damage or corrosion damage
W Ding, dent, body damage
X Damage to windows or seal

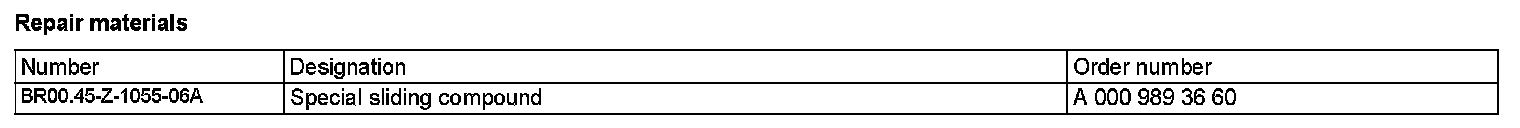

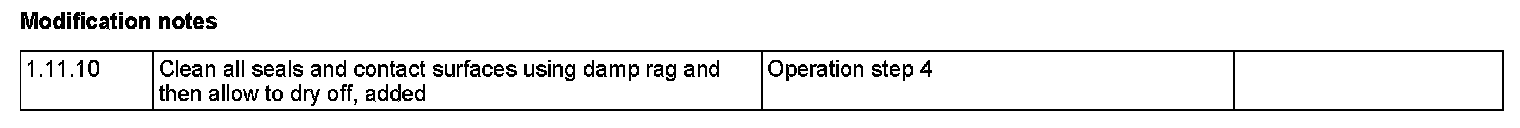

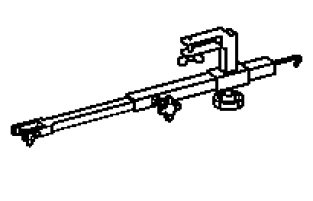

230 589 04 63 00, Support







170 589 05 63 00, Assembly support for Vario roof
