II - Noises In Rear Window Stop Area on C-Pillar

II. Noises in rear window stop area on C-pillar

Cause:

Contact pressure of stops.

Procedure:

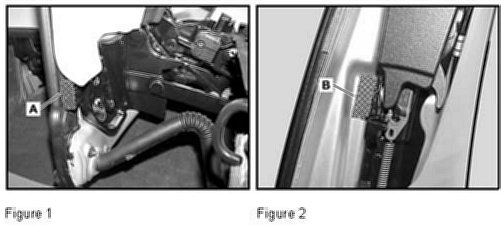

Check setting of stops (A-Figure 1, B-Figure 2).

Noises in area of stops for rear window at top (B-Figure 2) or at bottom (A-Figure 1) at C-pillar.

1. Checking adjustment of rear window on Vario roof, if necessary adjusting (See WIS-document AR67.20-P-3000-06R)

2. Grease stops (A-Figure 1, B-Figure 2). Use Special Sliding Compound.
