III - Noises In Area of Eccentric Lock on C-Pillar

III. Noises in area of eccentric lock on C-pillar

Cause 1:








Alignment of eccentric (C-Figure 4).

Procedure:

Align lock at C-pillar.

Wind noises in middle of Vario roof.

Cause 2:

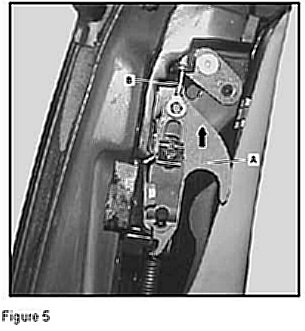

Alignment of Bowden cable (B-Figure 5).

Procedure:

Set Bowden cable (B-Figure 5) for lock (A-Figure 5) at C-pillar.

Snapping noises in area of lock when opening Vario roof.
