AH01.30-P-1000-02D Notes on Application of Sealing Compound to Front Cover at Cylinder Head

AH01.30-P-1000-02D Notes on application of sealing compound to front cover at cylinder head

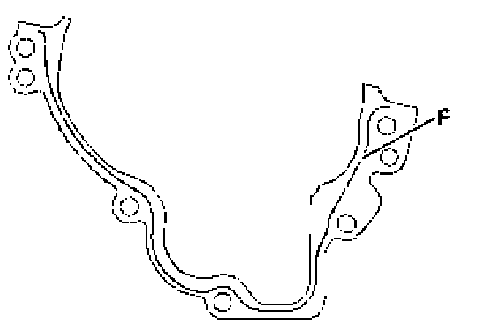

Application of sealing compound to front cover at left cylinder head
The line (F) marks the application of the sealing compound.
The sealant must be applied only to the specified surfaces with a bead of 2.0 mm 0.5 mm.
The sealing compound must be applied within 10 minutes The sealing compound bead must not be spread. Only the approved sealing compound must be used.
