AR05.10-P-7800-02VA Installing Chain Tensioner

AR05.10-P-7800-02VA Installing chain tensioner
- M24 1, 5

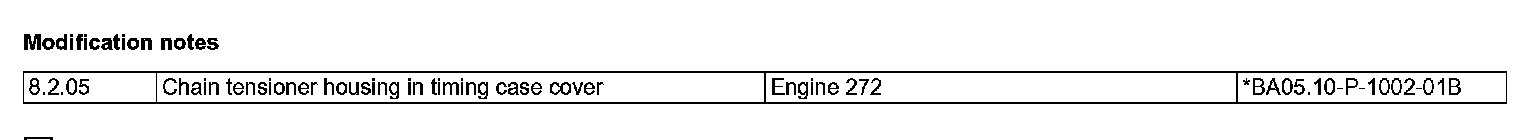

Modification notes:

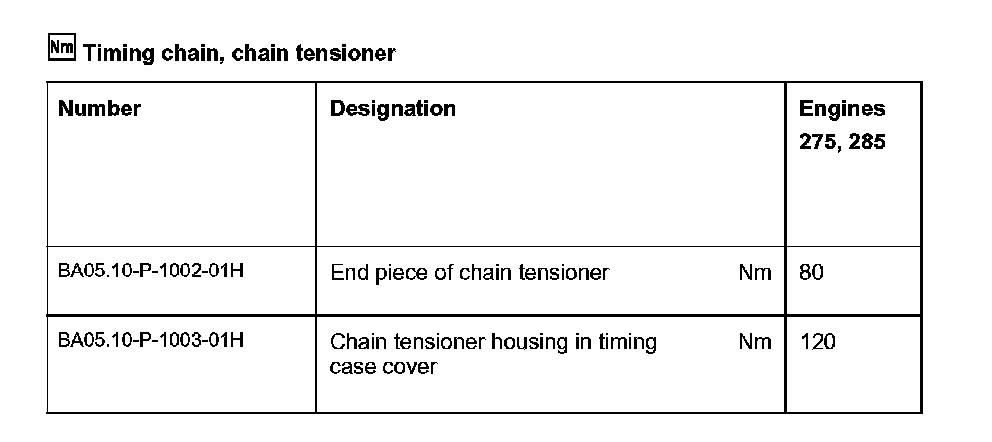

Timing chain, chain tensioner:

Component Identification:

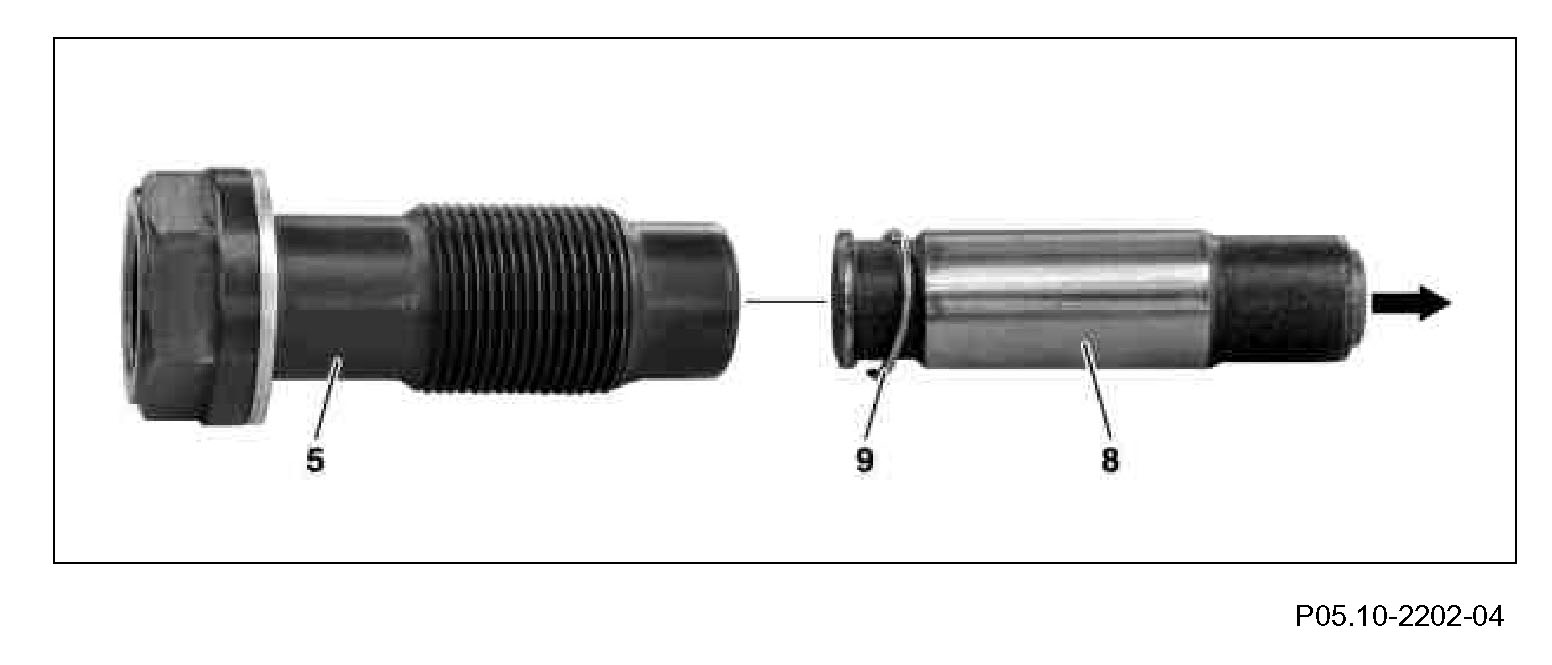

1 Press out the bolt (8) and detent spring (9) from chain tensioner housing (5) (arrowed).

Component Identification:

2 Insert the bolt (8) and detent spring (9) in chain tensioner housing (5) (arrowed).

Insert the bolt (8) and detent spring (9) so that the detent springs (9) sit in the first notch (10).

The bolt (8) must remain in this position.

Component Identification:

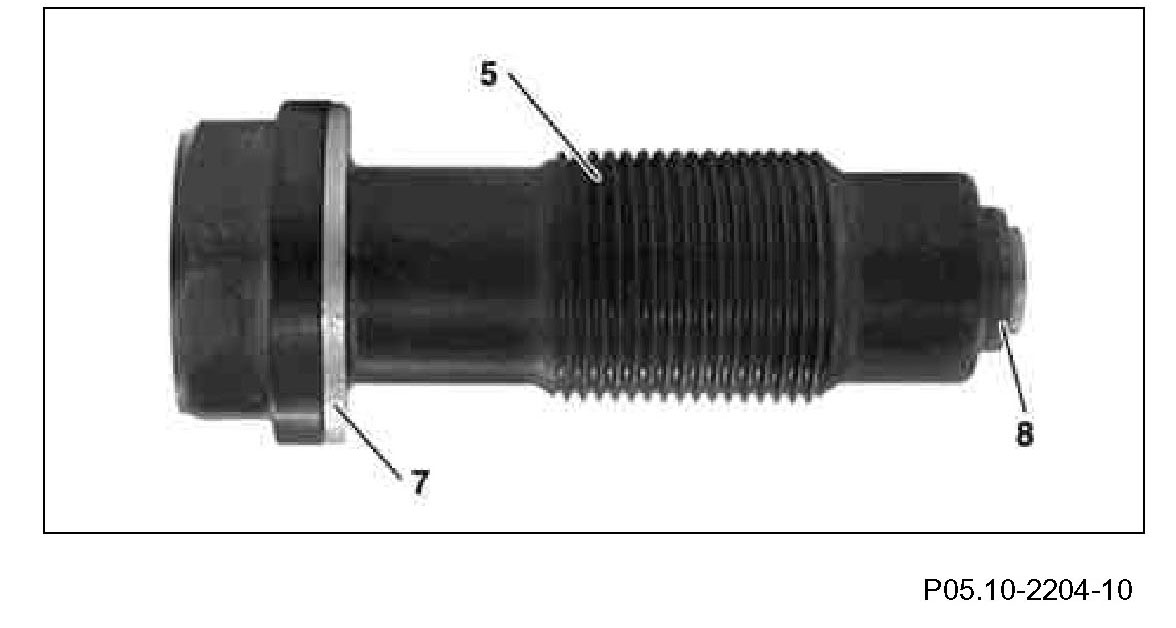

3 Screw in the chain tensioner housing (5) with bolt (8), detent spring (9) and new sealing ring (7) into the timing case cover, and tighten.

Component Identification:

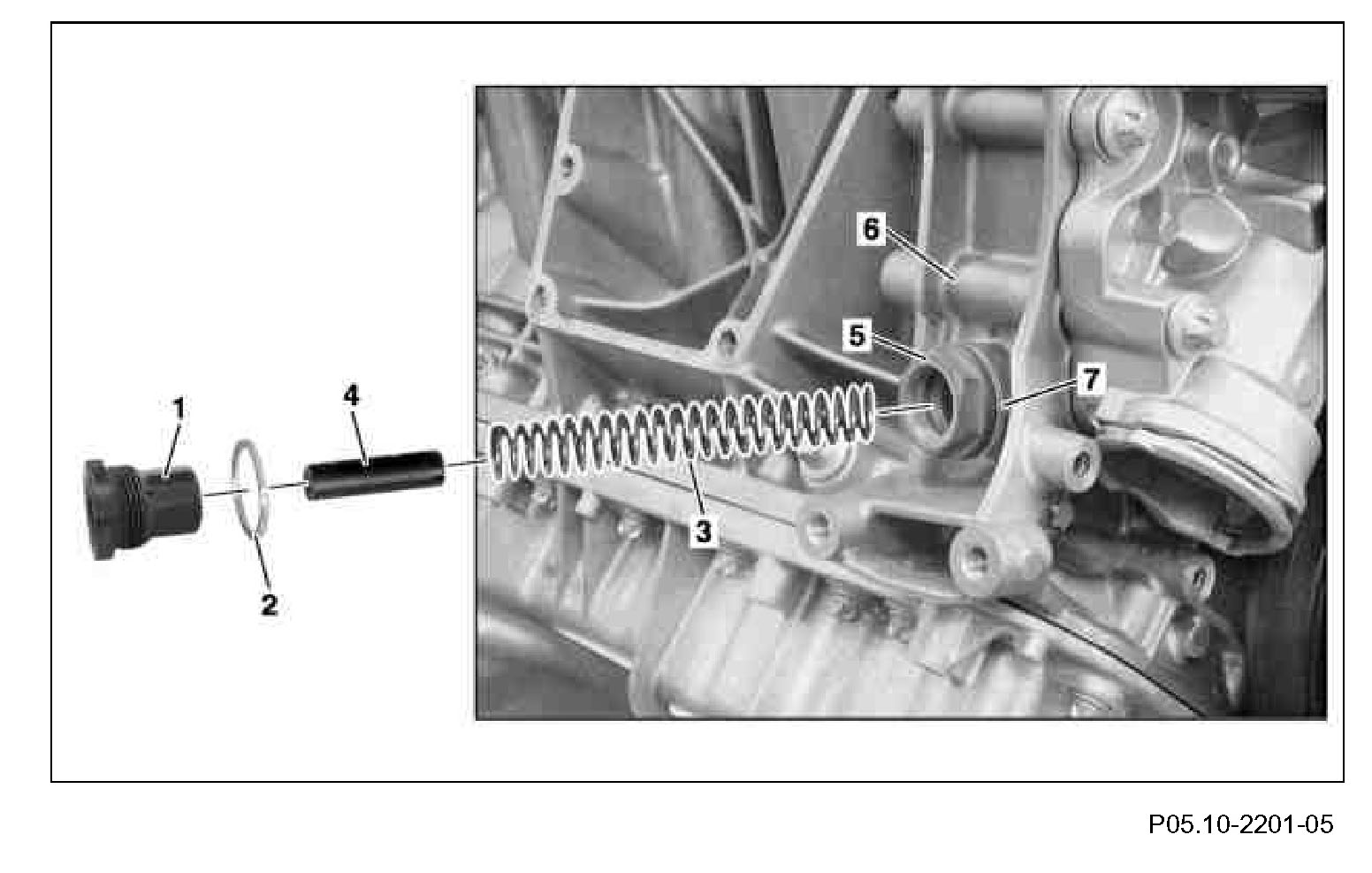

4 Insert the push spring (3) and filler pin (4) in chain tensioner housing (5).
5 Screw in the end piece (1) with new sealing ring (2) into chain tensioner housing (5), and tighten.

When the push spring (3), filler pin (4) and end piece (1) are installed, bolt (8) is moved into the correct position in chain tensioner housing (5).
