AR40.10-P-1030A Replace Tires

AR40.10-P-1030A Replace Tires
MODEL 124, 129, 140, 163, 164, 168, 170, 171, 202, 203, 208, 209, 210, 211, 215, 230
MODEL 220
- except CODE (Z07) Top protection with PAX emergency running system wheel
MODEL 240
- except with CSR emergency running system wheel
MODEL 414

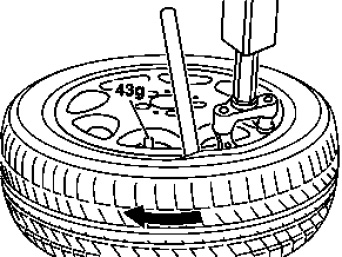

43a Balance weight
43g Valve

X Distance
Y Distance








2 Union nut
3 Valve body
3a Screw
3s Shoulder seal
43g Valve

A69/1 Left front TPM [RDK] wheel sensor
A69/2 Right front TPM [RDK] wheel sensor
A69/3 Left rear TPM [RDK] wheel sensor
A69/4 Right rear TPM [RDK] wheel sensor
A69/5 TPM [RDK] wheel sensor for spare wheel (only model 203, 209, 210, 215, 220, 240)

















129 589 00 59 00
Removal tool





124 589 17 63 00
Assembly tool
