AR33.20-P-0310-01A Removing Front Wheel Hub

AR33.20-P-0310-01A Removing front wheel hub
- except CODE (P99) Special model "AMG Black Series" [model 230]

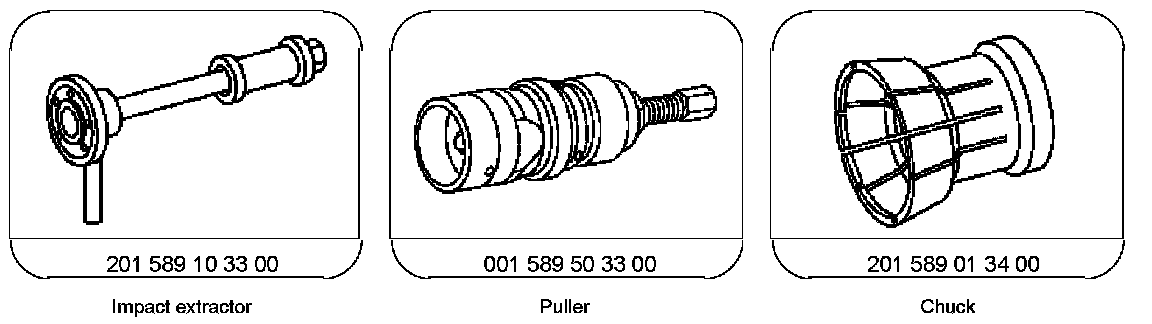

Special Tools:

Component Identification:

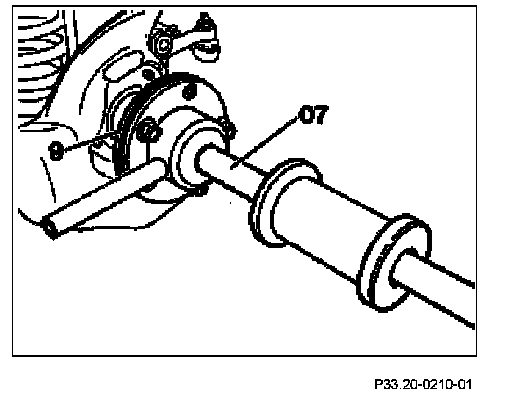

1 Pull off front wheel hub (9); if the front wheel hub (9) has seized, use impact extractor (07).

Component Identification:

2 If the tapered roller bearing inner race has seized use puller (014) and collet (014a).
