BE35.31-P-1000-02D Test Values For Friction Torque of Rear Axle



BE35.31-P-1000-02D Test values for friction torque of rear axle
- Rear axle center assembly dia. 210E [model 129, 209.375/376/475, 210, 215]
- Rear axle center assembly dia. 211E [model 209.476]

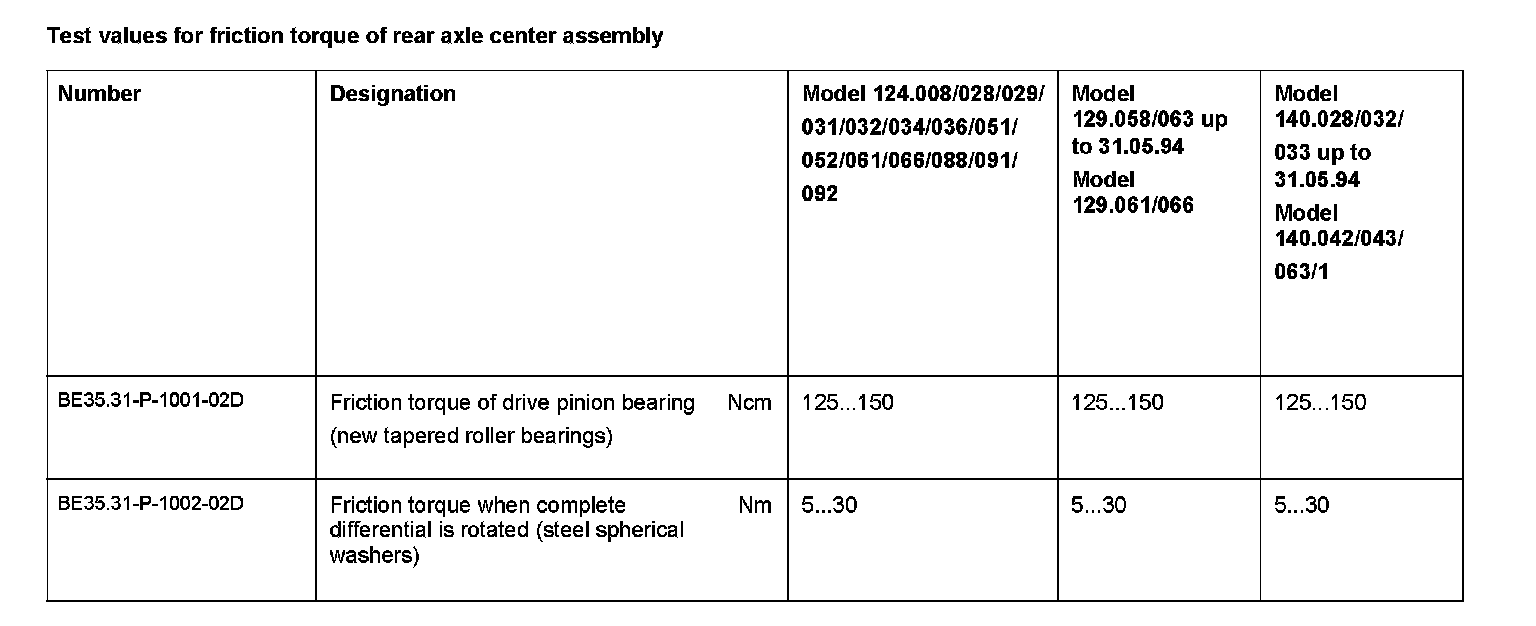

Test values for friction torque of rear axle center assembly:

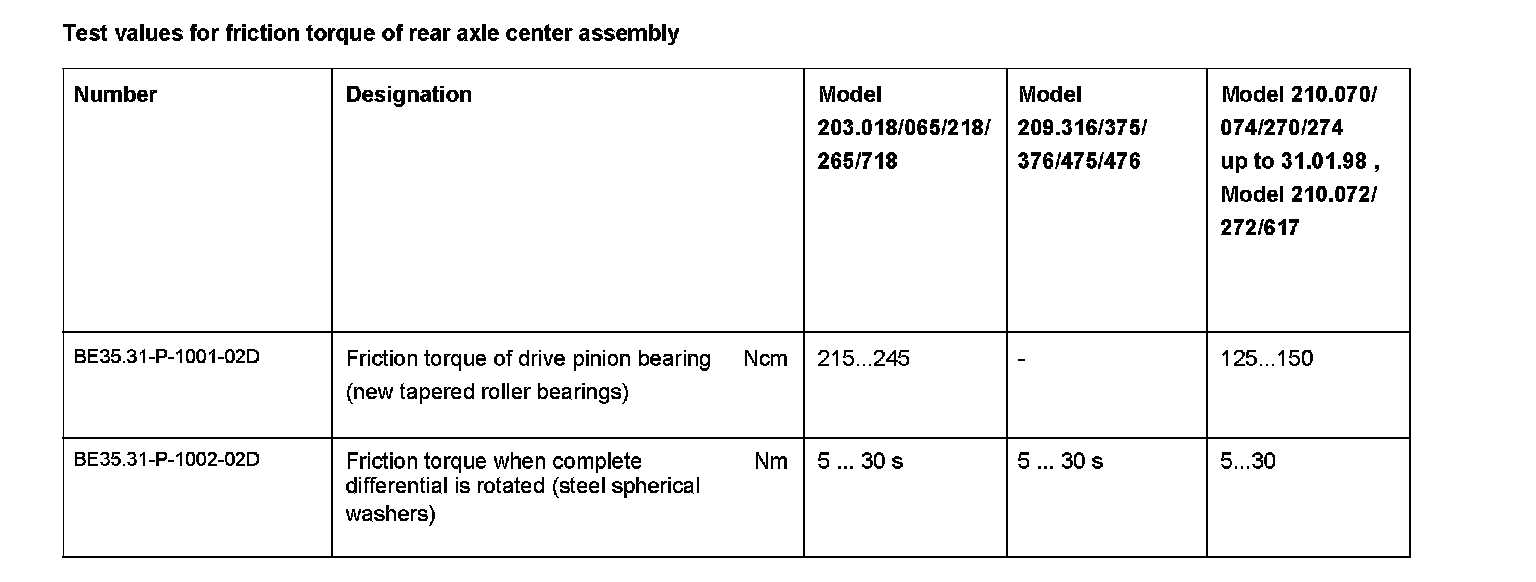

Test values for friction torque of rear axle center assembly:

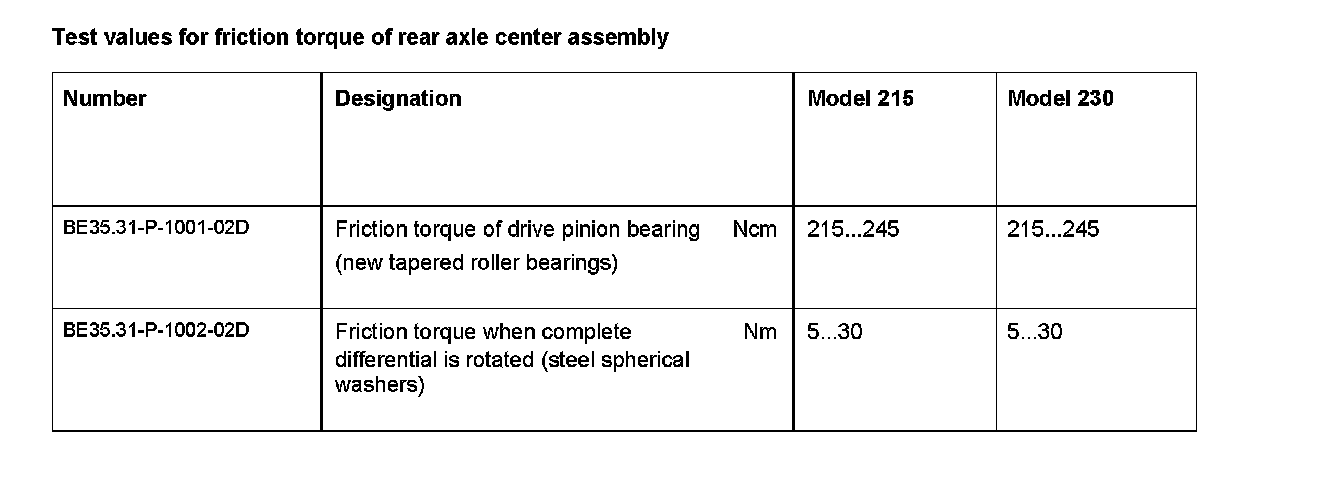

Test values for friction torque of rear axle center assembly:
