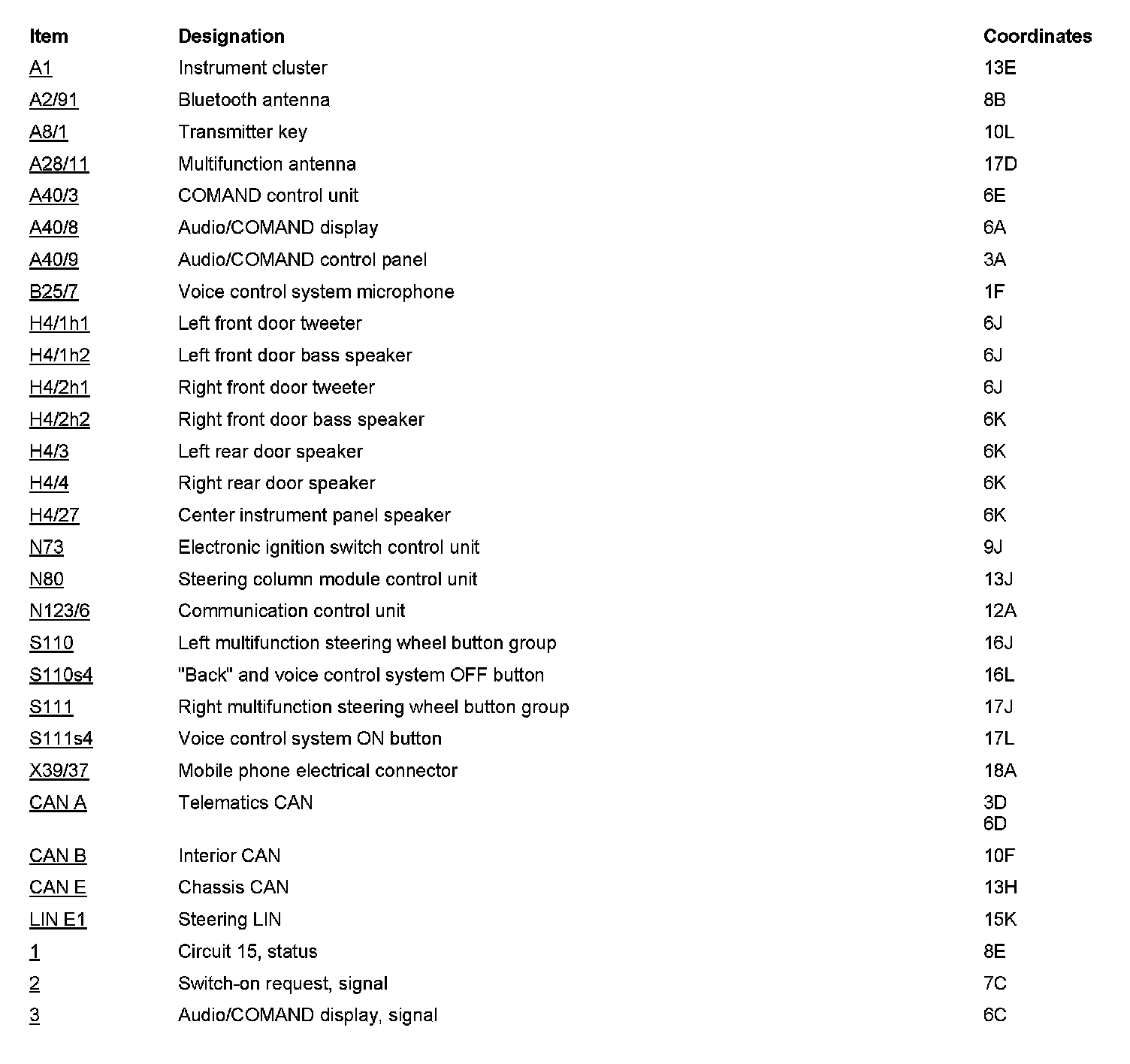

PE82.85-P-2052FAC Electrical Function Schematic For Information And Communications System

PE82.85-P-2052FAC Electrical Function Schematic For Information And Communications System

MODEL 204
- with CODE (498) Japan version
- up to model year 08/YoM 07































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
