GF27.19-P-5160CWB Solenoid Valve, Component Description

GF27.19-P-5160CWB Solenoid valve, component description
- Transmission 722.6
- Regelmagnetventil Wandler�berbr�ckungskupplung

Component Identification:

Location

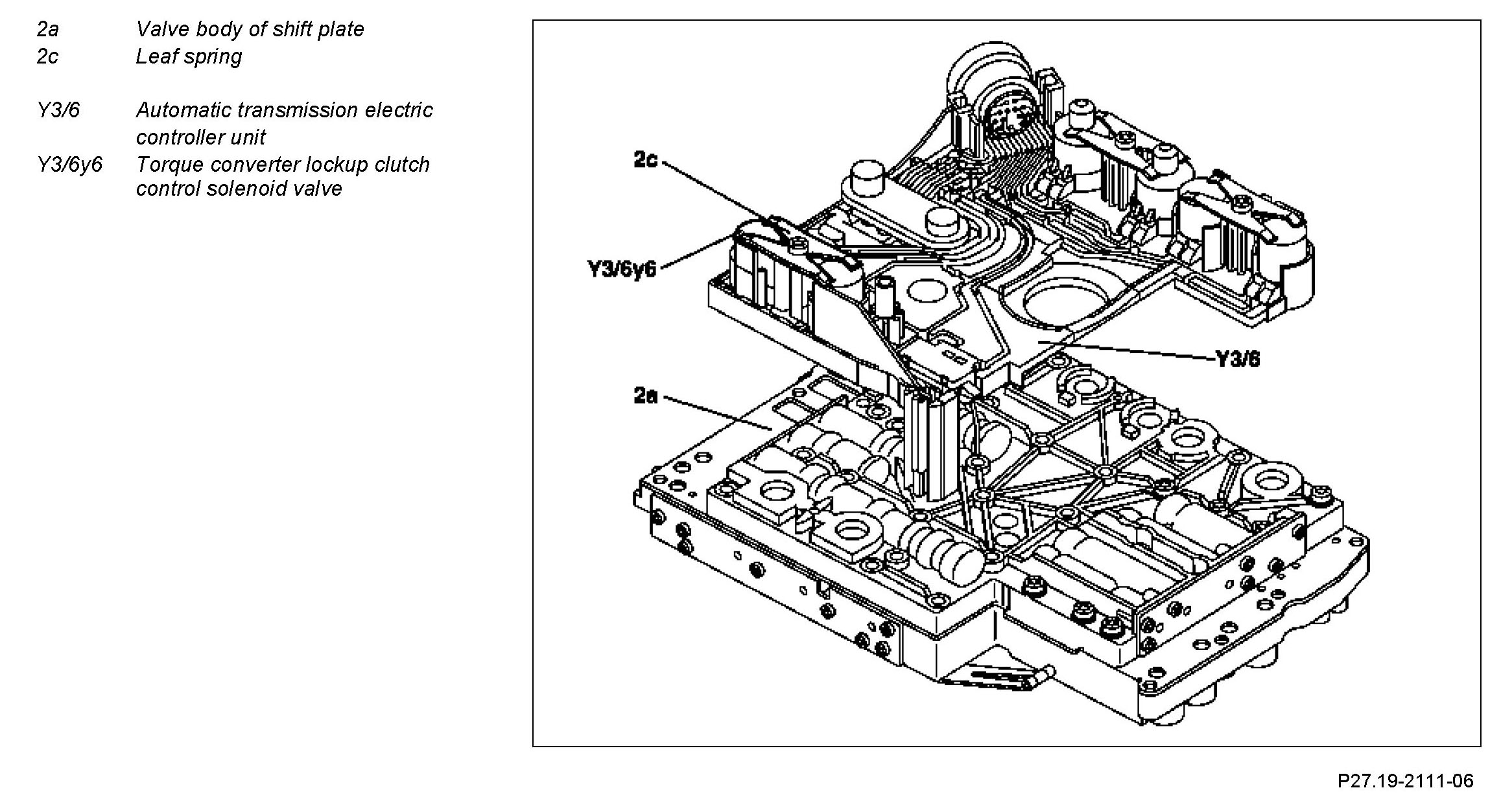

The torque converter lockup clutch control solenoid valve is located on the supporting body of the automatic transmission electric controller unit and is pressed against the valve body of the valve body assembly by a leaf spring.

Task
The torque converter lockup clutch control solenoid valve controls the pressure for the torque converter lockup clutch.

Component Identification:

Design
The torque converter lockup clutch control solenoid valve is sealed towards the valve body of the valve body assembly by an O-ring and a gap seal (arrow).

The contact springs on the torque converter lockup clutch control solenoid valve engage in a slot in the conductor tracks. The spring force of the contact springs means that reliable contacting is guaranteed.

Function
It converts a pulse-width modulated current actuated by the electronic transmission control control unit (N15/3) into the corresponding hydraulic torque converter lock-up clutch control pressure.
