Continuous camshaft adjustment ( RIGHT ): Incorrect position of the exhaust camshaft (P0014)


Possible cause:

- Y49/7 (Right camshaft exhaust solenoid)
- Camshaft position 'Exhaust'
Affected functions:

- Engine diagnosis
- Engine output

-------------------------------------------------

Test 1: Check component Y49/7 (Right camshaft exhaust solenoid).

Test 2: Check assignment of signals from Hall sensors 'Camshafts' and 'Crankshaft'.

1. Check component Y49/7 (Right camshaft exhaust solenoid).

Test 1.1: Test actuation of component Y49/7 (Right camshaft exhaust solenoid).

Test 1.2: Test current consumption of component Y49/7 (Right camshaft exhaust solenoid).

1.1. Test actuation of component Y49/7 (Right camshaft exhaust solenoid).
Test prerequisite

- Engine at idle
- Vehicle stationary
- Coolant temperature > 80° C
- Time since engine start> 60 s
Status of relevant actual value:
- Temperature of coolant:Warning! Communication with ECU required.
Note

- After the actuation it may be necessary to erase the fault memory!
Proceed to 'Actuation' with F2

1.2. Test current consumption of component Y49/7 (Right camshaft exhaust solenoid).
Figure legend

- A -ConnectionTest cable 35-pin socket box
- 001 -Sockets of component N3/10 (ME-SFI [ME] control unit)
- 05 -35-pin socket box
- 050 -126-pin socket box
- 108 -Test cable 266 589 01 63 00
- N3/10 (ME-SFI [ME] control unit)
- II 1-63ConnectionTest cable
- III 64-126ConnectionTest cable
Warning!

-
- Connection A of test cable 108 may NOT be connected to connection B of the 126-pin socket box (050).







Test sequence

- Switch off ignition.
- Connect socket box (126-pin) to component N3/10 (ME-SFI [ME] control unit).
- Measure direct current with multimeter between sockets [F.4] 100 and [M.24] 24 of the 126-pole socket box tester.
- Switch on ignition.
Testing of maximum power consumption may be conducted for no longer than 5 s.Specified value

- Amperage[1.0...1.8] A
Question

- Is the measurement value OK?


YES
The measurement value is OK.End of test

NO
The measurement value is not OK.Possible cause and remedy

- K40/4f43 (Fuse 43)
- Line from component Y49/7 (Right camshaft exhaust solenoid) to component Z7/35 (Circuit 87 M1e connector sleeve)
- Line from component Y49/7 (Right camshaft exhaust solenoid) to component N3/10 (ME-SFI [ME] control unit)
- Y49/7 (Right camshaft exhaust solenoid)
End of test







2. Check assignment of signals from Hall sensors 'Camshafts' and 'Crankshaft'.
Check assignment of signals from Hall sensors 'Camshafts' and 'Crankshaft'.
Figure legend

- A -ConnectionTest cable 35-pin socket box
- 001 -Sockets of component N3/10 (ME-SFI [ME] control unit)
- 05 -35-pin socket box
- 050 -126-pin socket box
- 108 -Test cable 266 589 01 63 00
- N3/10 (ME-SFI [ME] control unit)
- II 1-63ConnectionTest cable
- III 64-126ConnectionTest cable
Warning!

- Connection A of test cable 108 may NOT be connected to connection B of the 126-pin socket box (050).
Continue to test with button F2







Figure legend

- 1Signal from component B6/5 (Right intake camshaft Hall sensor)
- 2Signal from component B6/7 (Right exhaust camshaft Hall sensor)
- 3Signal from component B6/4 (Left intake camshaft Hall sensor)
- 4Signal from component B6/6 (Left exhaust camshaft Hall sensor)
- 5Signal from component B70 (Crankshaft Hall sensor)
Test prerequisite

- Voltage supply is o.k.
Test sequence

- Switch off ignition.
- Connect socket box (126-pin) to component N3/10 (ME-SFI [ME] control unit).
- ConnectionMeasuring system
- Component B6/5 (Right intake camshaft Hall sensor):(A7) Observe oscilloscope pattern between sockets [M16] 16 and [M.57] 57 of the 126-pole socket box tester. (A.1)
- Component B6/7 (Right exhaust camshaft Hall sensor):(A7) Observe oscilloscope pattern between sockets [M16] 16 and [M.10] 10 of the 126-pole socket box tester. (A.2)
- Component B6/4 (Left intake camshaft Hall sensor):(A7) Observe oscilloscope pattern between sockets [M16] 16 and [M.56] 56 of the 126-pole socket box tester. (A.3)
- Component B6/6 (Left exhaust camshaft Hall sensor):(A7) Observe oscilloscope pattern between sockets [M16] 16 and [M.34] 34 of the 126-pole socket box tester. (A.4)
- Component B70 (Crankshaft Hall sensor):(A7) Observe oscilloscope pattern between sockets [M16] 16 and [M.81] 81 of the 126-pole socket box tester. (A5)
- Start engine.

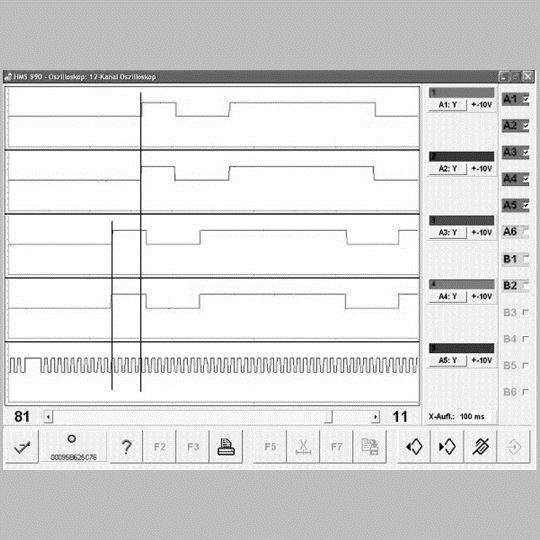

- Enter the settings as shown in the right-hand diagram.
Specified value

- Measuring system
Note

- Measuring system:Communication with ECU required
