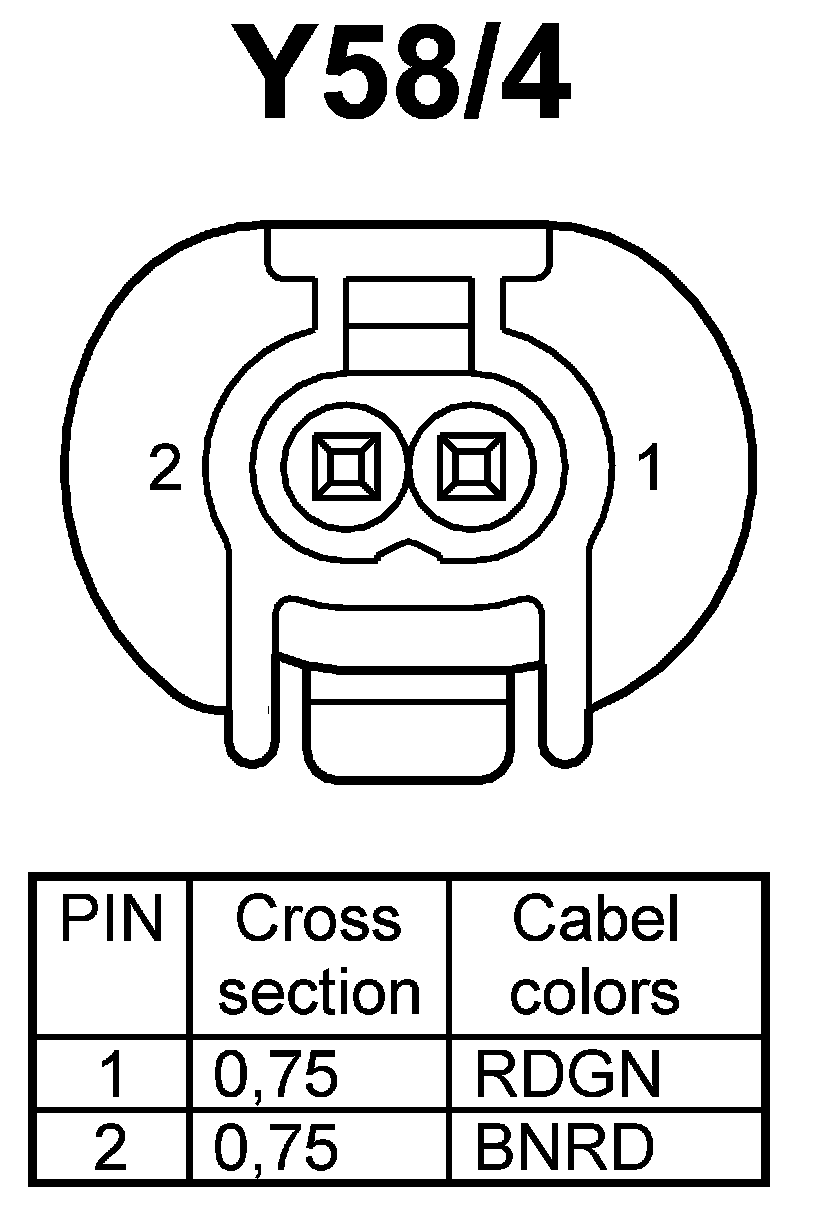

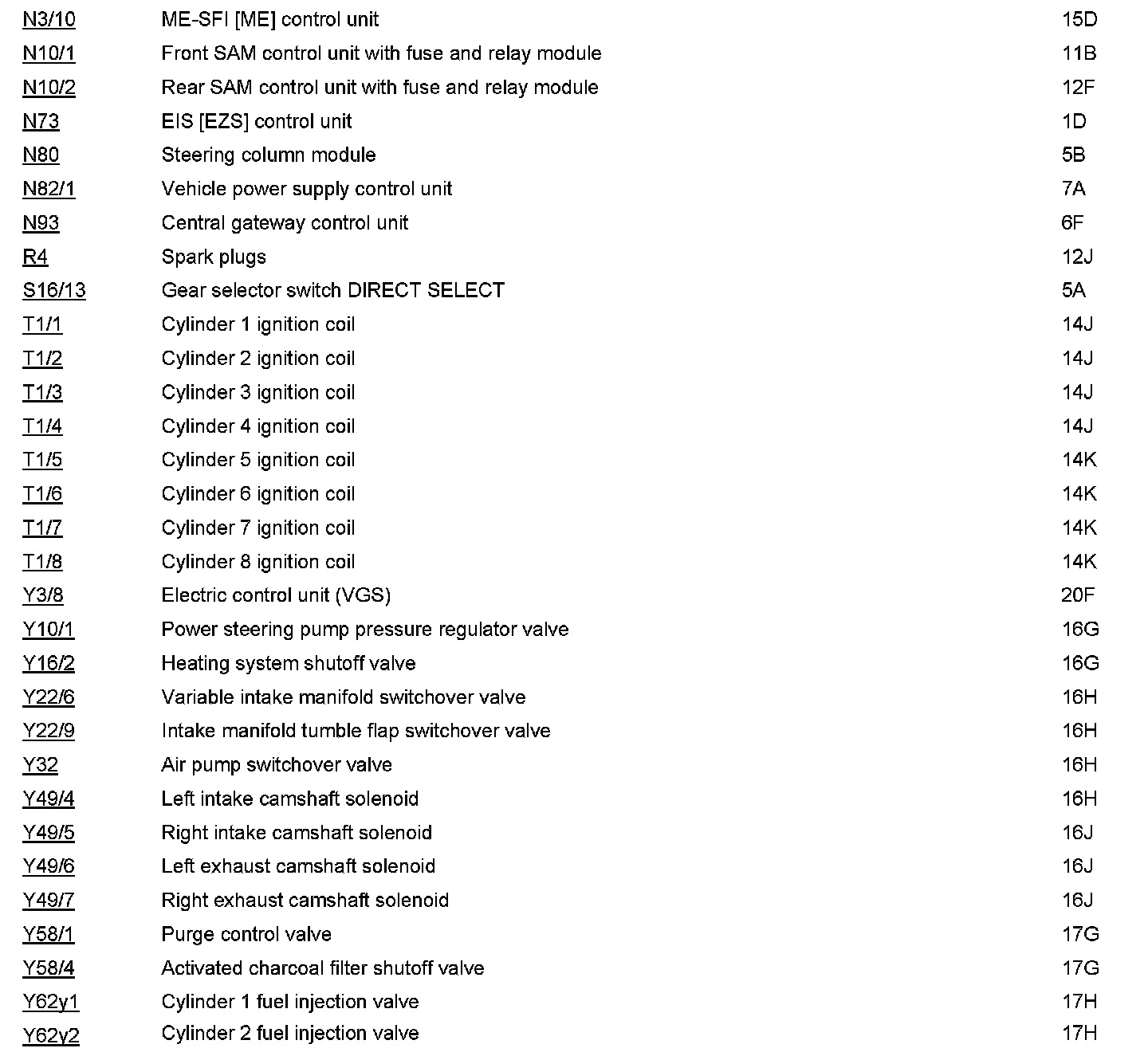

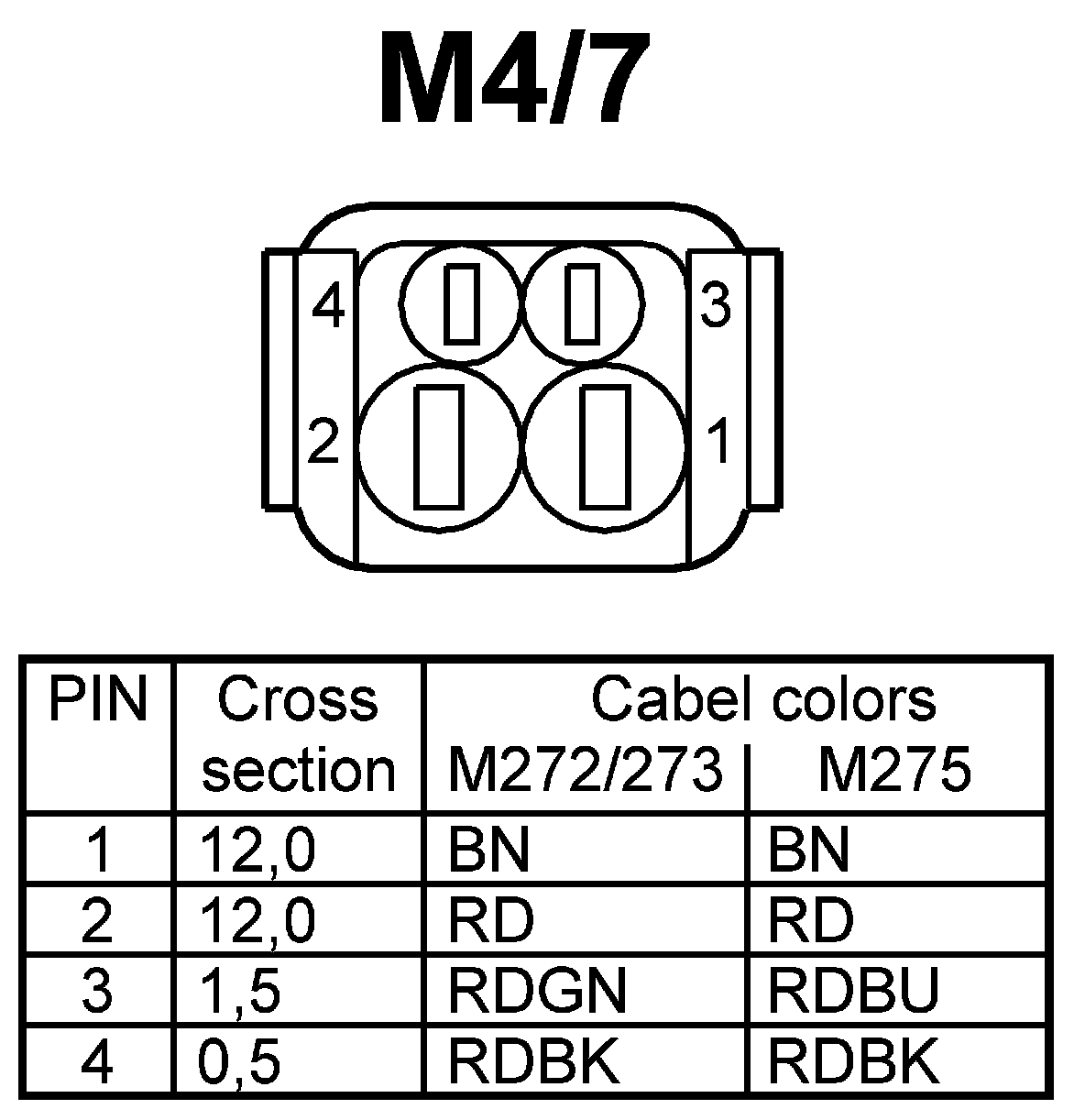

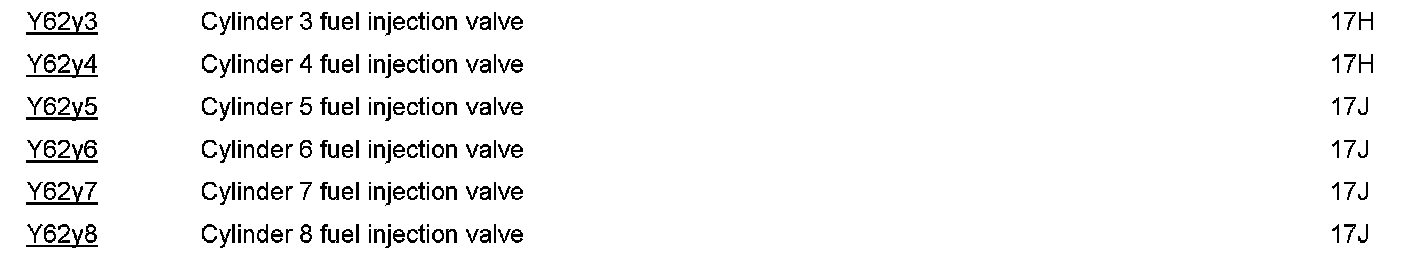

PE07.61-U-2050SAA Function Diagram of Electrical System For ME Engine Control

PE07.61-U-2050SAA Function Diagram of Electrical System For ME Engine Control

ENGINE 273 in MODEL 221
- up to Model Year 2008
- Motor electronics























































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
