BE40.20-P-1000-10K Rear Axle Toe-In
BE40.20-P-1000-10K Rear Axle Toe-In
BE40.20-P-1000-10K Rear axle toe-in

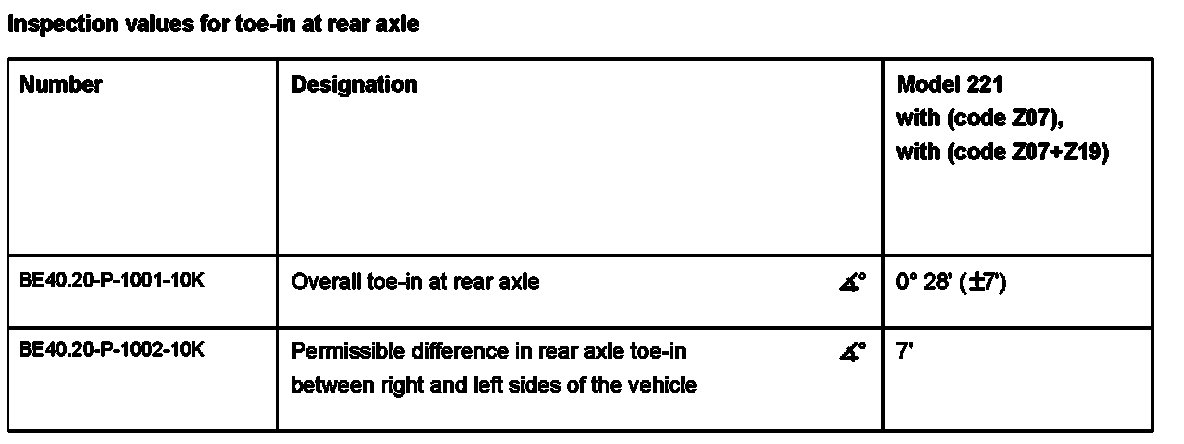

Inspection values for toe-in at rear axle:
Inspection values for toe-in at rear axle:
Inspection values for toe-in at rear axle:
