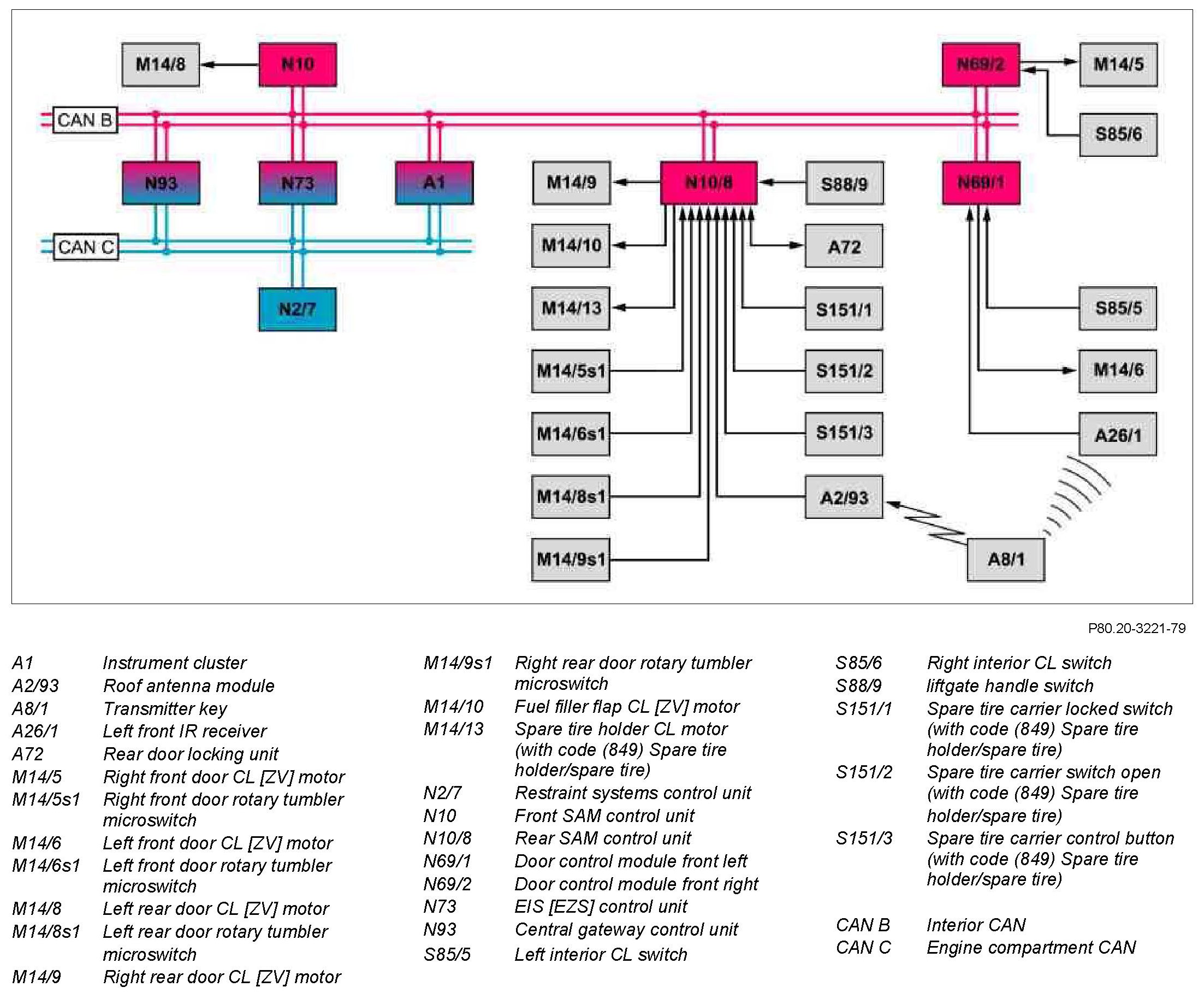

GF80.20-P-0005-10GM Central Locking (CL), Block Diagram
GF80.20-P-0005-10GM Central Locking (CL), Block Diagram
GF80.20-P-0005-10GM Central Locking (CL), Block Diagram
Component Identification:
