AR01.40-P-8000GZA Remove/Install Timing Case Cover

AR01.40-P-8000GZA Remove/Install Timing Case Cover
ENGINES 272, 273 in MODEL 164, 251

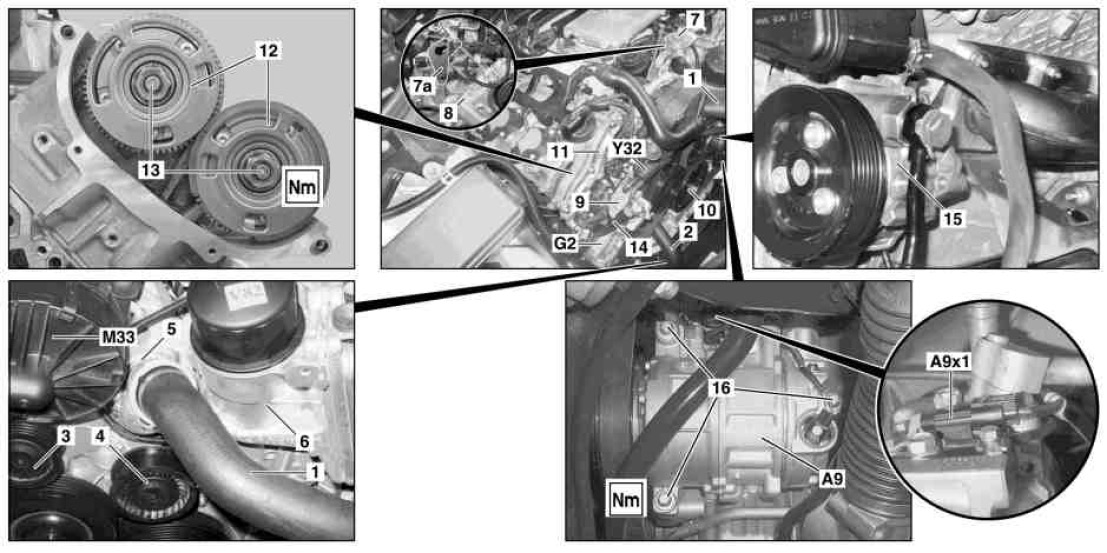

1 Coolant hose
2 Coolant hose
3 Pulley
4 Pulley
5 Coolant thermostat housing
6 Oil filter housing
7 Air shutoff valve
7a Intermediate flange
8 Cylinder head
9 Air shutoff valve
10 Belt pulley/vibration damper
11 Front cover
12 Segmental disks
13 Central valves
14 Oil dipstick guide tube
15 Power steering pump
16 Screw/bolts

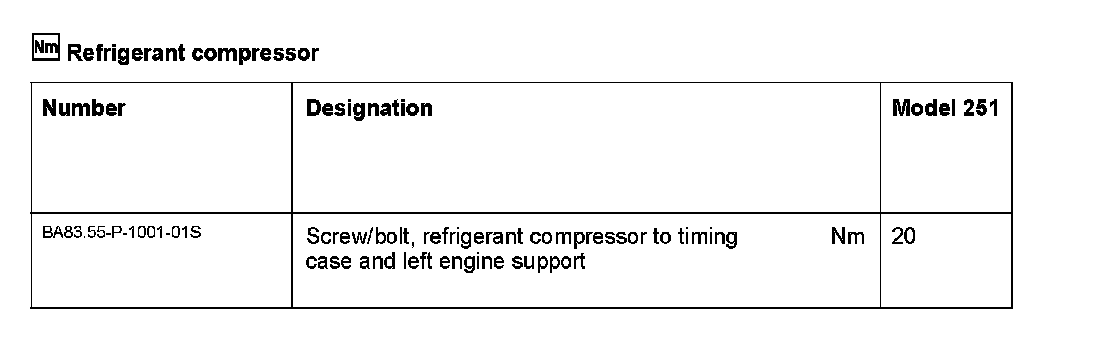

A9 Refrigerant compressor
A9x1 Refrigerant compressor connector
G2 Alternator
M33 Electric air pump
Y32 Air pump switchover valve

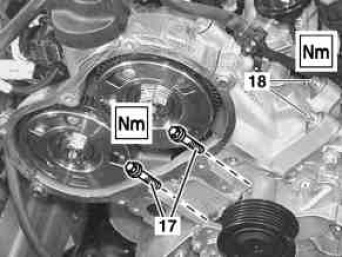

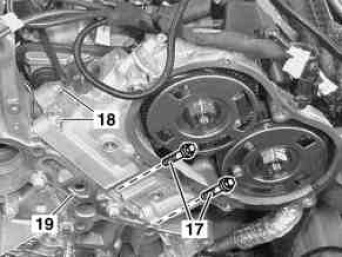

17 Screw/bolts
18 Screw/bolts
19 Timing case cover





























112 589 00 25 00
Squeeze gun





001 589 65 09 00
Wrench socket





240 589 00 61 00
Engine lifting fixture





642 589 00 61 00
Adapted engine lifting device
