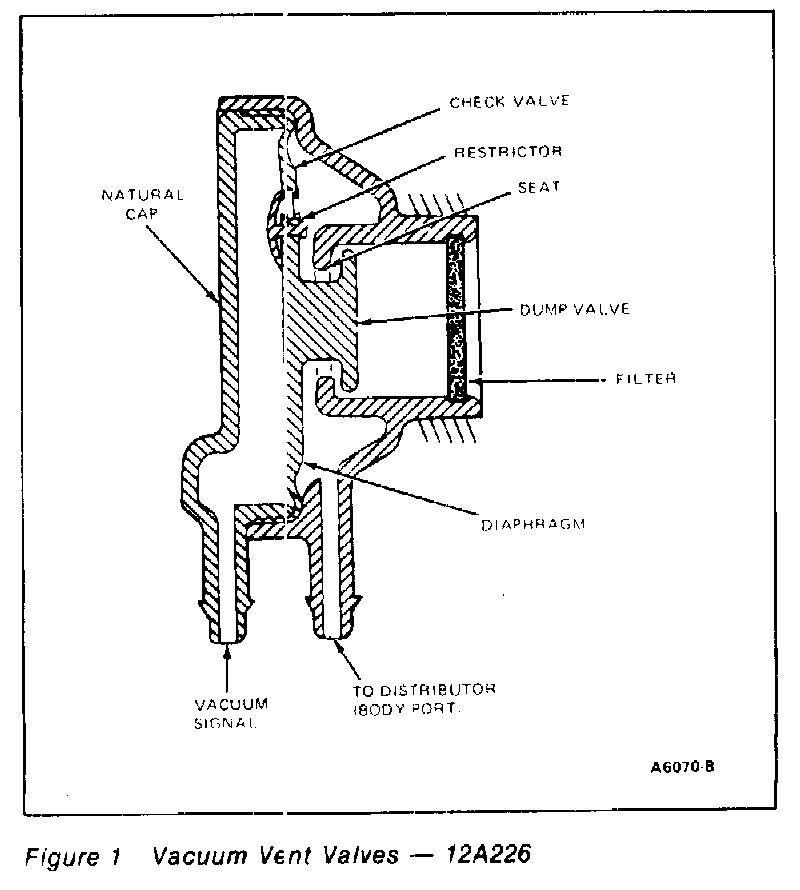

Vacuum Vent Valves
1. With no vacuum applied to the signal port, the
distributor (body port) should be open to atmosphere.
2. With an applied vacuum, the
distributor should be closed to atmosphere.
3. A vacuum applied to the signal port and trapped should bleed off when the
distributor port is open.
