Removal

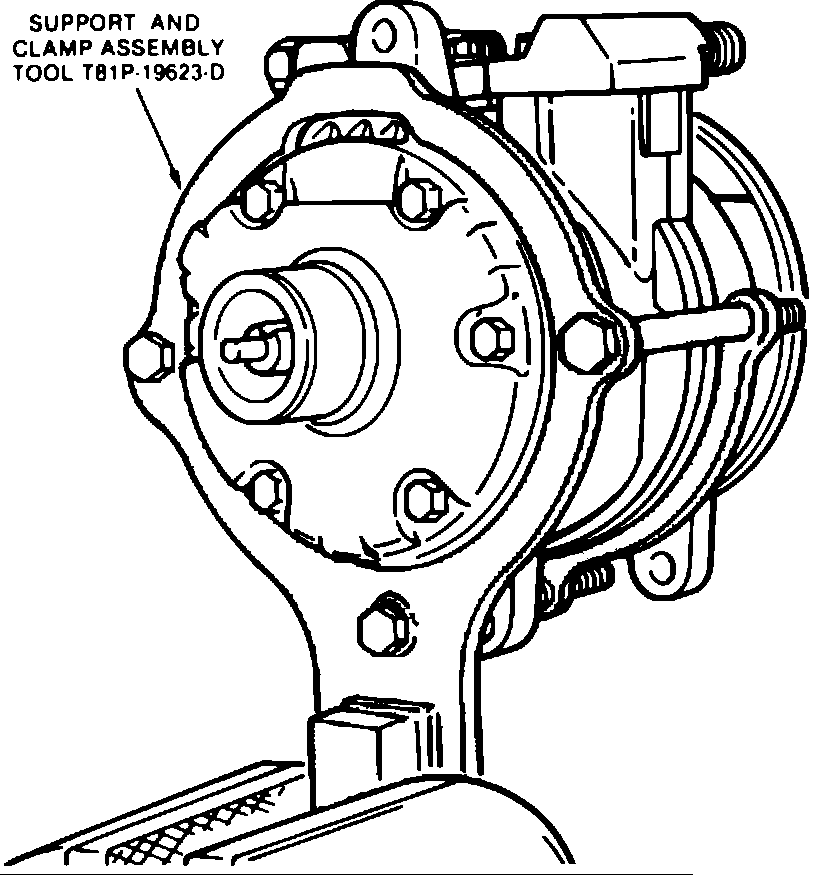

Fig. 14 Compressor clamped for rear head removal:

1. Remove clutch assembly.
2. Drain oil from compressor through manifold.
3. Install tool T81P-19623-D or equivalent on compressor to retain cylinder assembly and front head in position, and clamp tool in vise, Fig. 14.
4. Hold rear head and remove six through bolts from cylinder head assembly.
5. Separate rear head assembly from cylinder assembly and remove O-ring from head.

Fig. 15 Disassembled view of valve plate & rear head:

6. Remove dowel pin(s), Fig. 15.
7. Remove inlet reed from rear head and valve plate assembly.

Fig. 10 Valve plate removal:

8. Remove valve plate assembly from rear head with tool T81P-19623-B or equivalent, Fig. 10.
9. Remove cylinder gasket from head.
10. Clean rear head, valve plate assembly and inlet reed with suitable cleaning solvent.
