With A/C

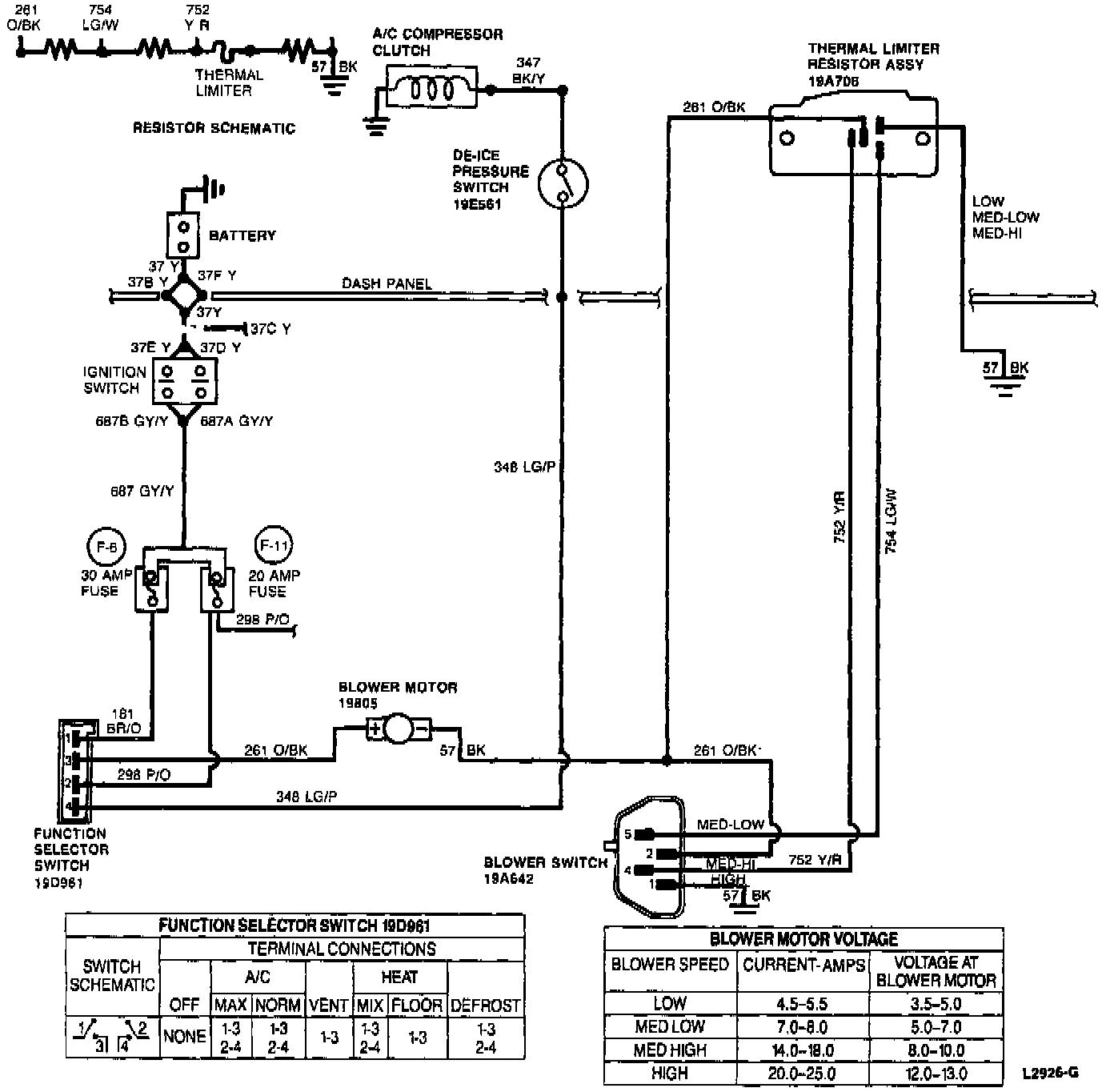

A/C-Heater System Electrical Wiring Diagram And Continuity Test:

Refer to the Heater System Electrical Wiring Diagram and Continuity Test image to assist in performing component and system electrical wiring and continuity tests.

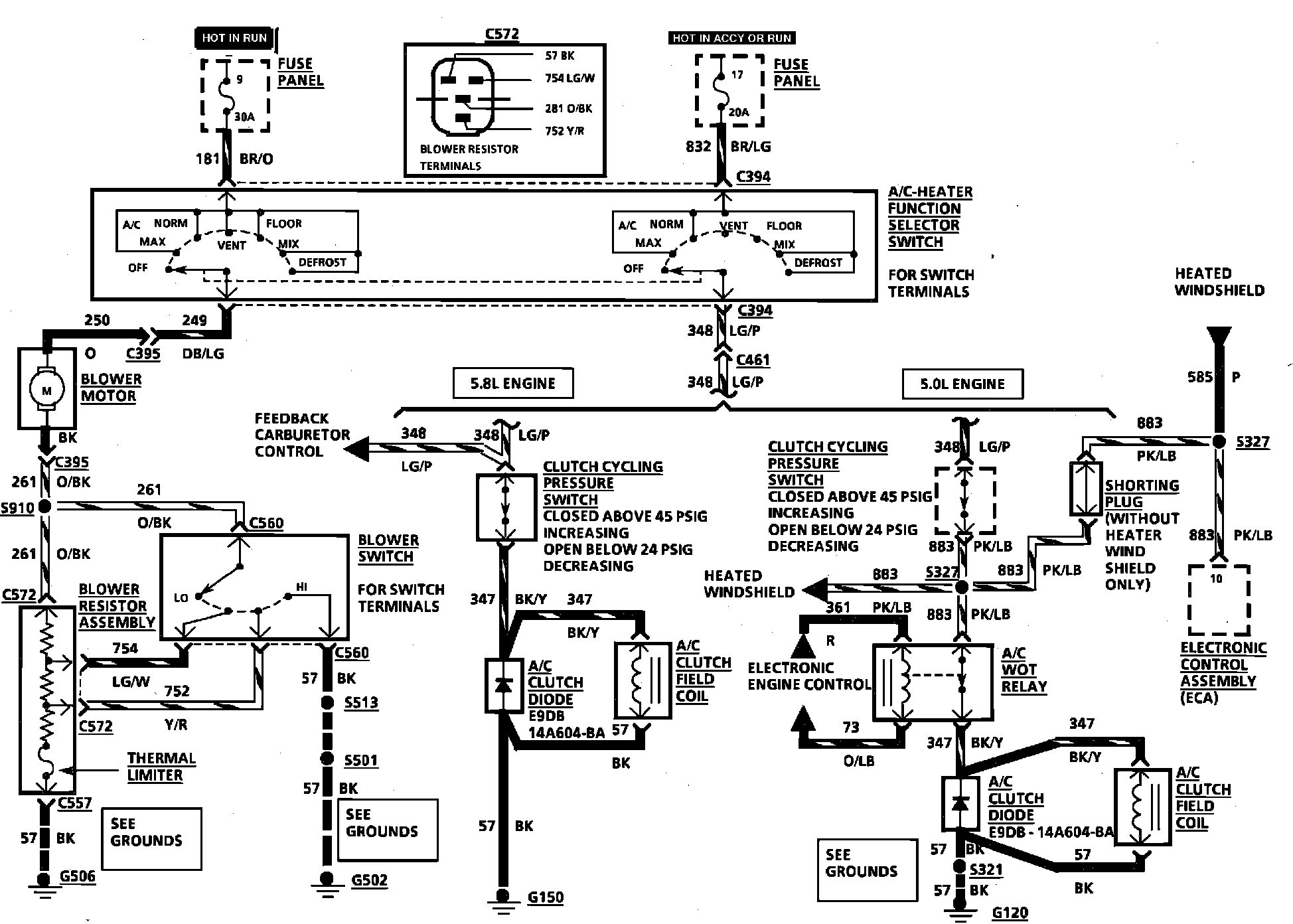

A/C & Heater Wiring Circuit. Less Auto. Temp. Control:

Blower Switch Chart/Terminal Location And Testing Procedure:

Use the Electrical Wiring Circuit and the Blower Switch Chart/Terminal Location And Testing Procedure for complete circuit schematics and wire colors.
