Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercury
>>
1991
>>
Capri L4-1597cc 1.6L DOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests
>>
STP - Switch to Power
>>
STP1 - Test Switch Signal
STP1 - Test Switch Signal
*** UPDATED BY TSB# 91-14-B1 DATED 08-30-93

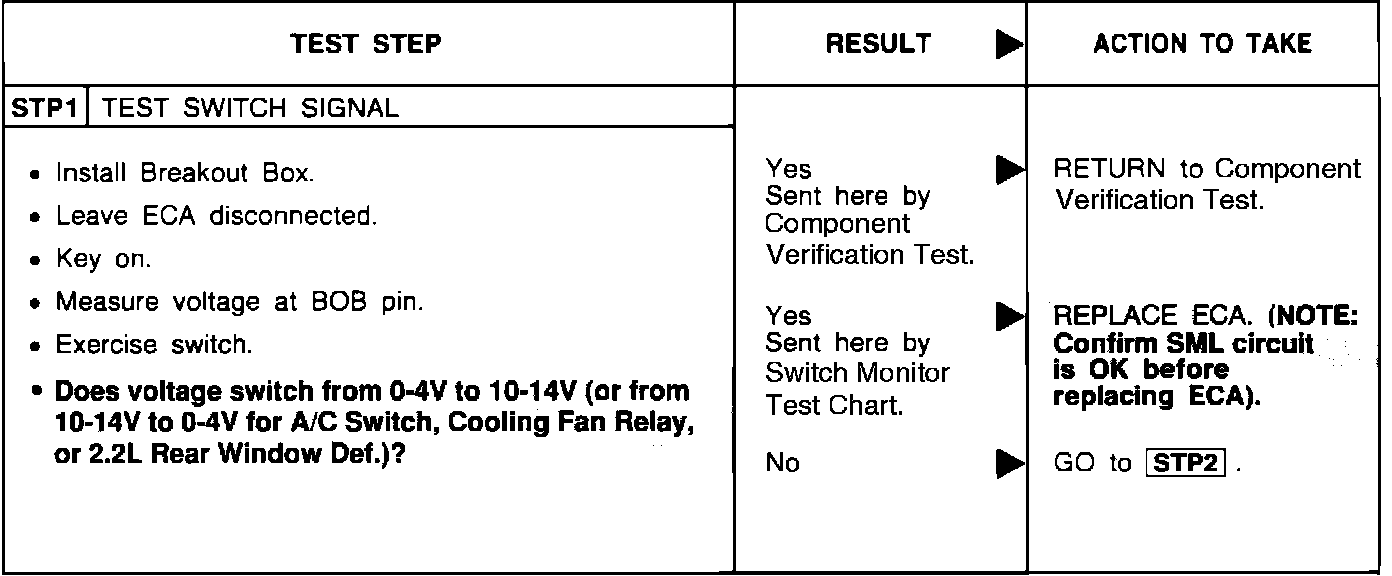

Pinpoint Test STP1:
