Engine Controls

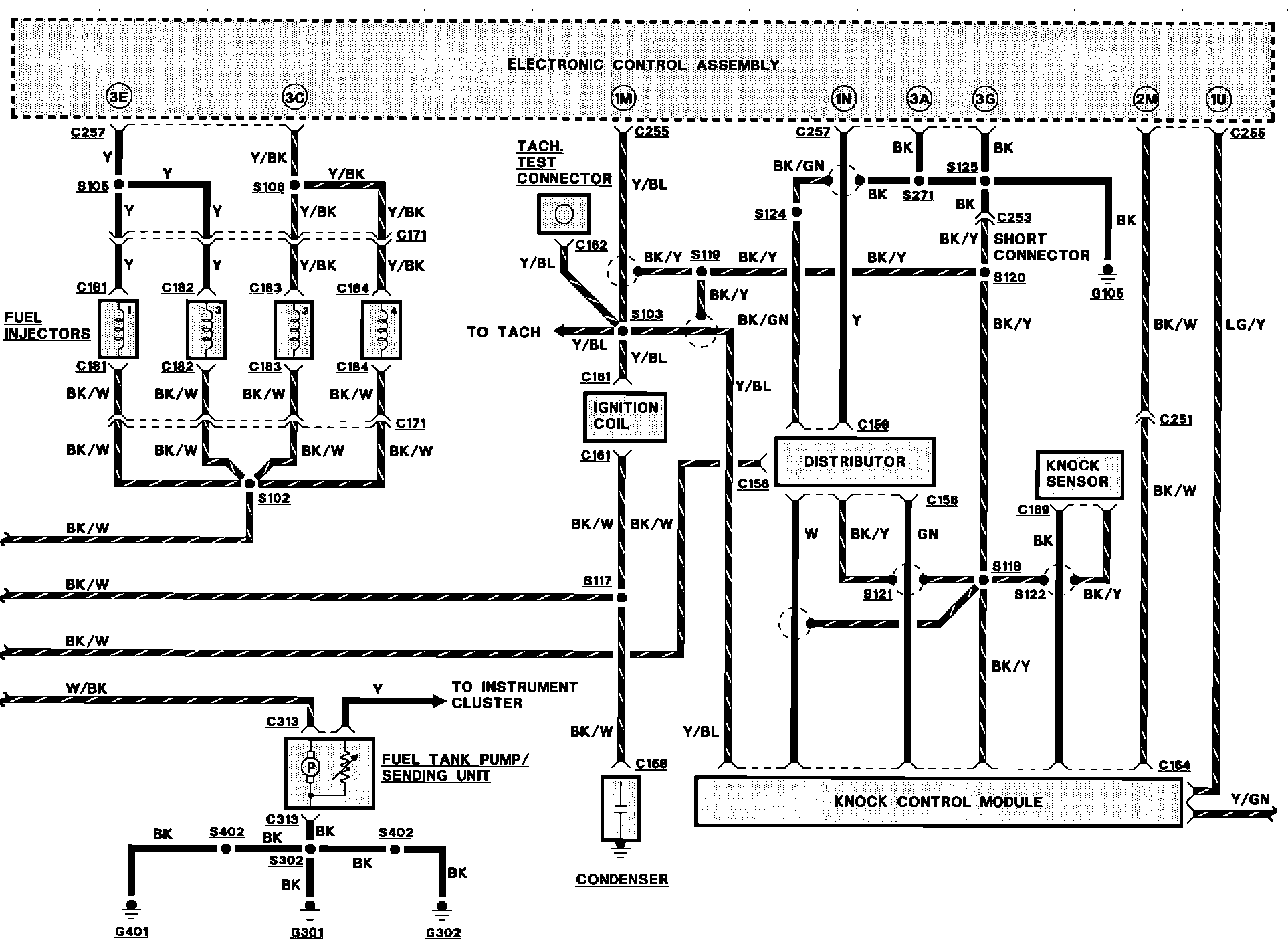

Engine Control. Turbo:

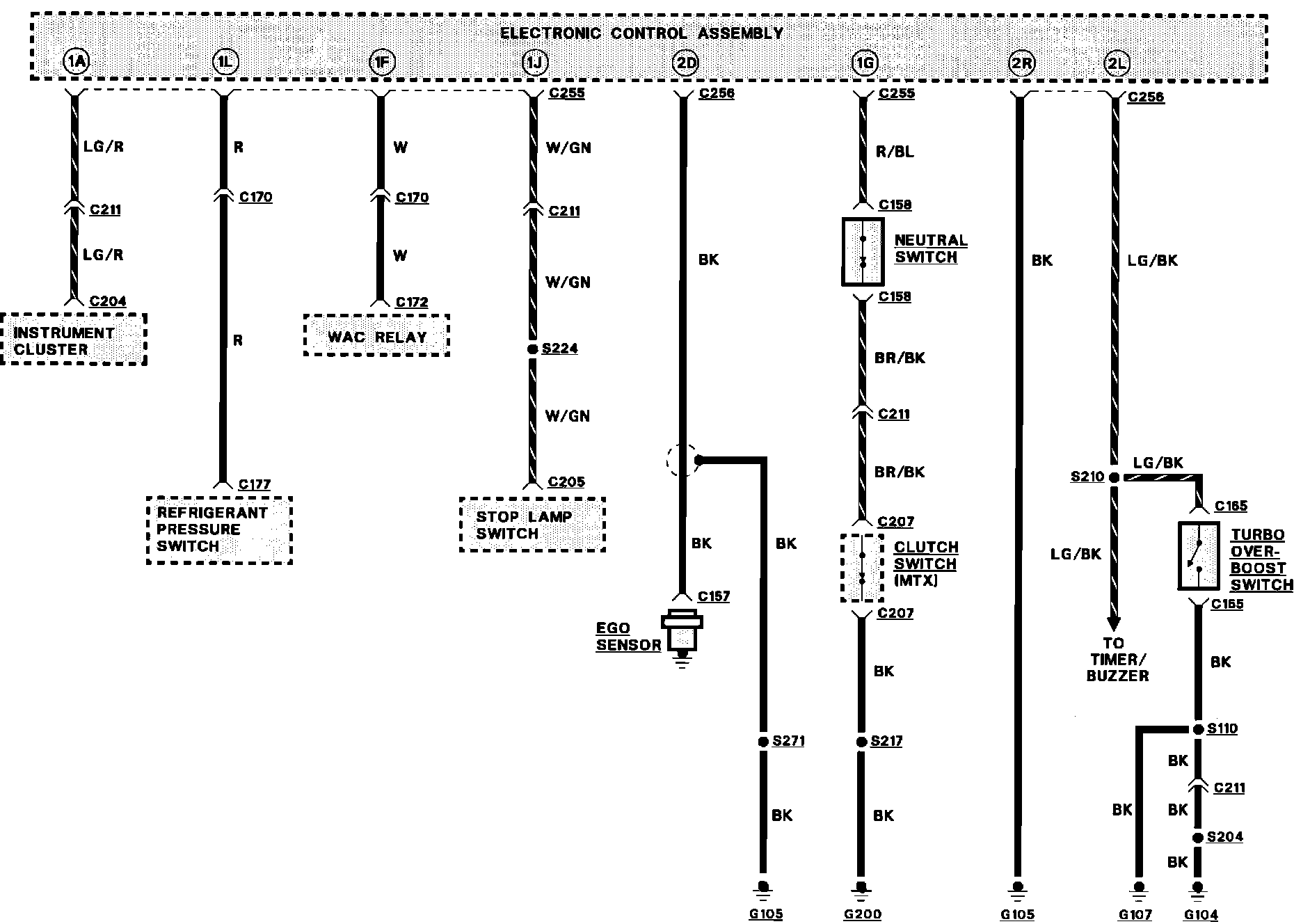

Engine Control. Turbo:

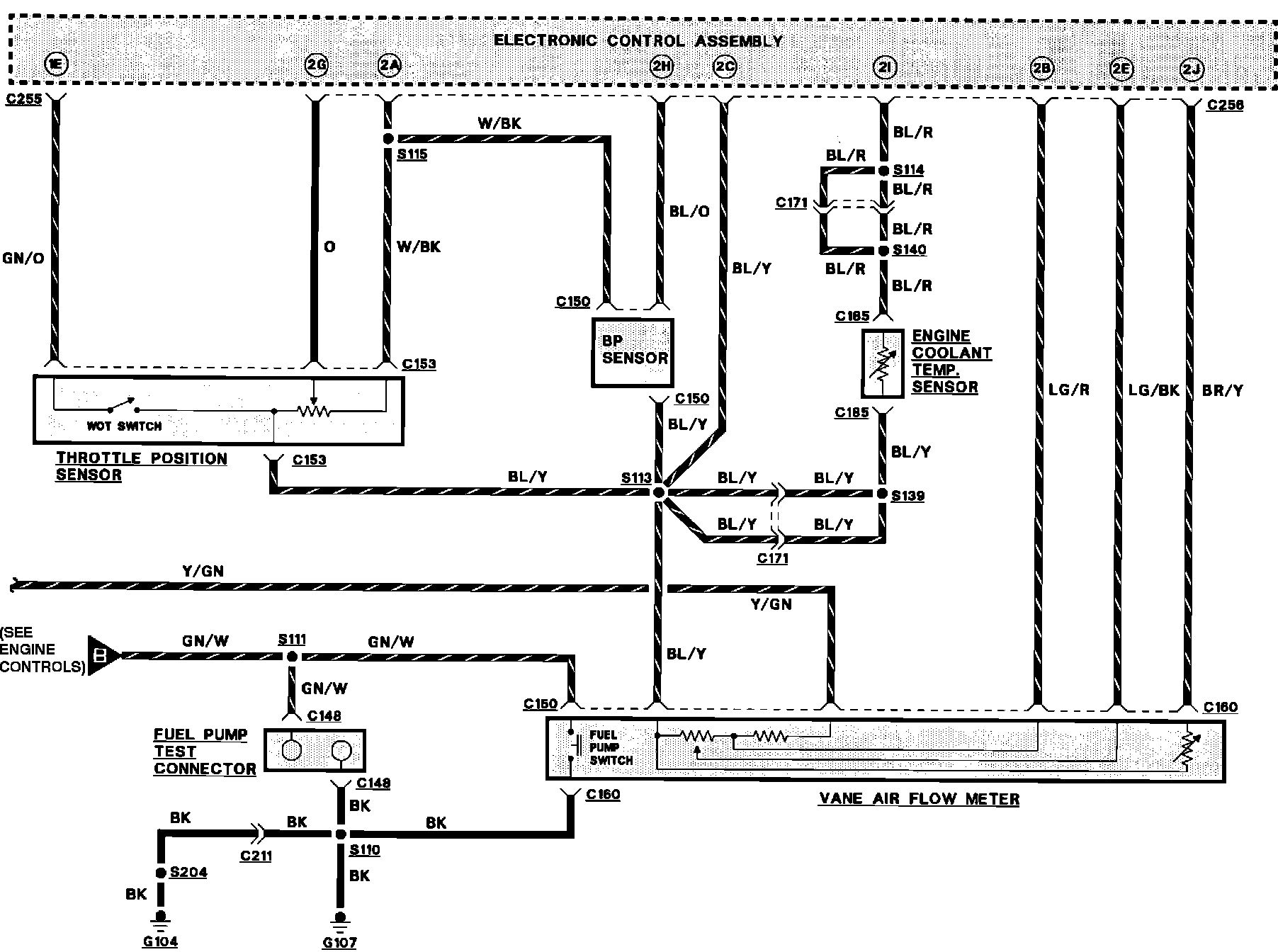

Engine Control. Turbo:

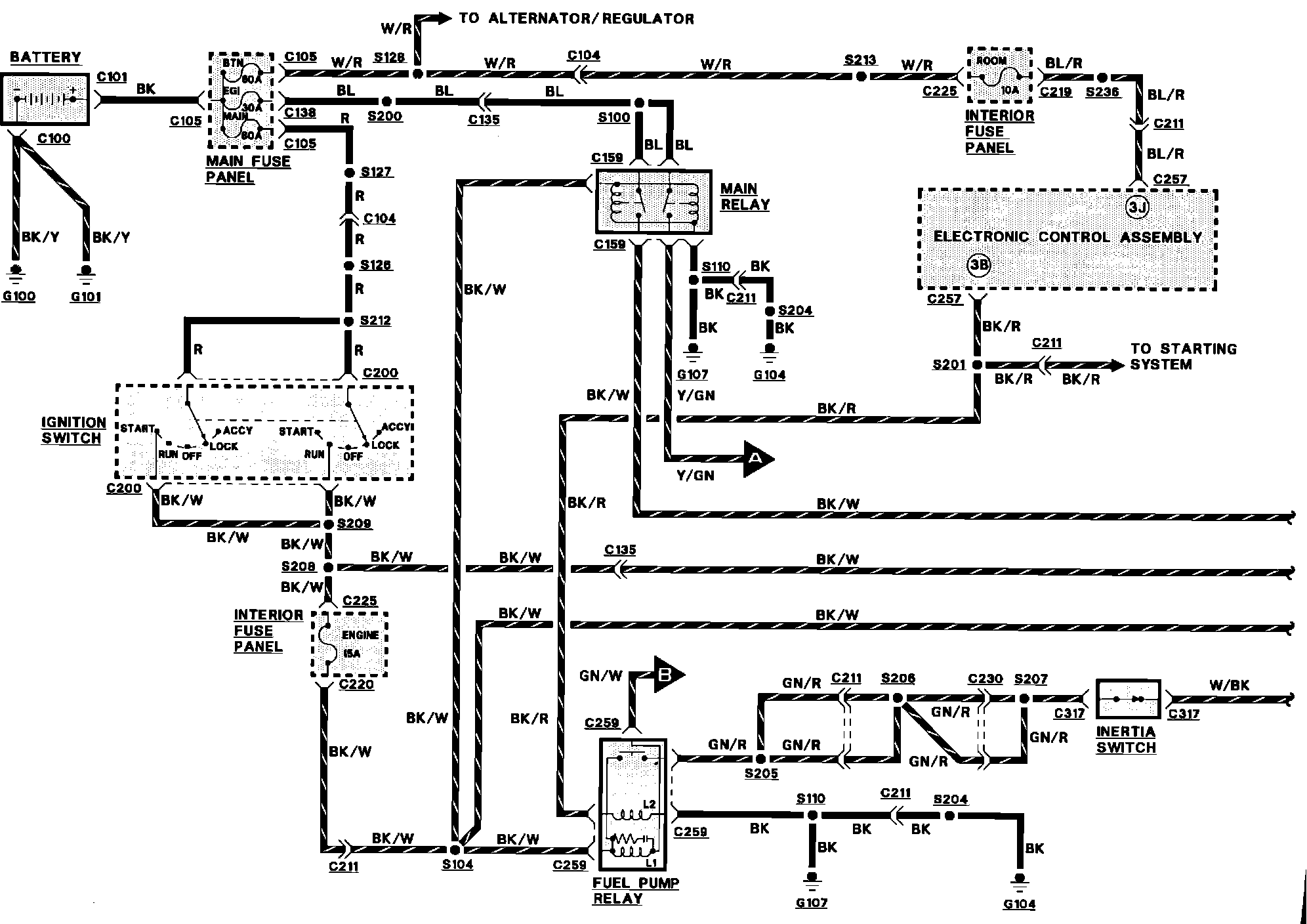

Engine Control. Turbo:

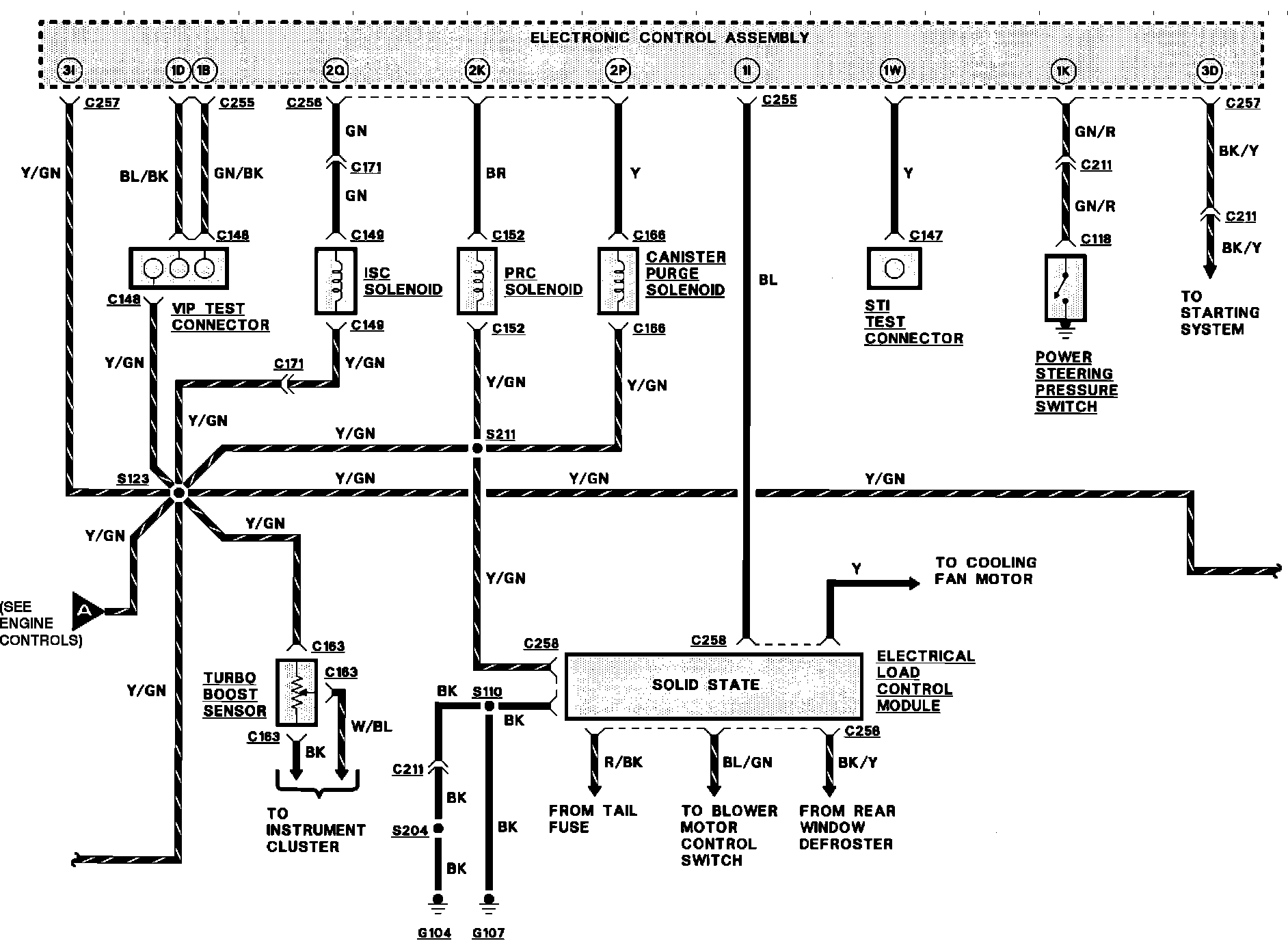

Engine Control. Turbo:
