Front/Rear Alignment Specifications - Revision

91ford01 Article No. 91-1-5
SUSPENSION - FRONT AND REAR - REVISED ALIGNMENT SPECIFICATIONS
LINCOLN-MERCURY: 1991 CAPRI

ISSUE: The front and rear alignment specifications have been revised for better tire wear.

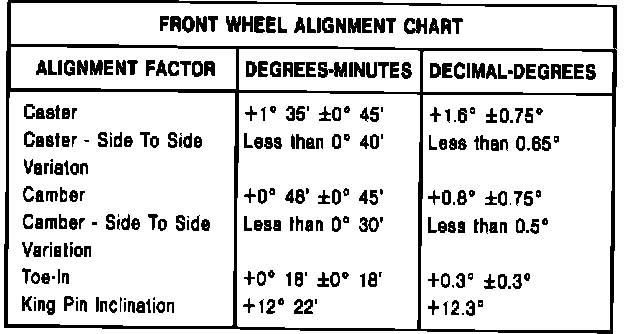

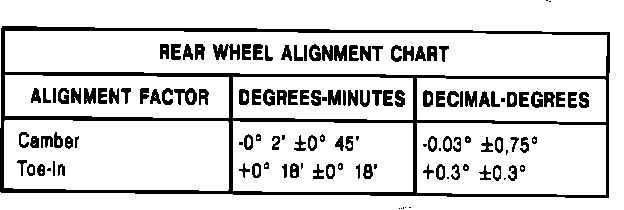

ACTION: Use the revised alignment specifications when an alignment is required. Refer to the following Front & Rear Wheel Alignment Charts.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 304000, 390000
