IC6: Refrigerant Charge-Check For Refrigerant Circulation

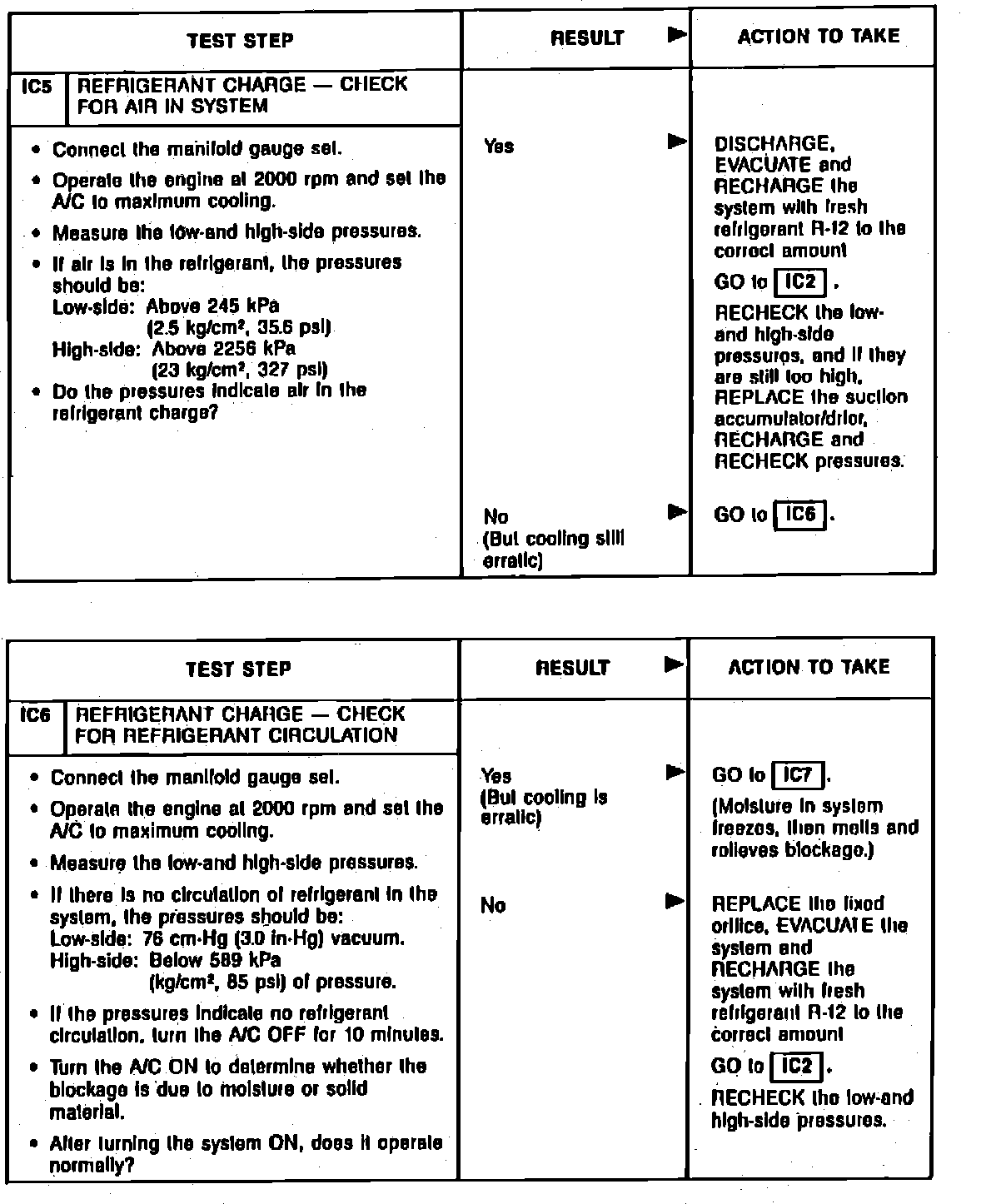

Fig. 10 Insufficient A/C cooling diagnosis (Test IC5 & IC6):
