Optional Equipment

The following equipment is optional, but helpful, in diagnosing and repairing the Electronic Engine Control (EEC-IV) system.

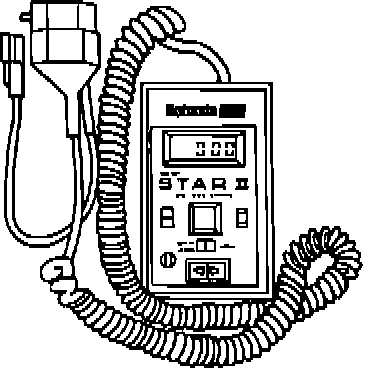

Super Star II Tester:

Super STAR II Tester (Rotunda 007-00028, or equivalent)

EEC-IV Monitor Box:

EEC-IV Monitor Box (Rotunda 007-00018, or equivalent)

EEC-IV Monitor Recorder:

EEC-IV Monitor Recorder (Rotunda 007-00021, or equivalent)

Integrated Relay Controller Module Tester:

Integrated Relay Controller Module Tester (Rotunda 007-00050, or equivalent)

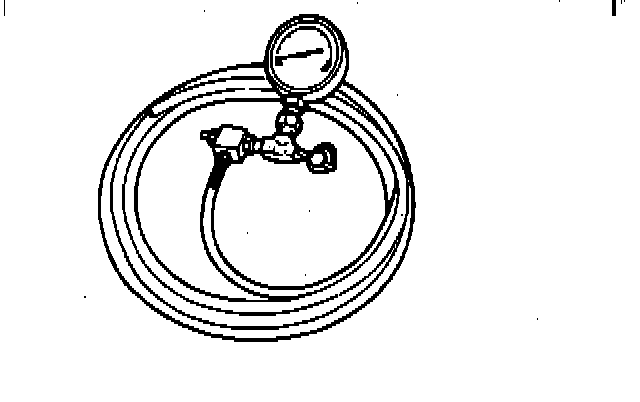

EFI Pressure Gauge:

EFI Pressure Gauge (Ford T80L-9974-A, or equivalent)

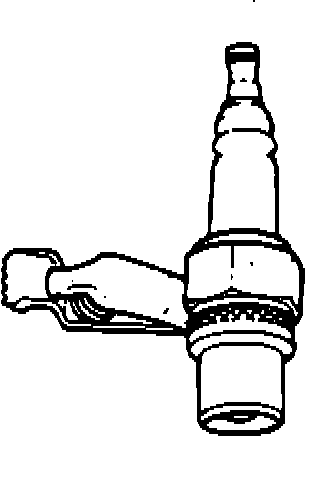

Spark Tester:

Spark Tester (Ford D81P-6666-A, or equivalent)





Timing Light (Rotunda 059-00006, or equivalent)

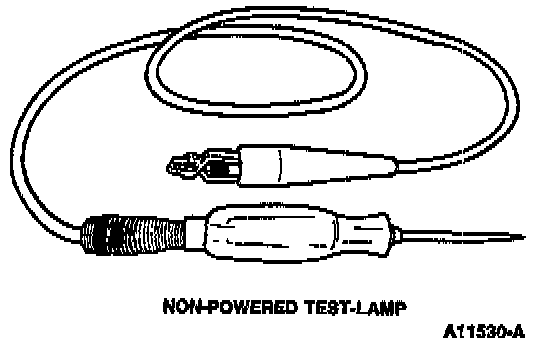

Non-Powered Test Light
