Fuel Filter: Service and Repair

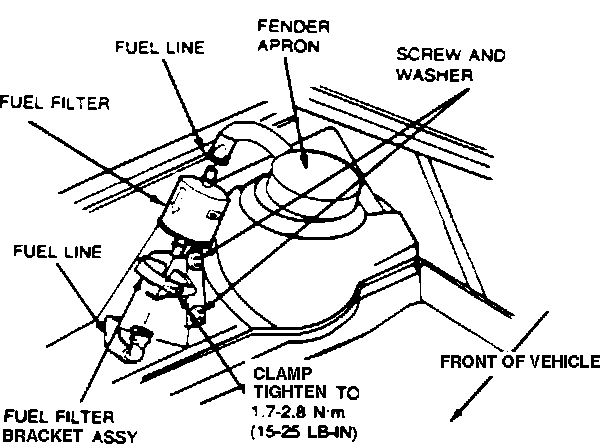

Fuel Filter Location:

REMOVAL

1. With engine OFF, relieve the fuel system pressure, refer to FUEL SYSTEM PRESSURE RELIEF.
2. Remove the push connect fittings at both ends of the filter.
3. Remove fuel filter from bracket by loosening worm gear clamp. Note the direction of the "flow" arrow as installed in the bracket to ensure proper direction of fuel flow through replacement filter.

INSTALLATION

1. Install fuel filter into the bracket, ensuring proper direction of flow.
2. Tighten worm gear clamp to 15-25 lb in (1.7-2.8 Nm).
3. Install the push connect fittings onto the filter ends and install new retainer clips.
4. Cycle ignition switch from OFF to RUN position several times, without starting engine. Check for fuel leaks.
