Part 2 of 3

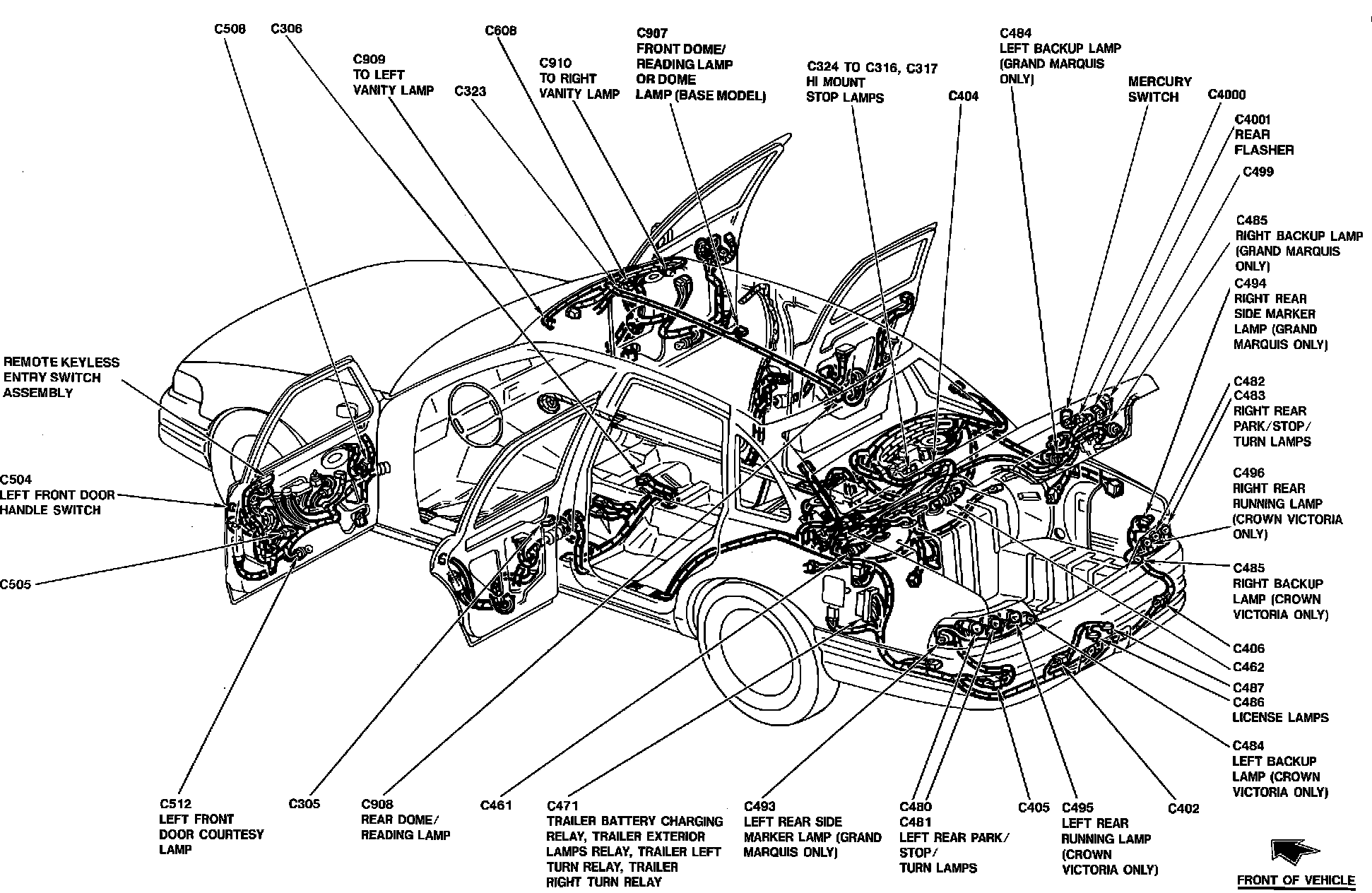

Component Locations:

FRONT DOME/READING LAMP OR DOME LAMP (BASE MODEL)
HI MOUNT STOP LAMPS
LEFT BACKUP LAMP
LEFT FRONT DOOR COURTESY LAMP
LEFT FRONT DOOR HANDLE SWITCH
LEFT REAR PARK/STOP/TURN LAMPS
LEFT REAR SIDE MARKER LAMP
LICENSE LAMPS
MERCURY SWITCH
REAR DOME/READING LAMP
REAR FLASHER
REMOTE KEYLESS ENTRY SWITCH ASSEMBLY
RIGHT BACKUP LAMP
RIGHT REAR PARK/STOP/TURN LAMPS
RIGHT REAR SIDE MARKER LAMP
TO LEFT VANITY LAMP
TO RIGHT VANITY LAMP
TRAILER BATTERY CHARGING RELAY
TRAILER EXTERIOR LAMPS RELAY
TRAILER LEFT TURN RELAY
TRAILER RIGHT TURN RELAY
