Grand Marquis V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Dashboard / Instrument Panel
Dashboard / Instrument Panel

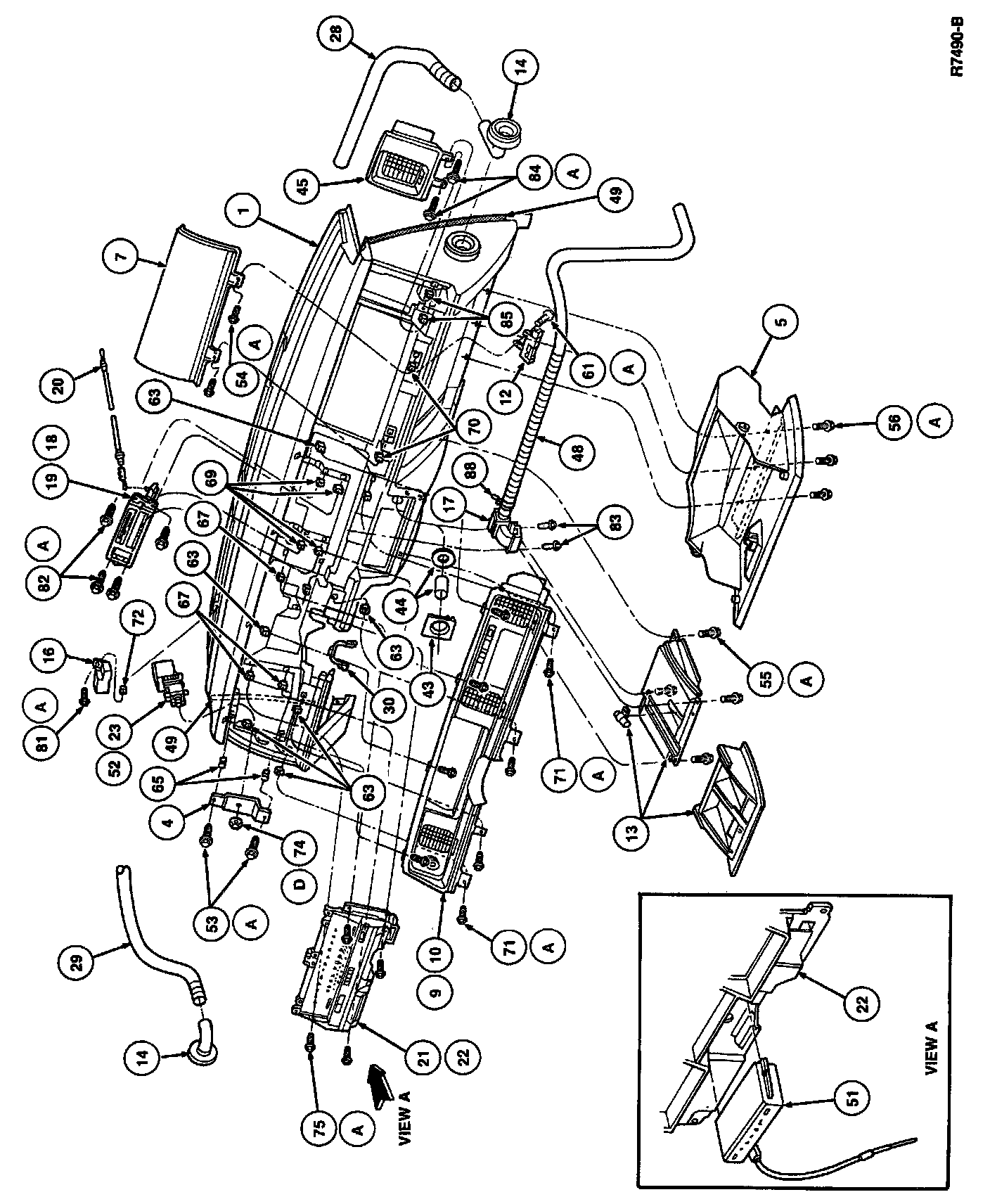

Front View:

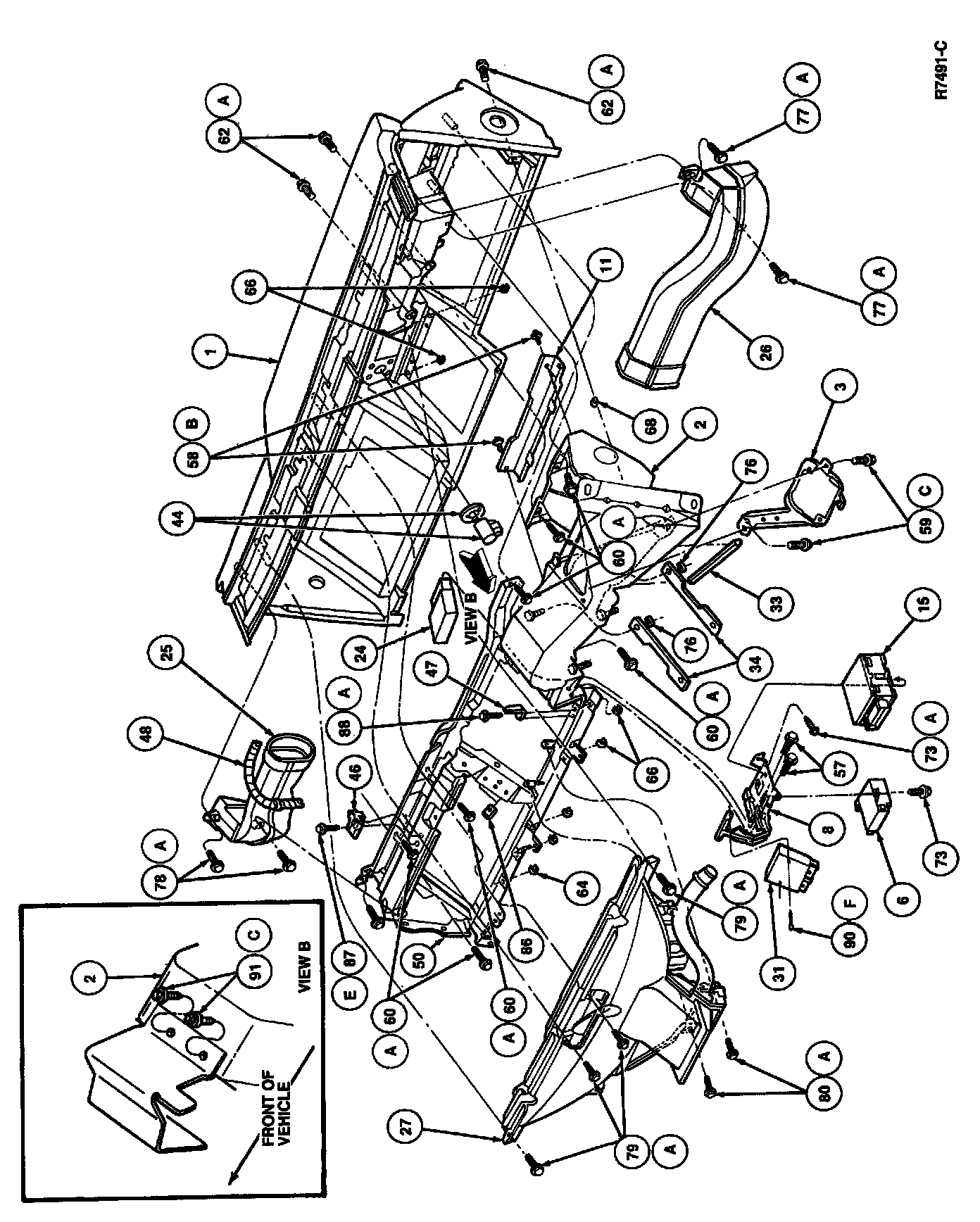

Rear View:

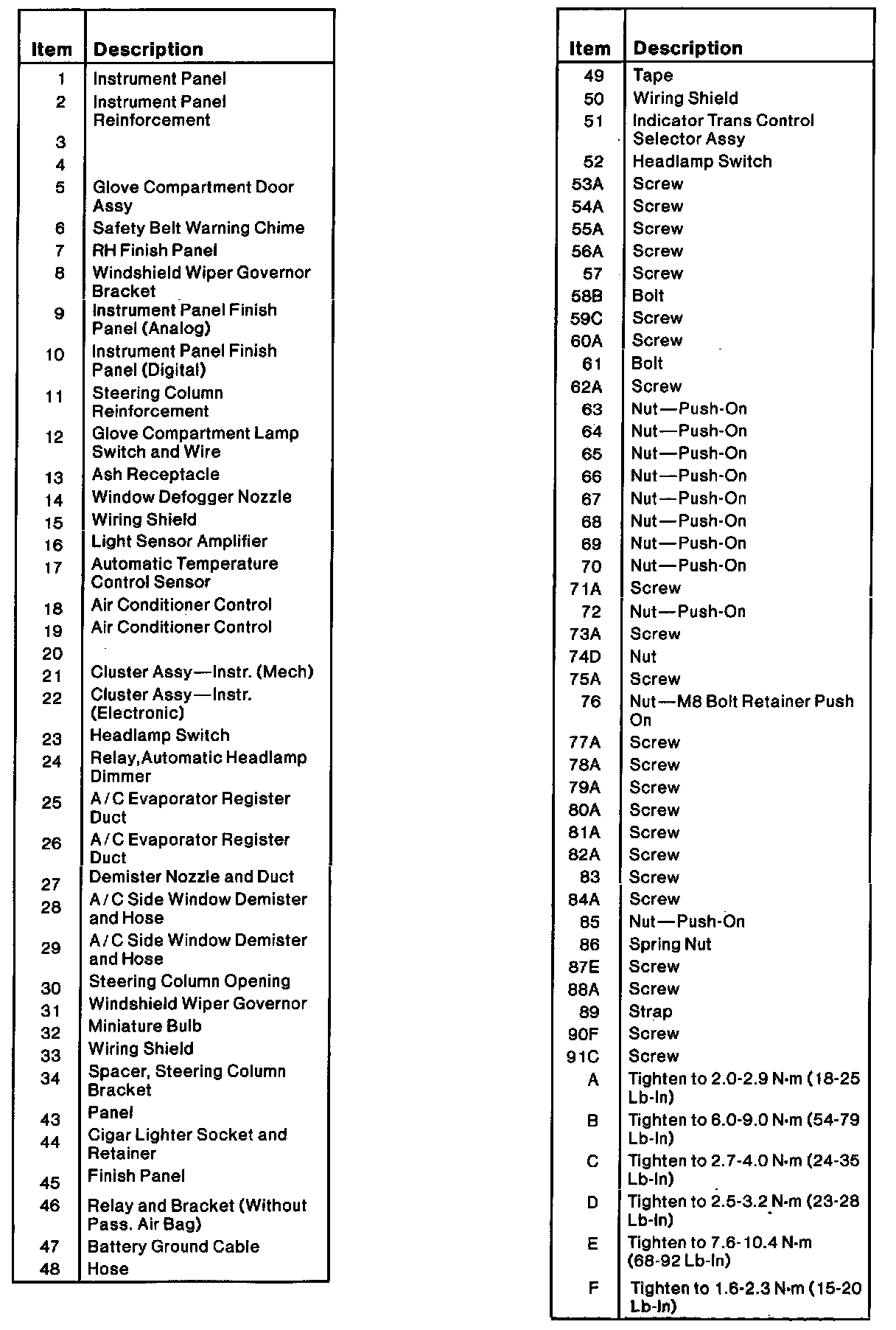

Index:
