Engine Compartment Views

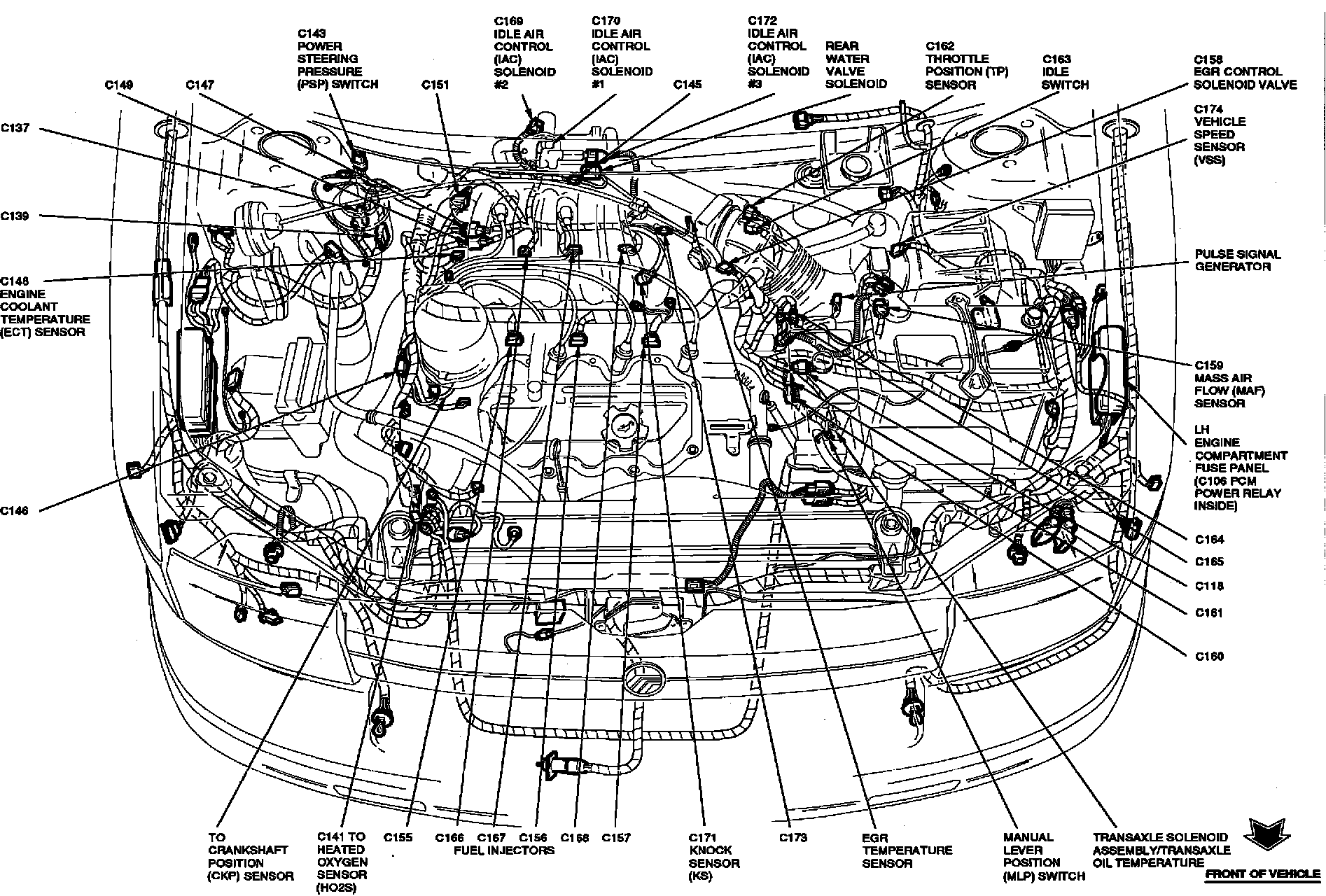

Component Locations:

CRANKSHAFT POSITION (CKP) SENSOR
EGR CONTROL SOLENOID VALVE
EGR TEMPERATURE SENSOR
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
FUEL INJECTORS
HEATED OXYGEN SENSOR (HO2S)
IDLE AIR CONTROL (IAC) SOLENOID #1
IDLE AIR CONTROL (IAC) SOLENOID #2
IDLE AIR CONTROL (IAC) SOLENOID #3
IDLE SWITCH
KNOCK SENSOR (KS)
LH ENGINE COMPARTMENT FUSE PANEL
MANUAL LEVER POSITION (MLP) SWITCH
MASS AIR FLOW (MAF) SENSOR
PCM POWER RELAY
POWER STEERING PRESSURE (PSP) SWITCH
PULSE SIGNAL GENERATOR
REAR WATER VALVE SOLENOID
THROTTLE POSITION (TP) SENSOR
TRANSAXLE SOLENOID ASSEMBLY/TRANSAXLE OIL TEMPERATURE
VEHICLE SPEED SENSOR (VSS)

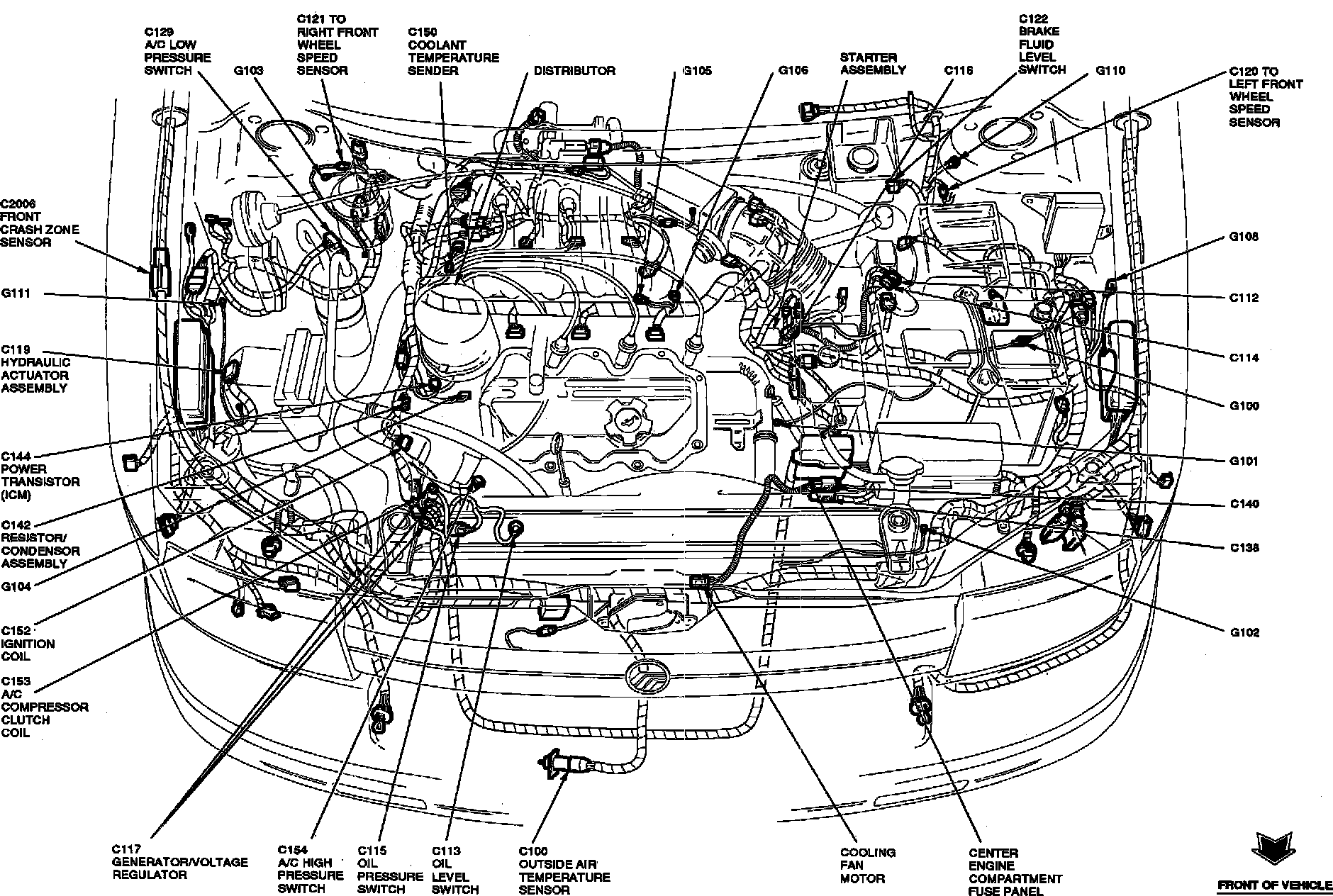

Component Locations:

A/C COMPRESSOR CLUTCH COIL
A/C HIGH PRESSURE SWITCH
A/C LOW PRESSURE SWITCH
BRAKE FLUID LEVEL SWITCH
CENTER ENGINE COMPARTMENT FUSE PANEL
COOLANT TEMPERATURE SENDER
COOLING FAN MOTOR
DISTRIBUTOR
FRONT CRASH ZONE SENSOR
GENERATOR/VOLTAGE REGULATOR
HYDRAULIC ACTUATOR ASSEMBLY
IGNITION COIL
LEFT FRONT WHEEL SPEED SENSOR
OIL LEVEL SWITCH
OIL PRESSURE SWITCH
OUTSIDE AIR TEMPERATURE SENSOR
POWER TRANSISTOR (ICM)
RESISTOR/CONDENSER ASSEMBLY
RIGHT FRONT WHEEL SPEED SENSOR
STARTER ASSEMBLY

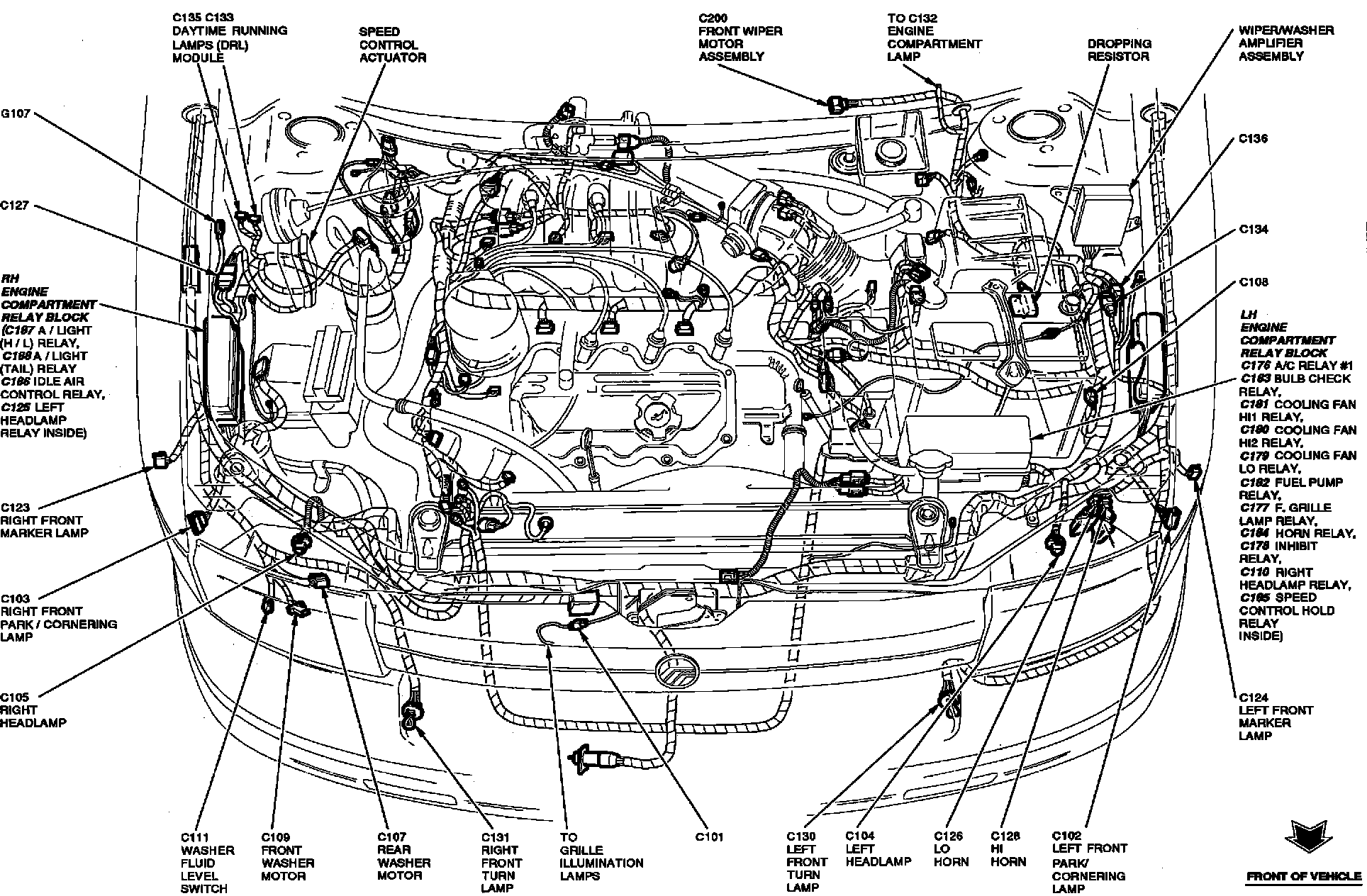

Component Locations:

A/LIGHT (H/L) RELAY
A/LIGHT (TAIL) RELAY
BULB CHECK RELAY
COOLING FAN HI-1 RELAY
COOLING FAN HI-2 RELAY
COOLING FAN LO RELAY
DAYTIME RUNNING LAMPS (DRL) MODULE
DROPPING RESISTOR
ENGINE COMPARTMENT LAMP
Front GRILLE LAMP RELAY
FRONT WASHER MOTOR
FRONT WIPER MOTOR ASSEMBLY
FUEL PUMP RELAY
GRILLE ILLUMINATION LAMPS
HI HORN
HORN RELAY
IDLE AIR CONTROL RELAY
INHIBIT RELAY
LEFT FRONT MARKER LAMP
LEFT FRONT PARK/CORNERING LAMP
LEFT FRONT TURN LAMP
LEFT HEADLAMP
LEFT HEADLAMP RELAY
LH ENGINE COMPARTMENT RELAY BLOCK
LO HORN
REAR WASHER MOTOR
RH ENGINE COMPARTMENT RELAY BLOCK
RIGHT FRONT MARKER LAMP
RIGHT FRONT PARK/CORNERING LAMP
RIGHT FRONT TURN LAMP
RIGHT HEADLAMP
RIGHT HEADLAMP RELAY
SPEED CONTROL ACTUATOR
SPEED CONTROL HOLD RELAY
WASHER FLUID LEVEL SWITCH
WIPER/WASHER AMPLIFIER ASSEMBLY
