Idle Up Control Relay: Locations

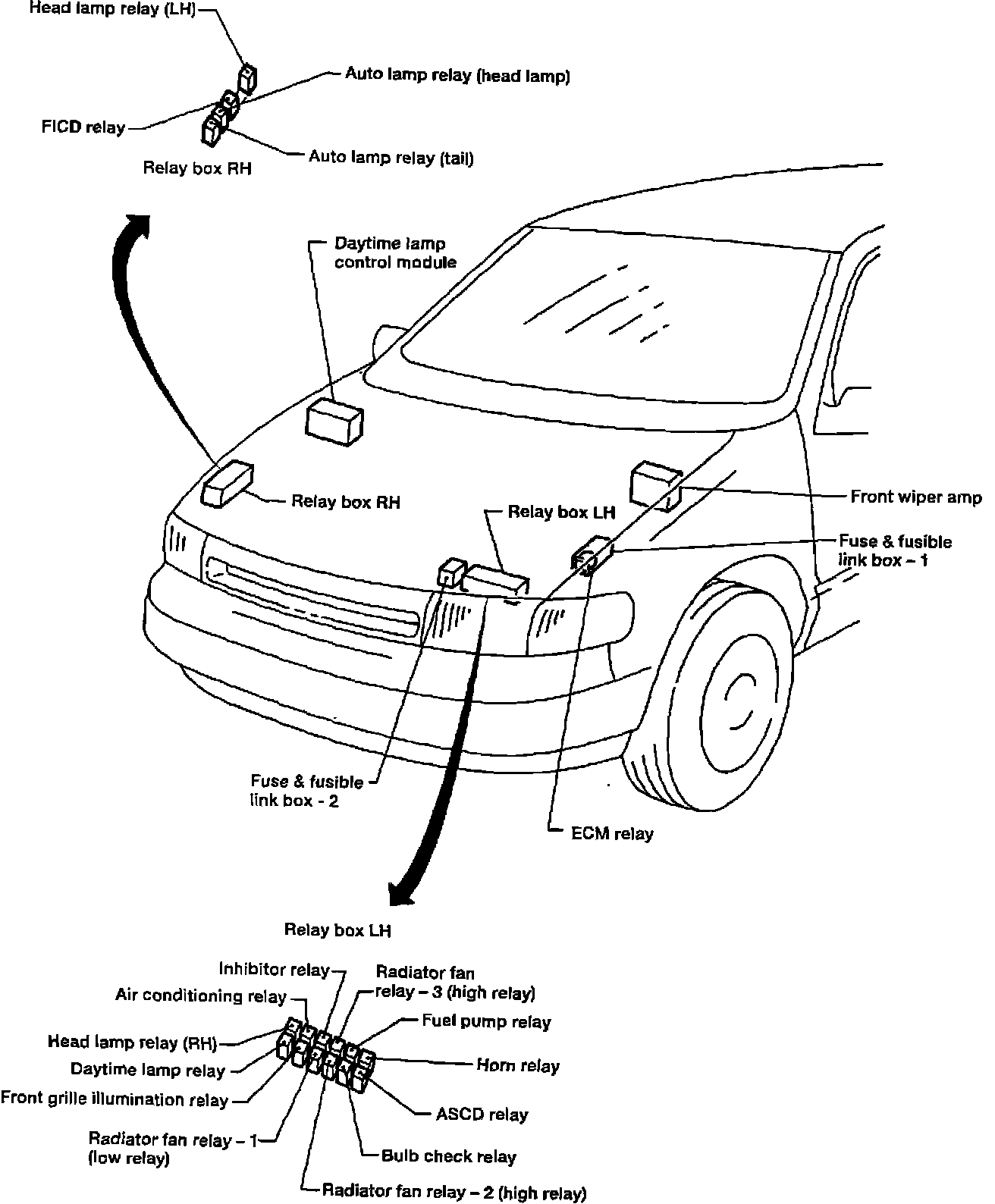

Relay And Fuse Link Component Locations:
FICD RELAY
In the relay box, on R.H. fender apron.
