Engine Controls

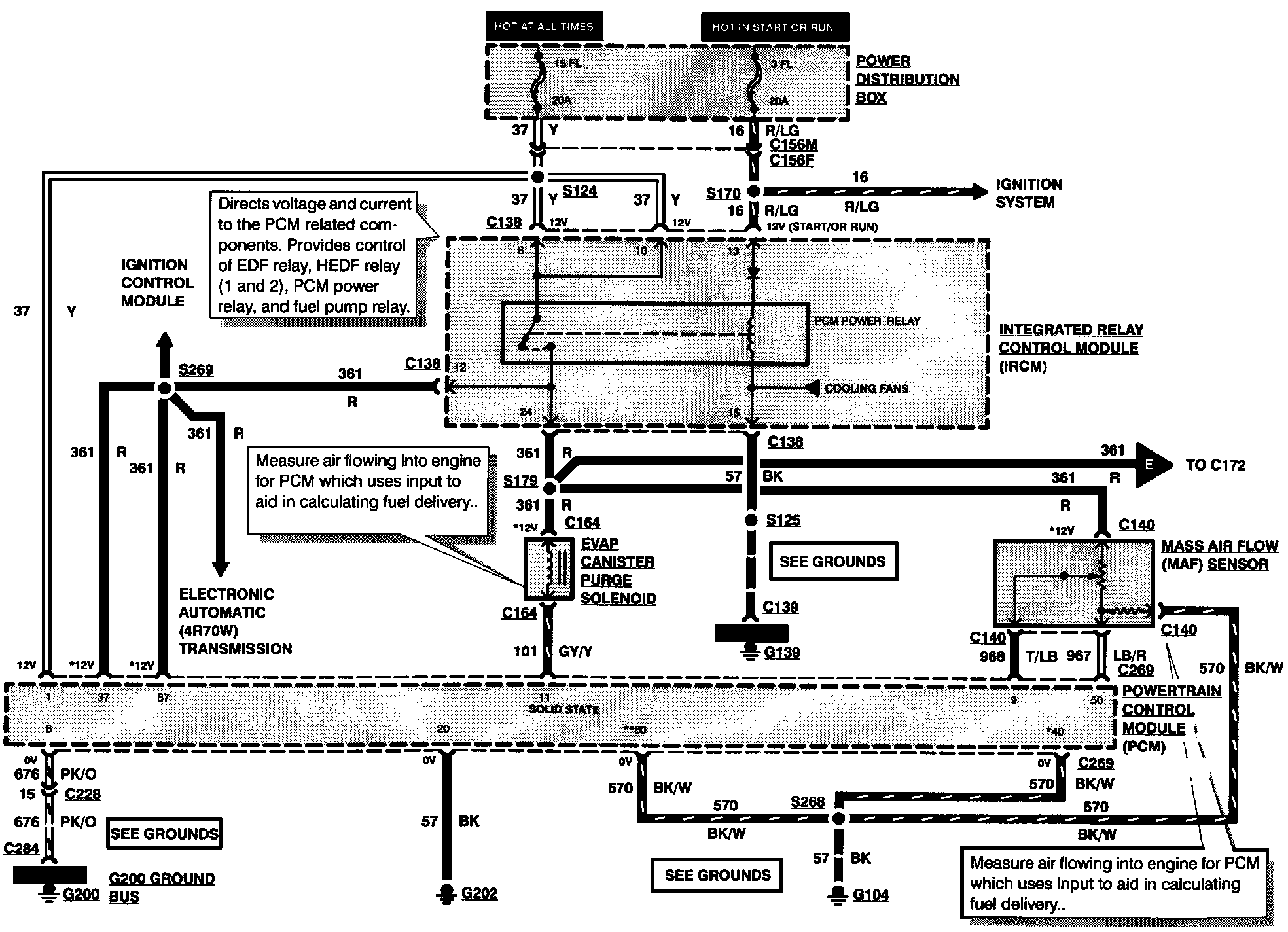

Electronic Engine Control (Part 1 Of 6):

EVAPORATIVE EMISSIONS CANISTER PURGE SOLENOID
MASS AIR FLOW SENSOR
PCM POWER RELAY

Electronic Engine Control (Part 2 Of 6):

EGR VACUUM REGULATOR SOLENOID
FUEL INJECTORS
IDLE AIR CONTROL VALVE
VEHICLE SPEED SENSOR

Electronic Engine Control (Part 3 Of 6):

ENGINE COOLANT TEMPERATURE SENSOR
INTAKE AIR TEMPERATURE SENSOR
PRESSURE FEEDBACK EGR SENSOR
THROTTLE POSITION SENSOR

Electronic Engine Control (Part 4 Of 6):

CAMSHAFT POSITION SENSOR
HEATED OXYGEN SENSOR #1
HEATED OXYGEN SENSOR #2
OCTANE ADJUST PLUG

Electronic Engine Control (Part 5 Of 6):

FUEL PUMP RELAY
INERTIA FUEL SHUTOFF SWITCH
PARK/NEUTRAL POSITION SWITCH

Electronic Engine Control (Part 6 Of 6):
