49 State

REMOVAL
1. Disconnect engine control sensor wiring connector from ignition coil and radio ignition interference capacitor.

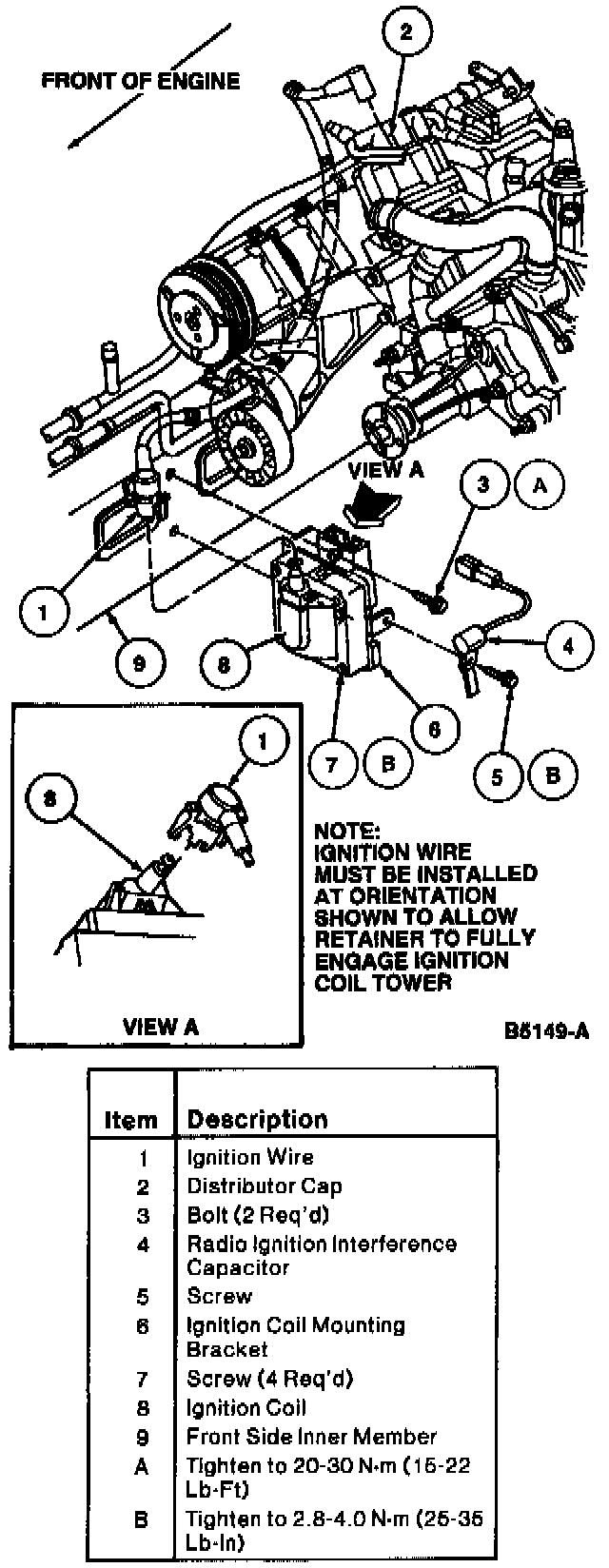

Ignition Coil And Bracket Assembly:

2. Disconnect ignition wires from ignition coil.
3. Remove ignition coil mounting bracket retaining bolts and ignition coil mounting bracket from front side inner member.
4. Remove ignition coil-to-bracket retaining screws and ignition coil.
5. Remove radio ignition interference capacitor retaining screw and radio ignition interference capacitor from ignition coil mounting bracket.

INSTALLATION
1. To install, reverse removal procedure.
2. Tighten radio ignition interference capacitor and ignition coil retaining screws to 2.8-4.0 Nm (25-35 in lb).
3. Tighten ignition coil mounting bracket-to-front side inner member bolts to 20-30 Nm (15-22 ft lb).
