B2 Check LH Rear Sensor to Ground







- Disconnect LH rear brake anti-lock sensor plug.

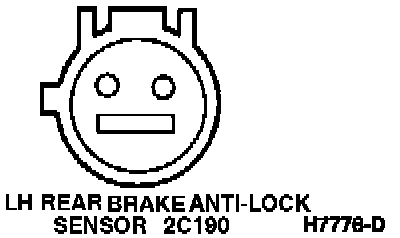

Sensor Plug Terminals:





- Check for continuity between each rear brake anti-lock sensor pin (sensor side) and vehicle ground.

- Is continuity present?

YES -- Replace LH rear brake anti-lock sensor.

NO -- Service cable harness circuit 518 or 519.
