Mercury
>>
1995
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heated Glass Element
>>
System Diagram
System Diagram

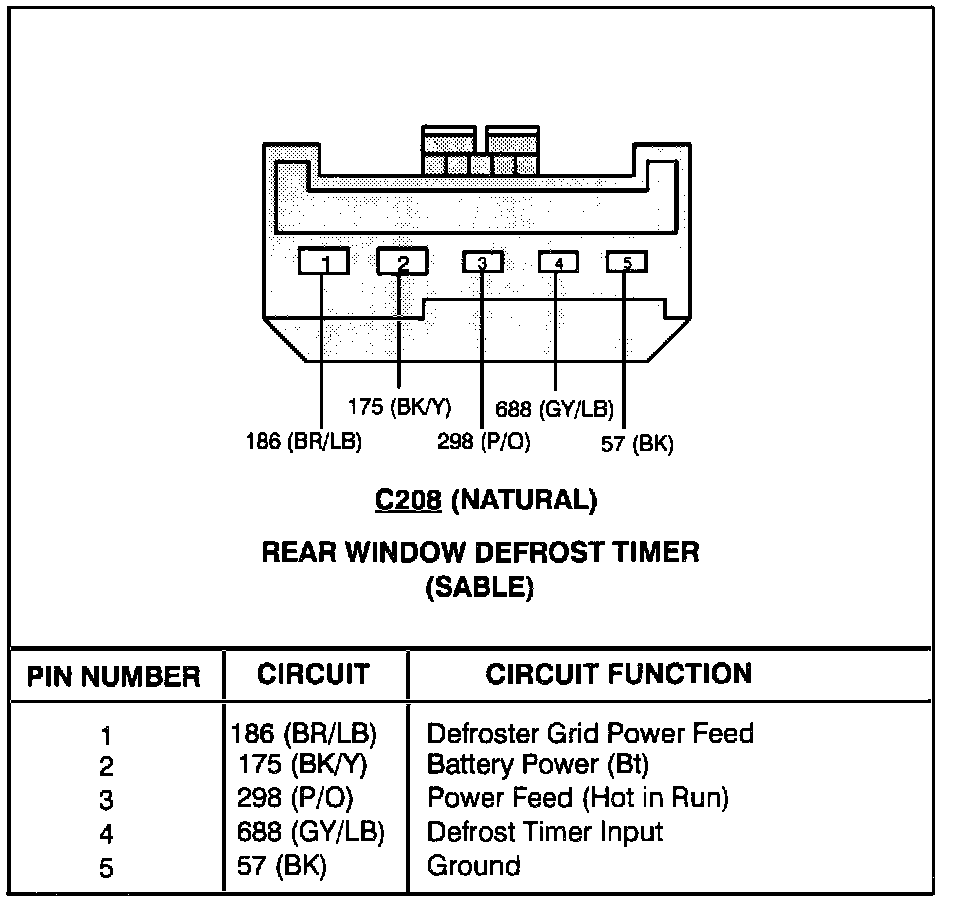

Rear Window Defrost Timer:
