Mercury
>>
1995
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
Passenger's Seat Control Switch
Passenger's Seat Control Switch

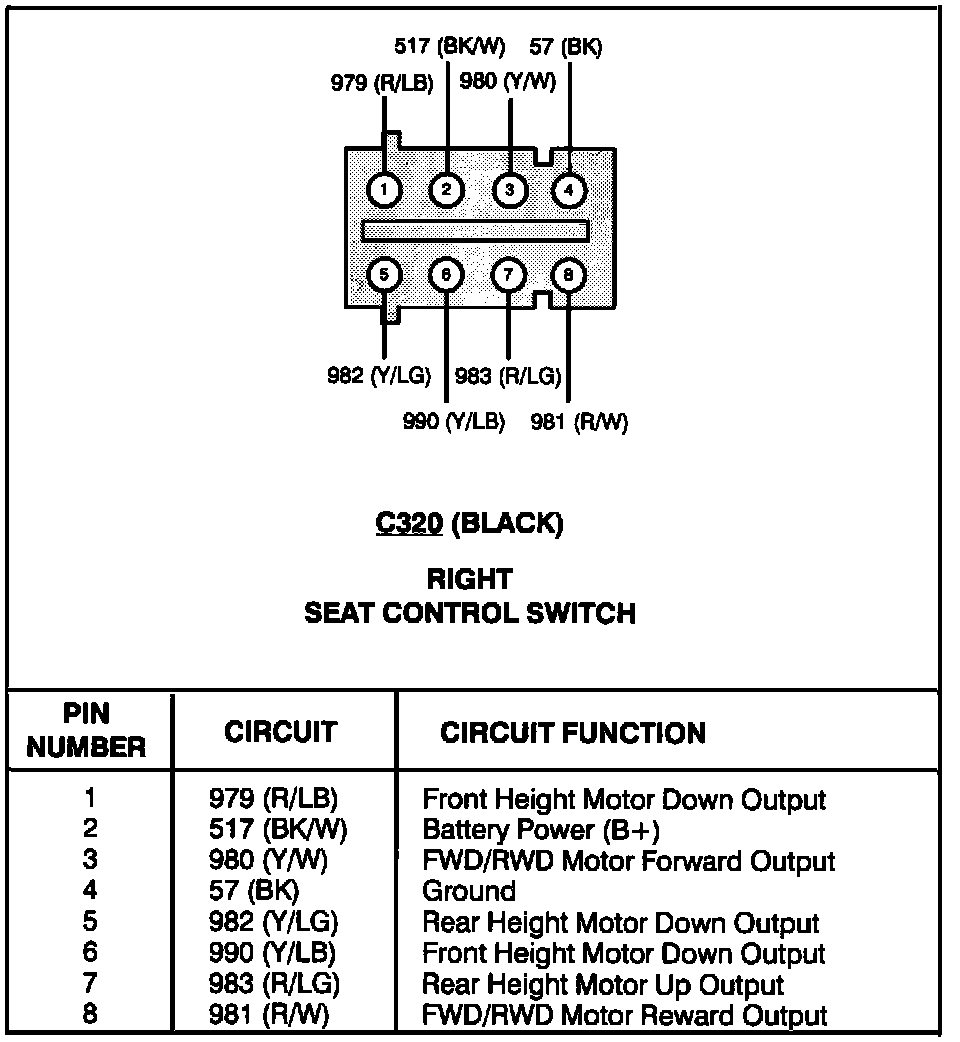

Right Seat Control Switch:
