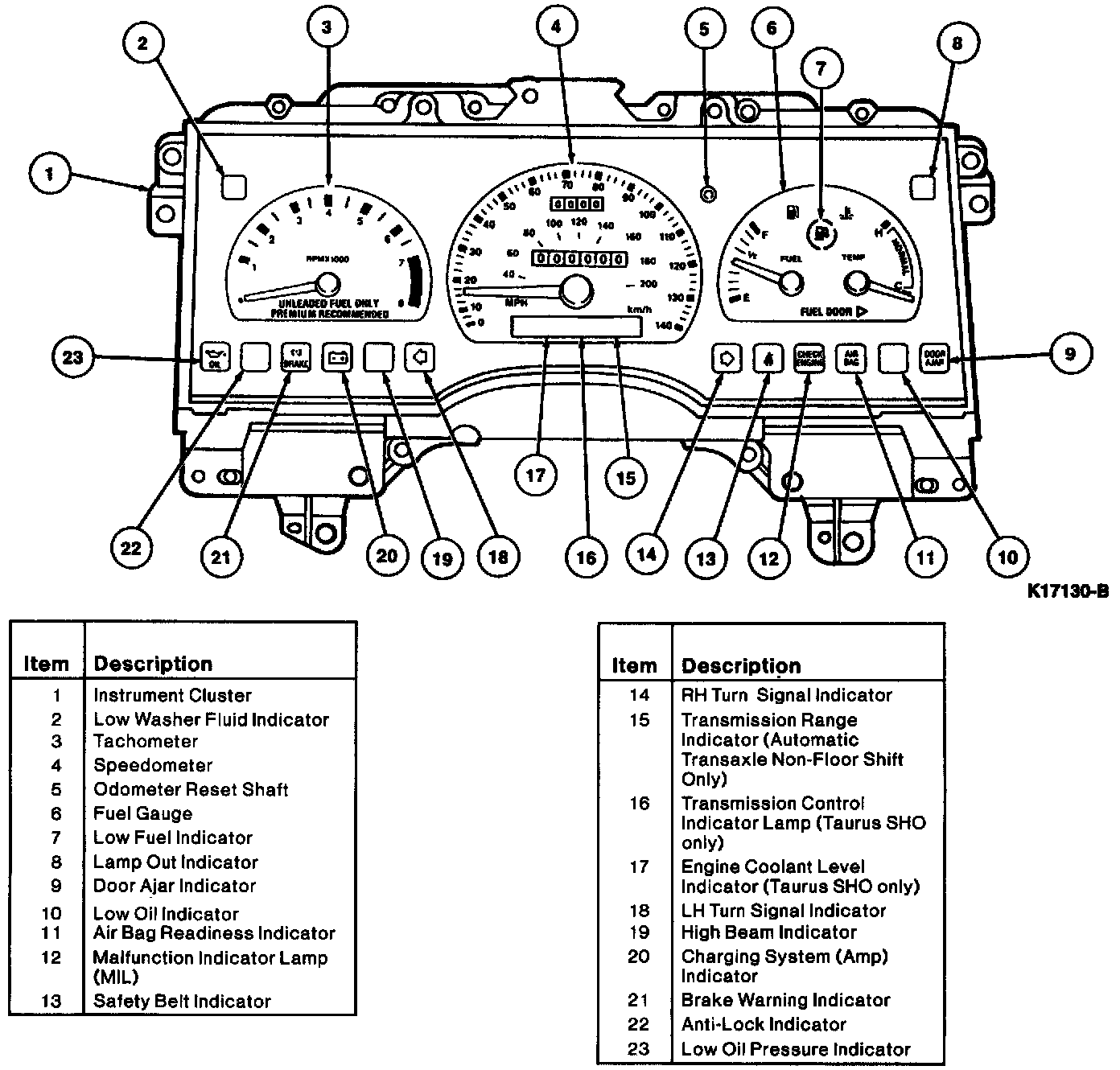

Instrument Cluster

The conventional instrument cluster contains:






1. Engine coolant temperature gauge.
2. Tachometer.
3. Speedometer.
4. Fuel gauge.
5. Warning indicators.
6. Odometer reset shaft.
7. Transmission range indicator (automatic transaxle only).
Instrument cluster illumination is controlled by the instrument panel dimmer switch, located on the LH side of the instrument cluster. Instrument cluster will not illuminate when the headlamp switch is in the OFF position.
