Mercury
>>
1995
>>
Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C2006
C2006

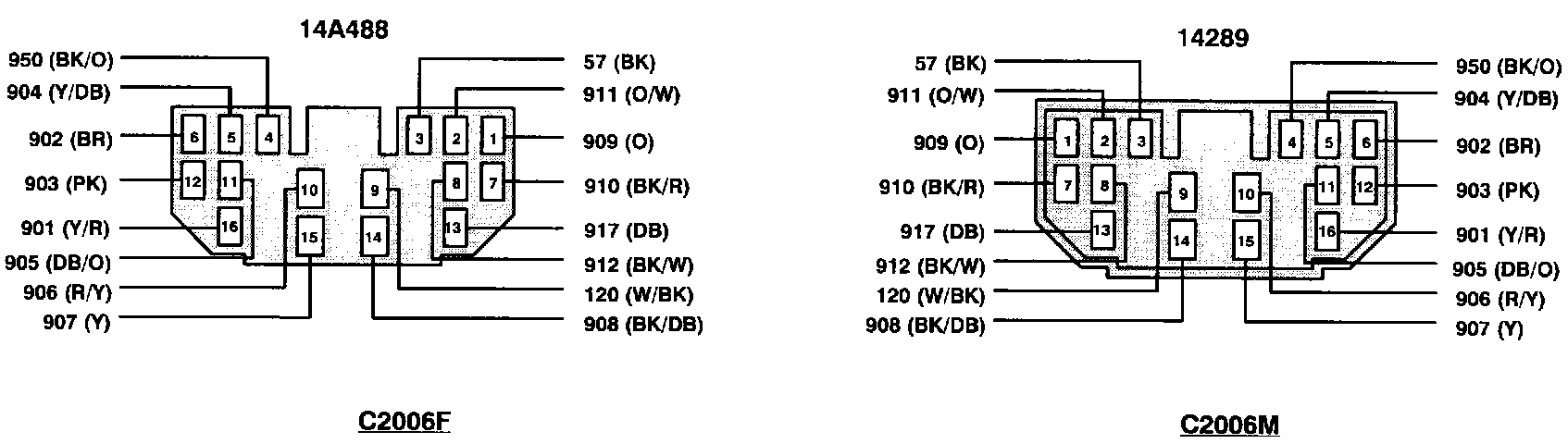

In Line Connector Faces - C2006:
