Base Level

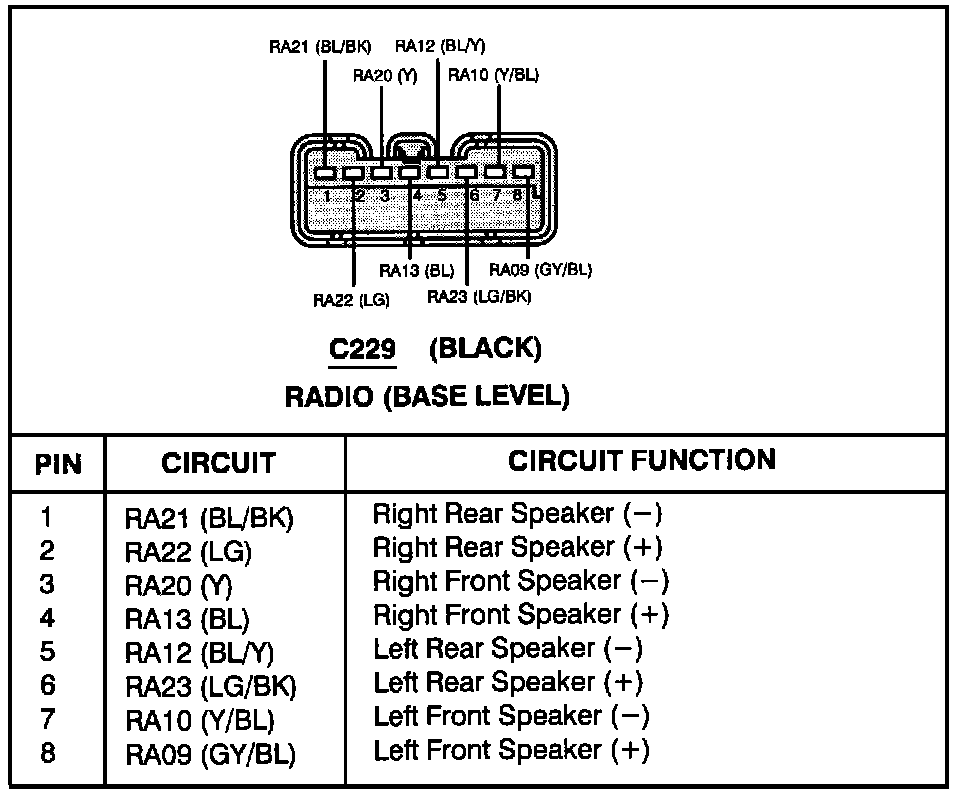

Radio (Base Level) (C229):

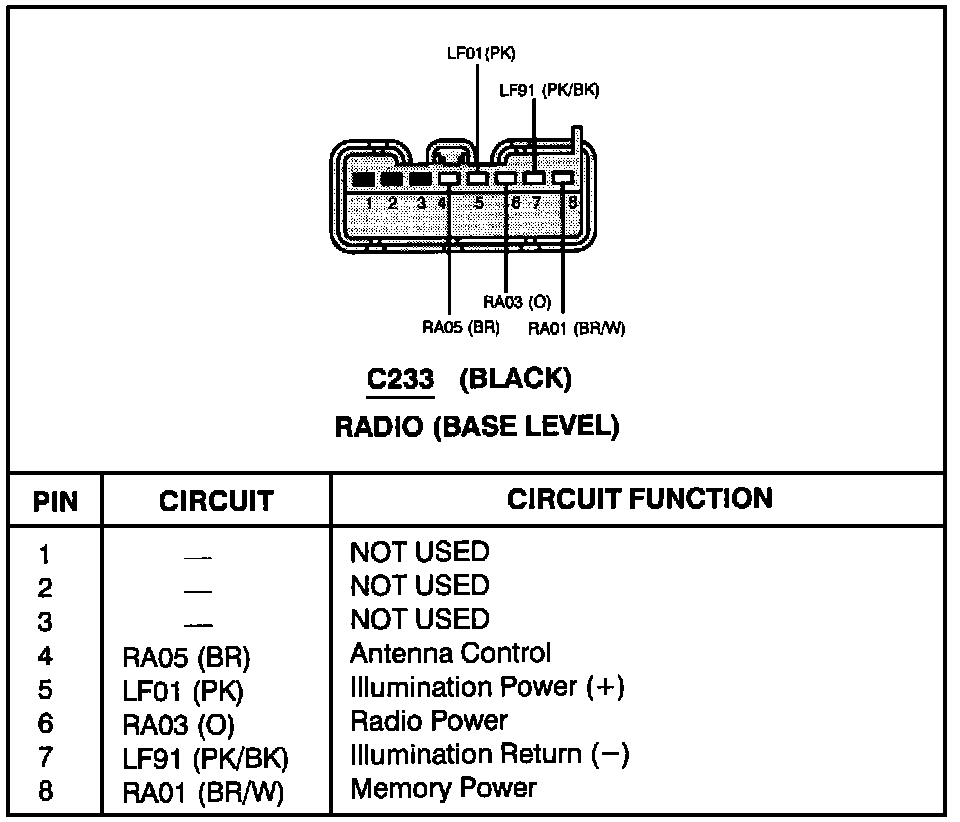

Radio (Base Level) (C233):

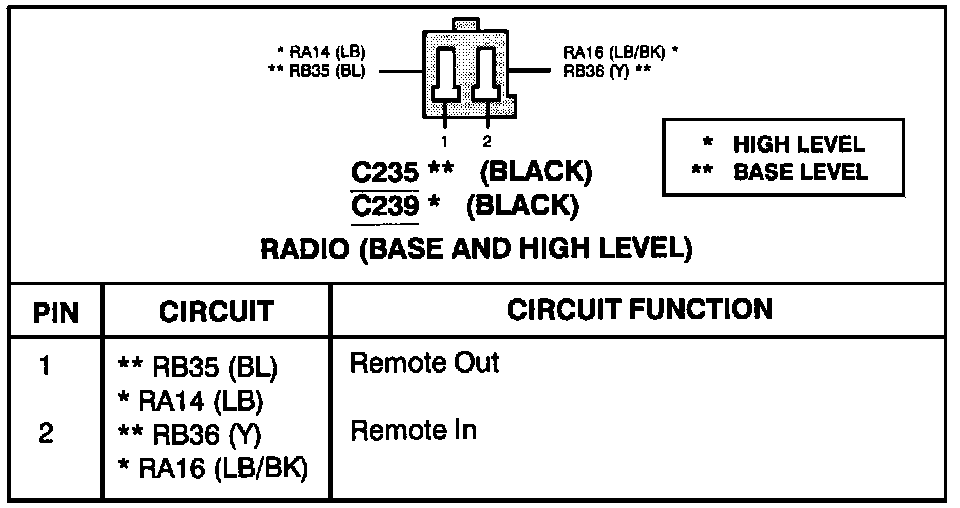

Radio (Base And High Level) (C235,C239):

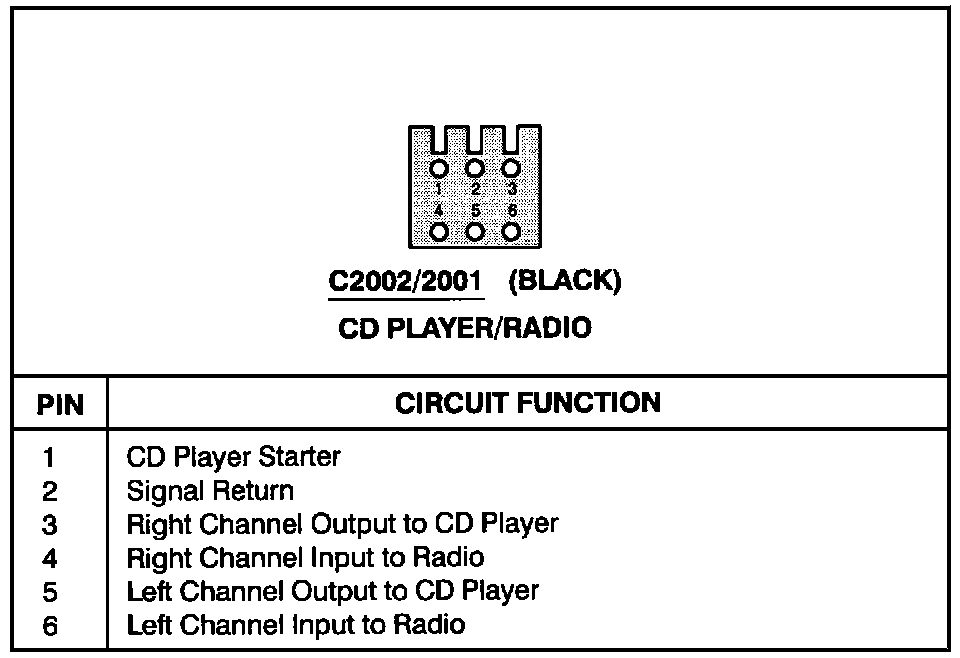

Compact Disc Player/Radio (C2002/2001):
