Mercury
>>
1996
>>
Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C2010
C2010

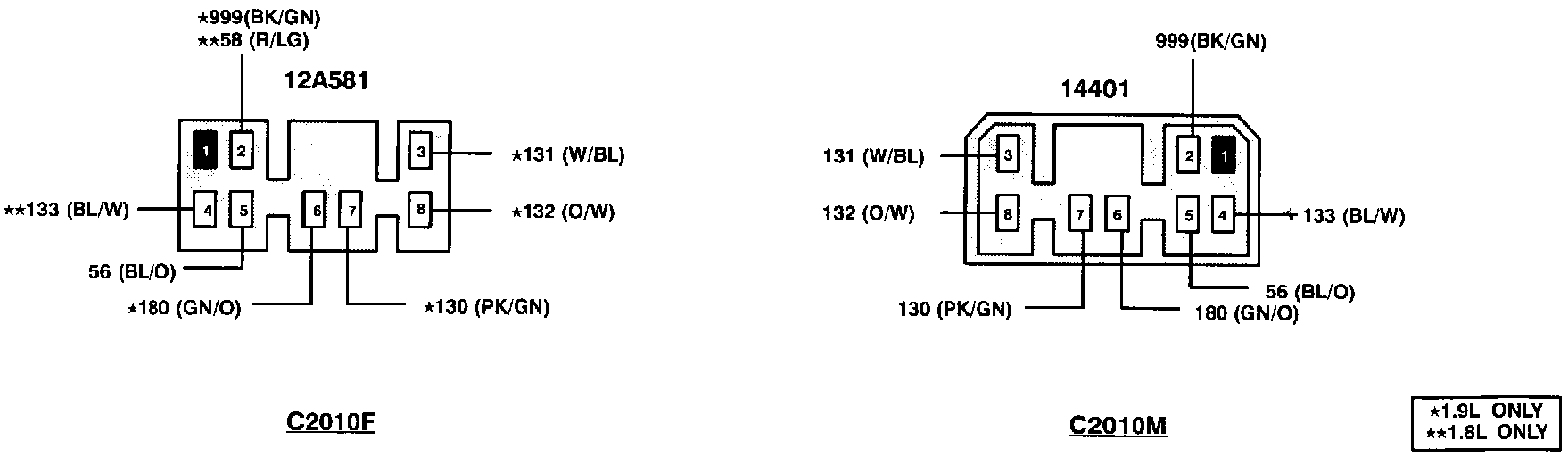

In-Line Connector Faces - C2010:
