Home >> Mercury >> 1996 >> Villager V6-181 3.0L SOHC >> Repair and Diagnosis >> Cruise Control >> Cruise Control Relay >> Diagrams

Cruise Control Relay: Diagrams

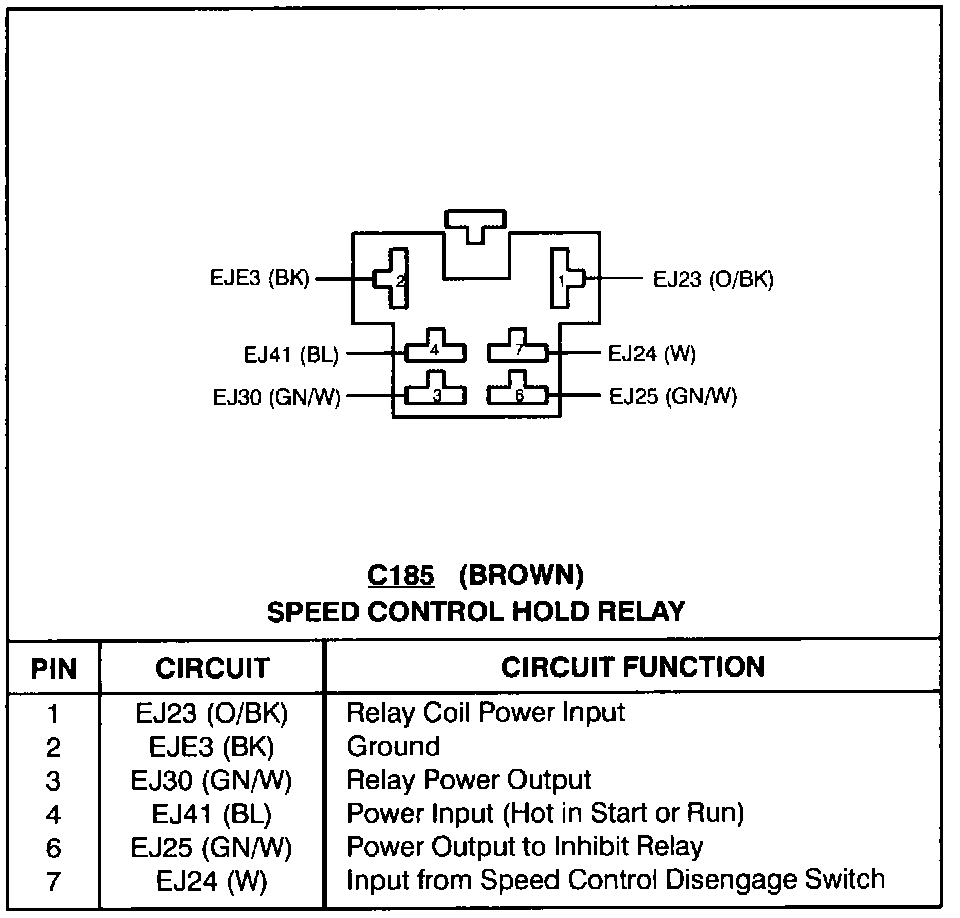

Speed Control Hold Relay (C185):
