Main (Front)

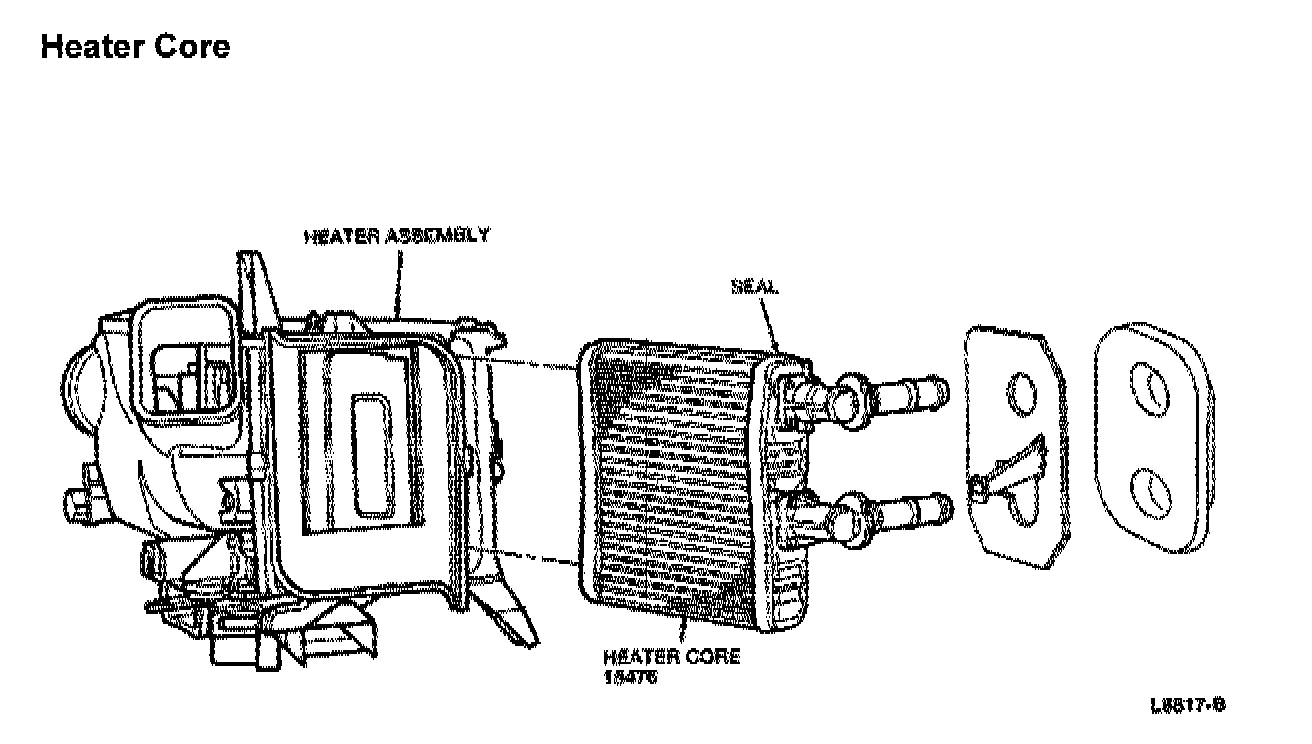

Removal 1.
Remove the heater assembly from the vehicle.
Service and Repair 2.
Remove the two screws from the heater pipe plate and remove the plate from the heater assembly.
3.
Remove the
heater core retainer.
4.
Remove the
heater core (18476) from the heater assembly.
Installation To install, reverse the removal procedure.
