Ignition Switch Continuity Test

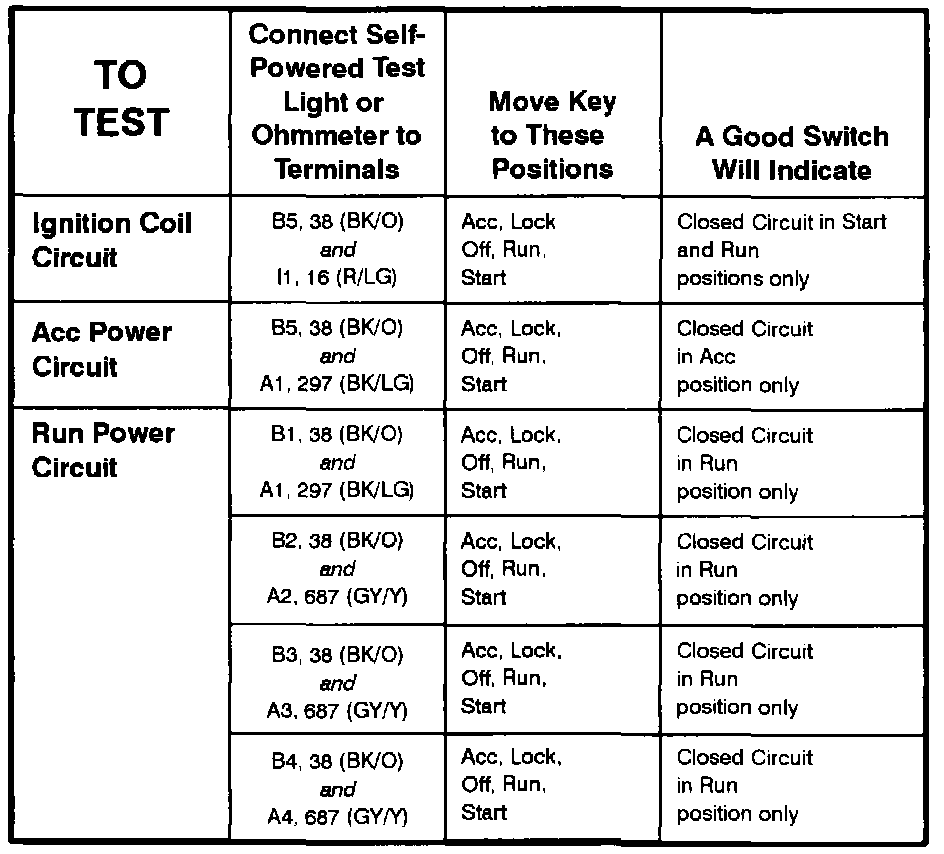

Ignition Switch - Component Testing Procedure (Part 1 Of 2):

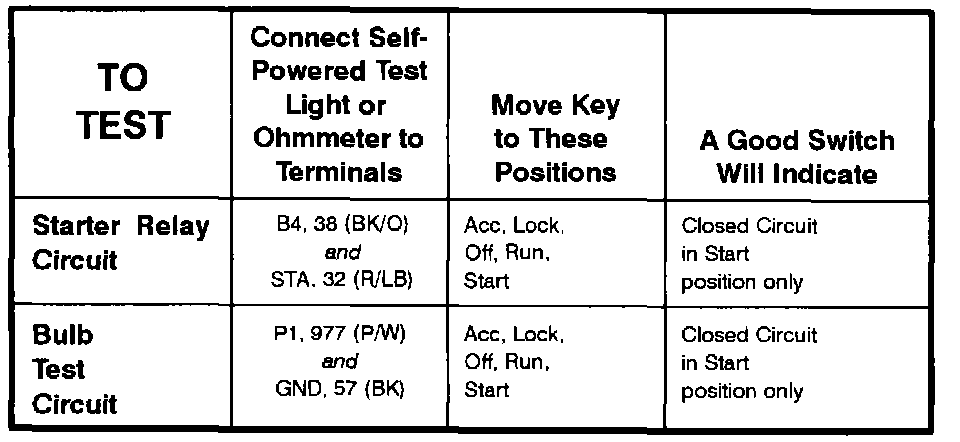

Ignition Switch - Component Testing Procedure (Part 2 Of 2):




Ignition Switch - Terminal Locations:

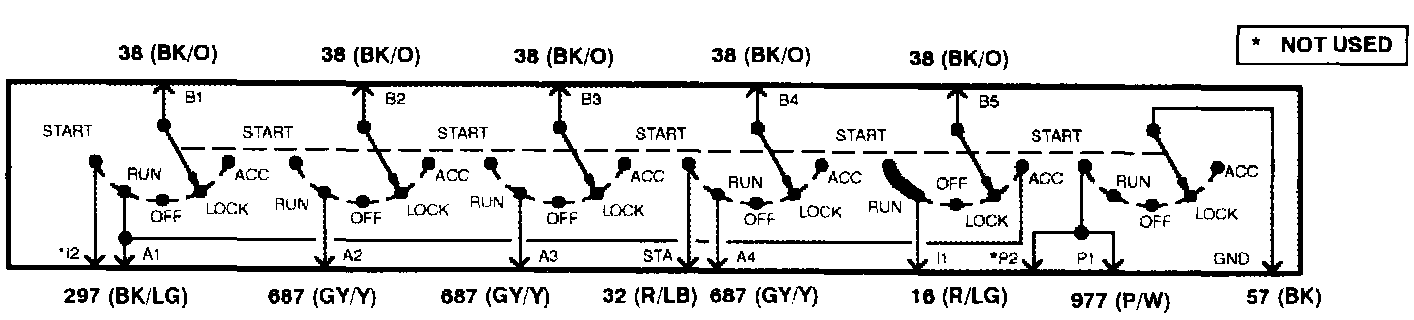

Ignition Switch - Schematic:
