Roof Opening Panel Frame

REMOVAL
1. Remove the headliner.







2. Disconnect the roof opening panel motor electrical connector.

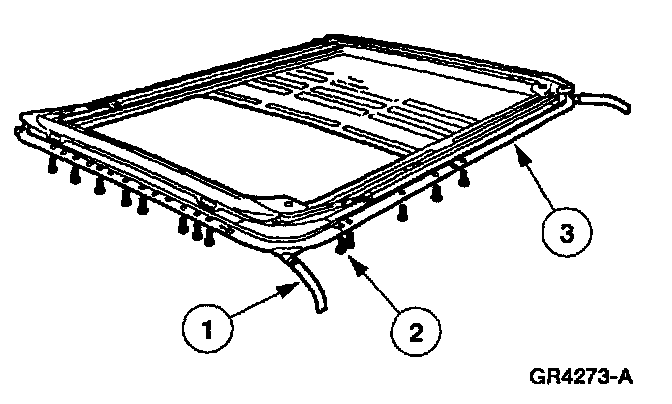

3. Remove the roof opening panel frame.
1. Disconnect the four drain hoses.
2. Remove the eighteen screws.
3. Remove the roof opening panel frame.

INSTALLATION







1. To install, reverse the removal procedure.
